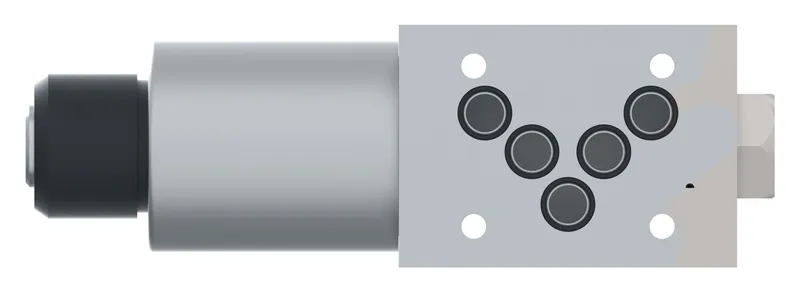

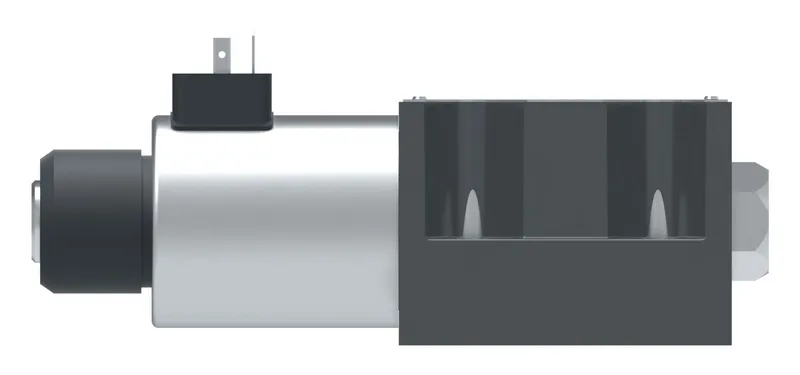

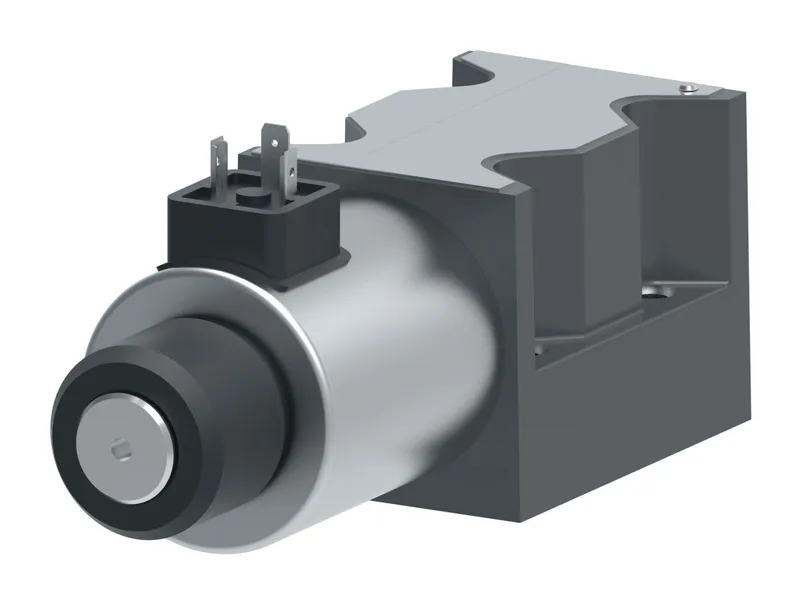

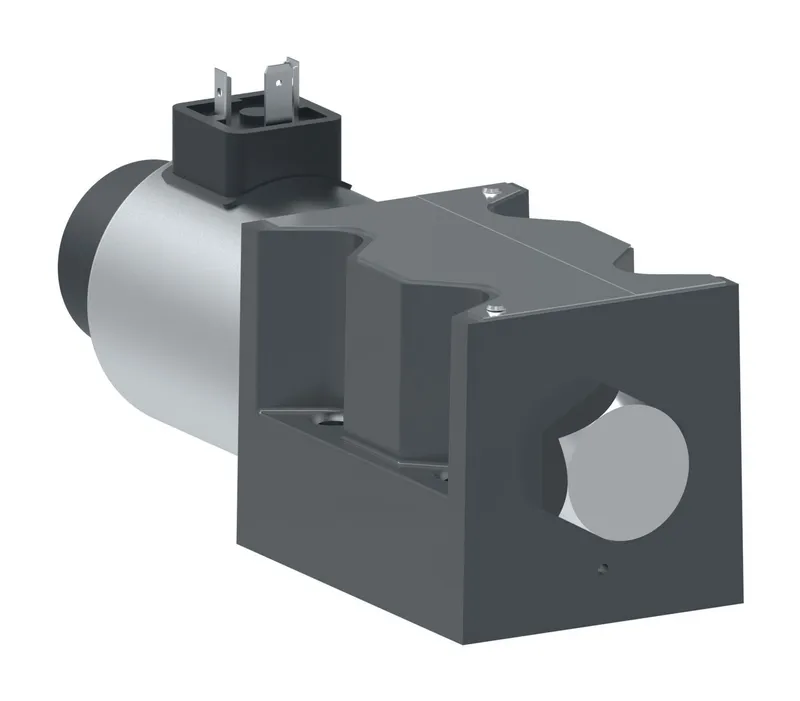

Danfoss 02-311817

KTG4V 5 2B50N M U H7 30, KTG4V52B50NMUH730

MPN: 02-311817
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-311817?

Danfoss KTG4V 5 2B50N M U H7 30, KTG4V52B50NMUH730, manufacturer part number 02-311817. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
B Port flow LPM	50.00
B Port flow USGPM	13.20
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	30 Series
Electrical Connection	ISO 4400 (DIN 43650) connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	Plain
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KTG4V52B50NMUH730
On board electronics	No
Performance	Standard
Product height in	4.180
Product height mm	106.172
Product length in	7.660
Product length mm	194.564
Product width in	2.760
Product width mm	70.104
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional throttle
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
