Danfoss 02-311673

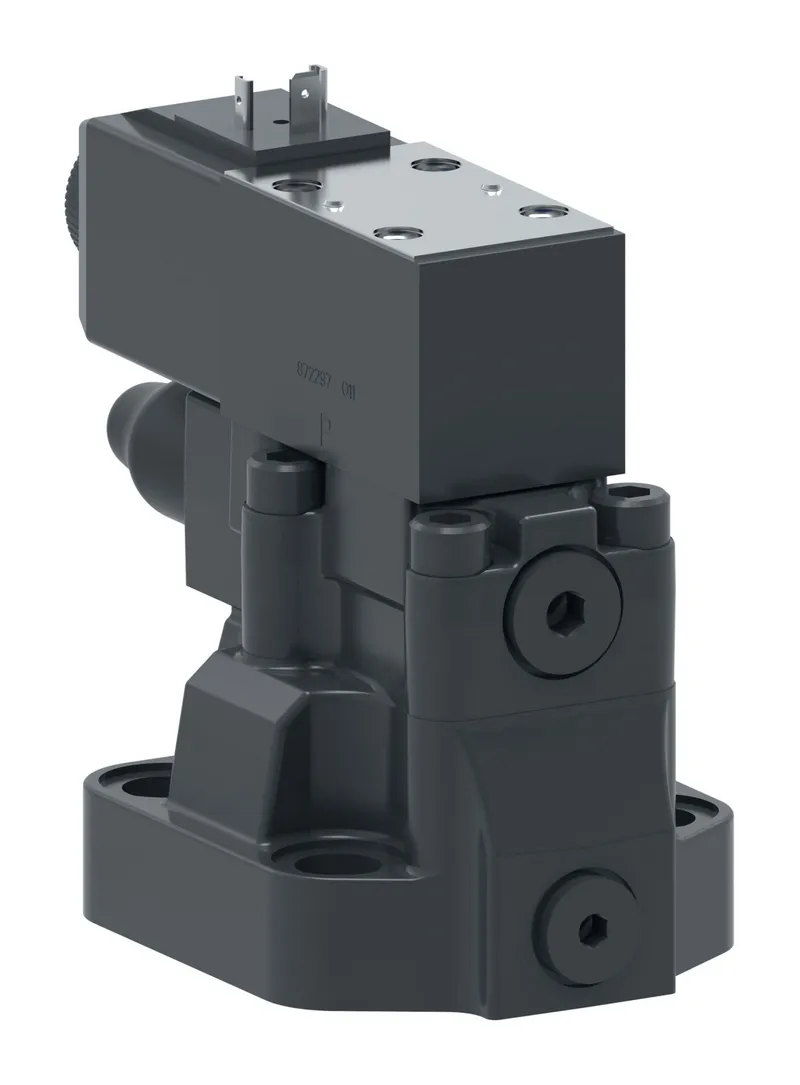

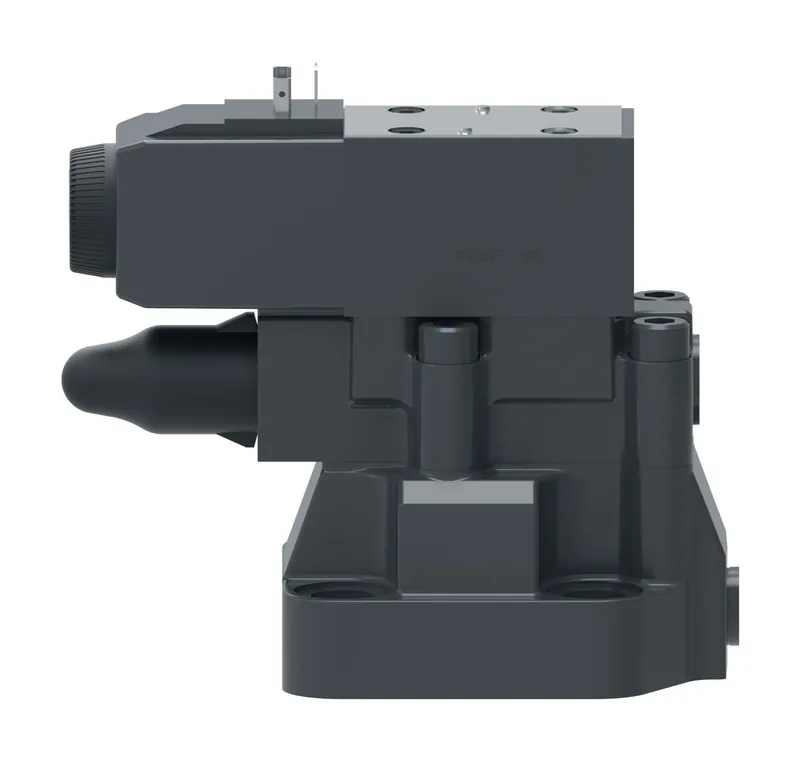

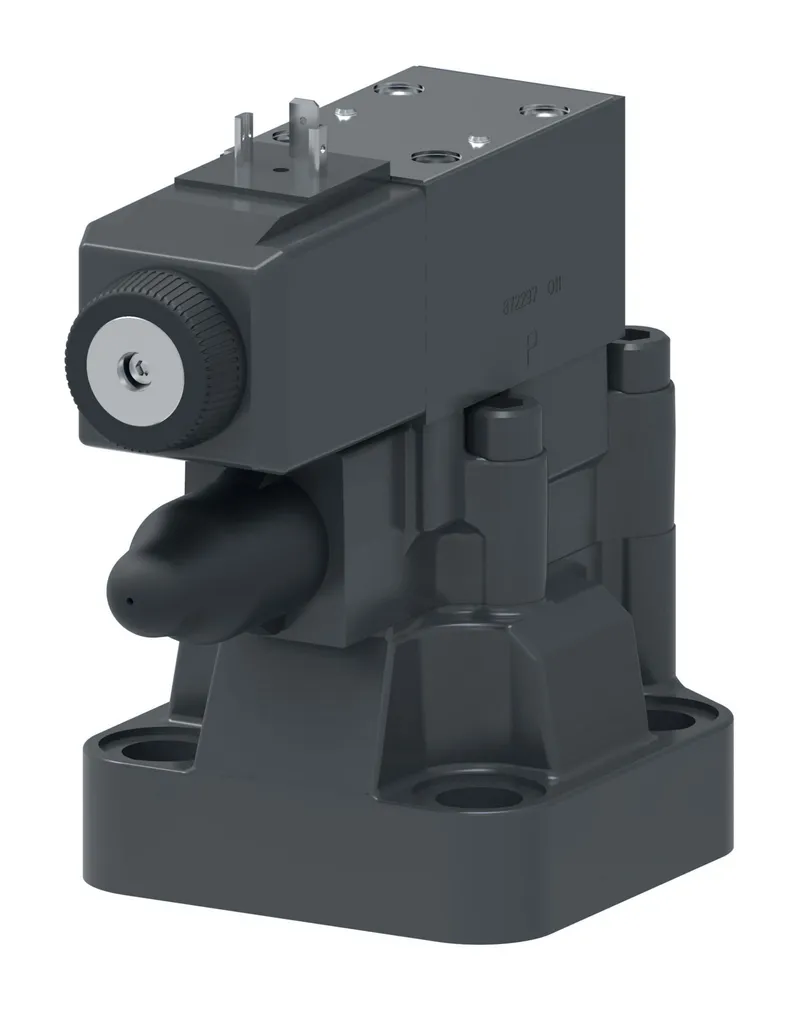

KXCG 6 W330 3 Z M U HL110, KXCG6W3303ZMUHL110

MPN: 02-311673
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-311673?

Danfoss KXCG 6 W330 3 Z M U HL110, KXCG6W3303ZMUHL110, manufacturer part number 02-311673. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled pilot operated
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	10 Series
Electrical Connection	ISO 4400 (DIN 43650) connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO6264-AR-06-2-A
Manual adjustment	Screw and locknut
Manual override	None
Maximum flow LPM	200.0
Maximum flow USGPM	52.8
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KXCG6W3303ZMUHL110
On board electronics	No
Performance	Standard
Product height in	7.600
Product height mm	193.040
Product length in	7.100
Product length mm	180.340
Product width in	3.650
Product width mm	92.71
ProFX compatible	No
Reduced pressure adjustment	15-330 bar (220-4750 psi)
Reducer module	No
Reverse flow check	Yes
Seal type	Buna-N
Special features	None
Stage	Two stage
Valve Mount Type	Subplate
Valve type	Proportional pressure reducing
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
