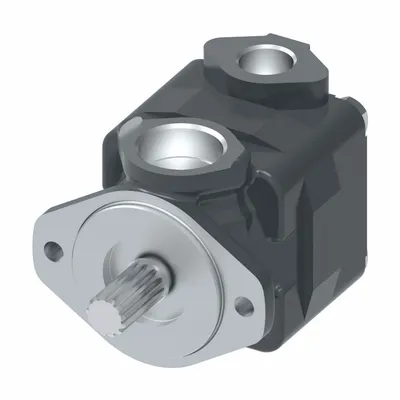

Danfoss 02-306221

PVH131L23AL30B372100ADCA W5AU083A

MPN: 02-306221
Category: PVH and PVE open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-306221?

Danfoss PVH131L23AL30B372100ADCA W5AU083A, manufacturer part number 02-306221. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	MODIFIED 2 BOLT A W/ 14T 12/24DP SPLINED SHAFT (ASA B5.15-1960)
Brand	Danfoss
CODE TITLE	VICKERS PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	LS AIR BLEED
Controller type	PRESSURE AND FLOW COMPENSATOR
Customer identification	CATERPILLAR - MARK CUSTOMER PART NUMBER AND BUILD DATE CODE ON PLATE
Design code	FIRST DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORT
Displacement	131,1 CM3/R [8.00 IN3/R]
Drain port size location	.875-14 UNF-2B SAE O-RING PORT - BOTTOM (TOP PLUGGED)
Flow comp unload valve	20-22 BAR [290-319 LBF/IN2]
Front mounting input shaft	2 BOLT C DUAL MOUNT (SAE J744-127-4) WITH 17T 12/24 DP SPLINED SHAFT, 72.0 [2.83] SHAFT EXTENSION
Input shaft rotation	LEFT-HAND ROTATION (CCW) LEFT SIDE SUCTION PORT, RIGHT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.500 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 1/2-13 UNC-2B THREADS; PRESSURE- 1.250 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 7/16-14 UNC-2B THREADS
Maximum displacement option	DISPLACEMENT LIMITED TO 91%
Paint	CATERPILLAR YELLOW
Pressure compensator setting	168-176 BAR [2437-2553 LBF/IN2]
Shaft seal	DOUBLE, TWO-WAY SHAFT SEAL, FLUOROCARBON W/ VHO FILTER
Special features	CONTROLS MOUNTED ON BOTTOM OF UNIT
Torque sensing other comp	NO TORQUE SENSING SETTING OR OTHER COMPENSATION
