Danfoss 02-306047-2
Industrial vane pump
- MPN
- 02-306047-2
- Category
- Industrial vane pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-306047-2?

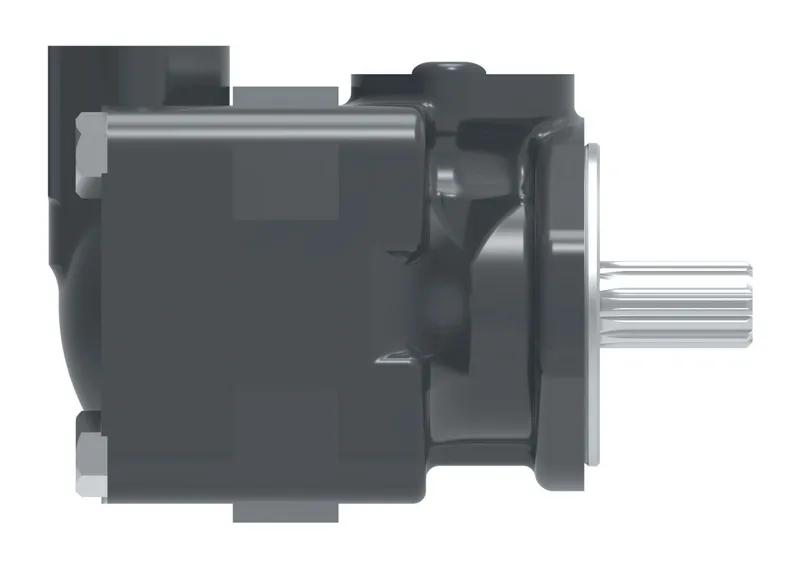

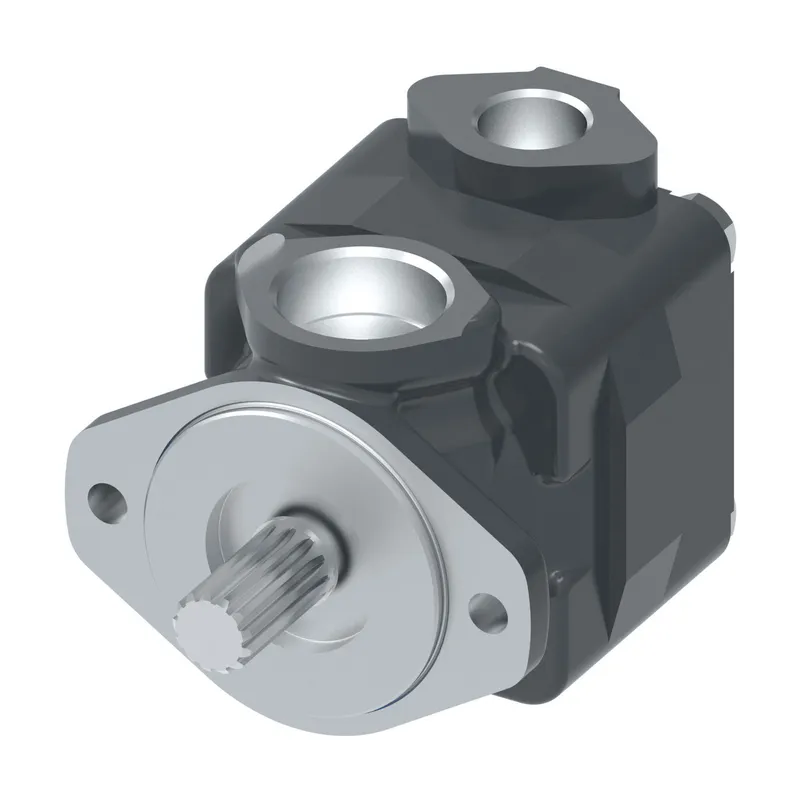

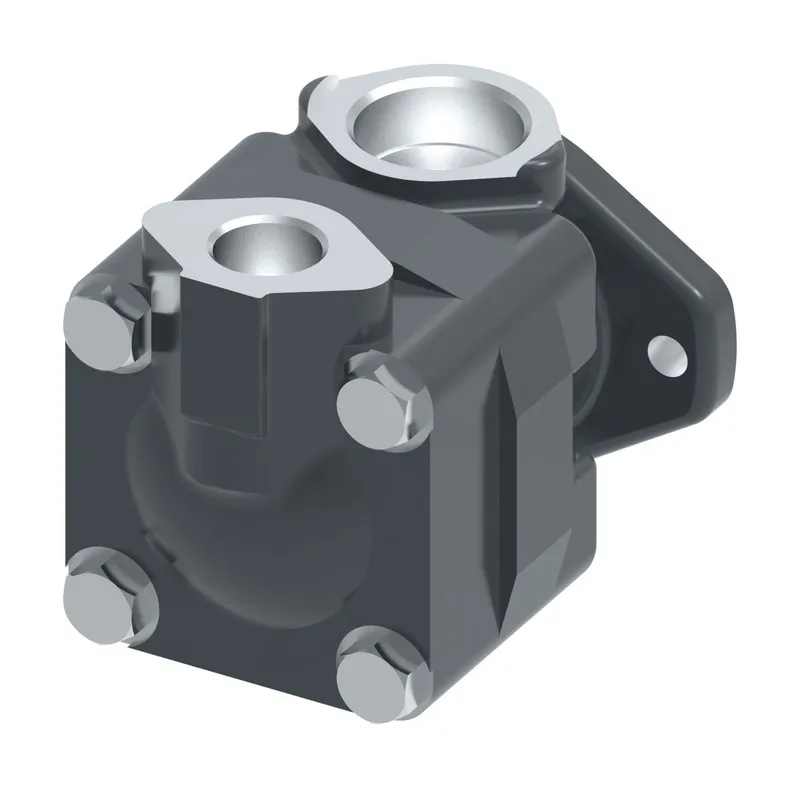

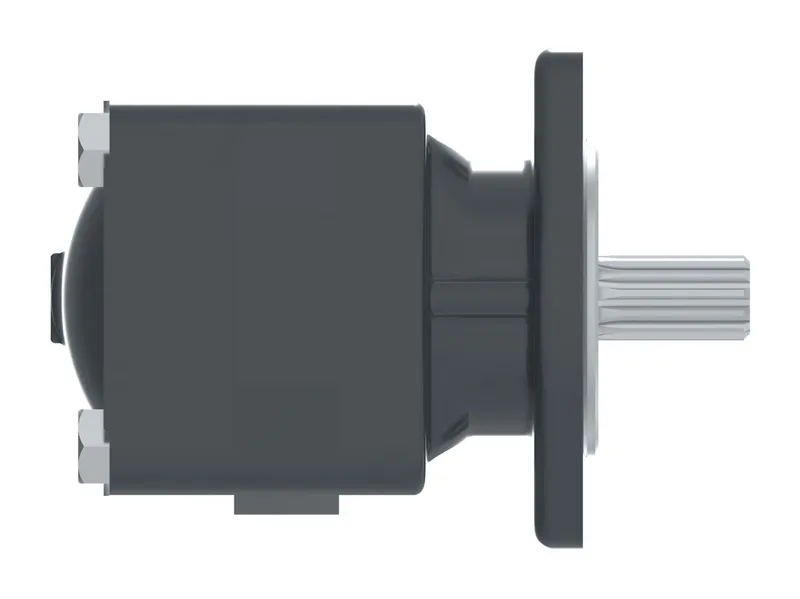

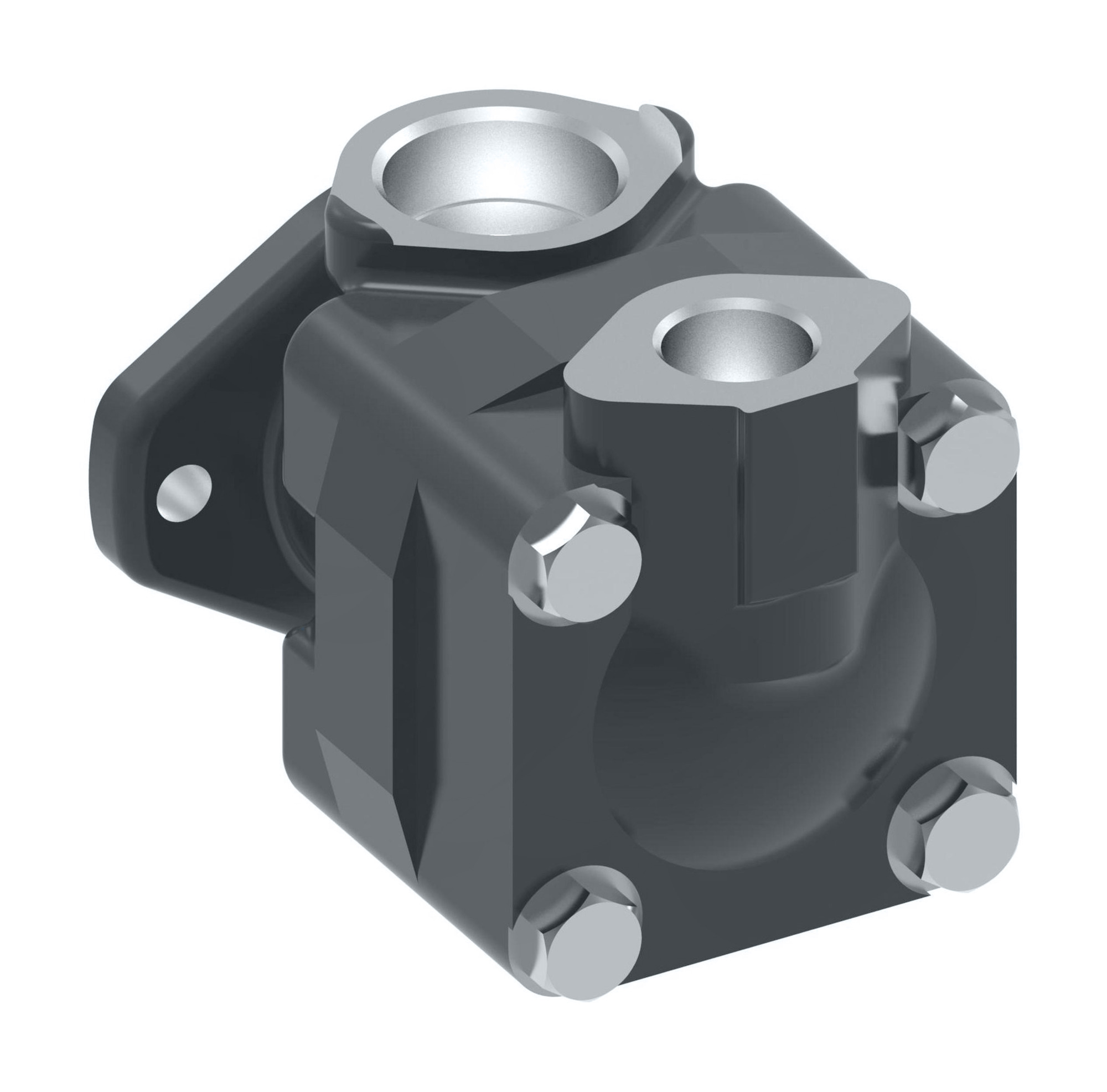

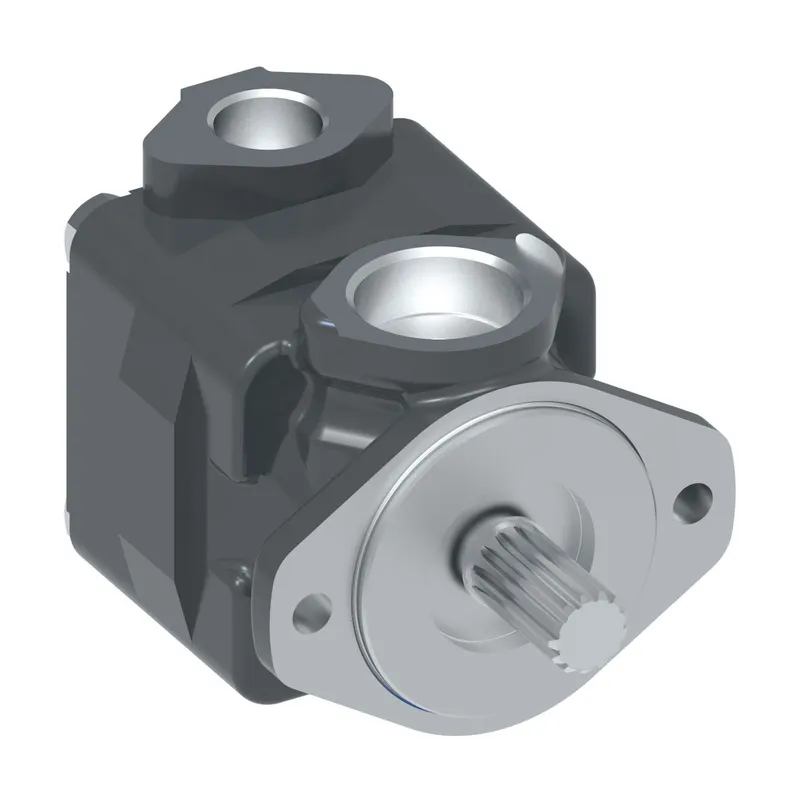

Danfoss V20F 1S9S 38B6K 22, V20F 1S9S 38B6K 22, manufacturer part number 02-306047-2. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| SEALS TYPE | STANDARD SEAL |
| PUMP TYPE | VANE PUMP |
| Series | SERIES DESIGNATION |
| Cover type | FLOW CONTROL VALVE COVER |
| Mounting type | 2 BOLT FLANGE SAE-A SIZE |
| INLET PORT TYPE | 1.625-12UN-2B THREAD |
| RING CAPACITY | 9 GPM |
| OUTLET PORT TYPE | COVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD |
| SHAFT SEAL AND BEARING | SINGLE LIP SEAL&SEALED BEARING |
| Shaft type | 11TEETH 16/32 FLAT ROOT SIDE FIT |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | V20 Single Pump |
| Model Code 1 | V20F 1S9S 38B6K 22 |
