Danfoss 02-305127
CPF3S-12-BFF-W-3S-M-U-B5 -20, CPF3S12BFFW3SMUB520
- MPN
- 02-305127
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

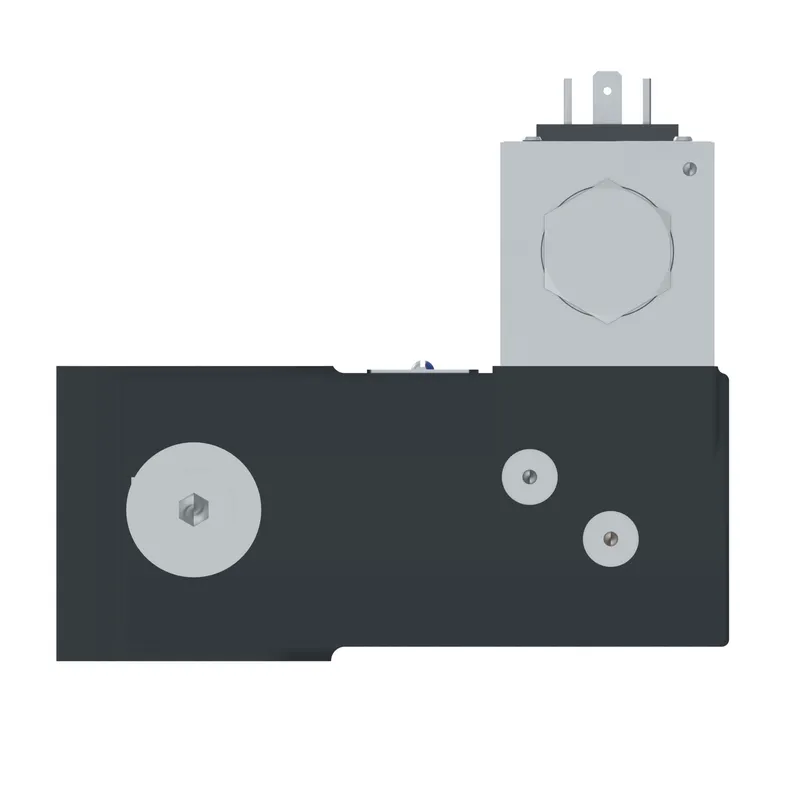

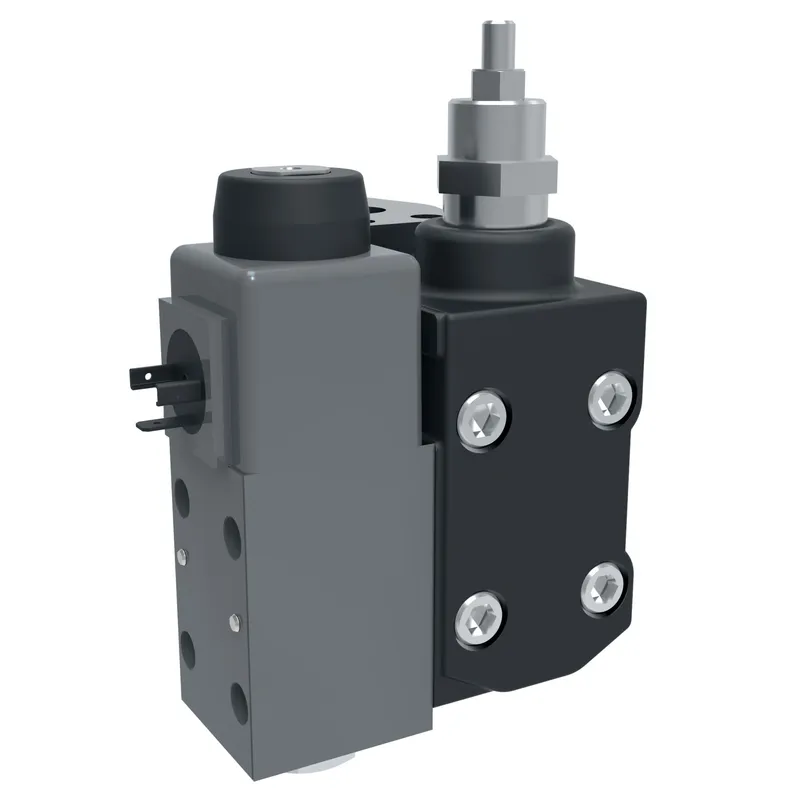

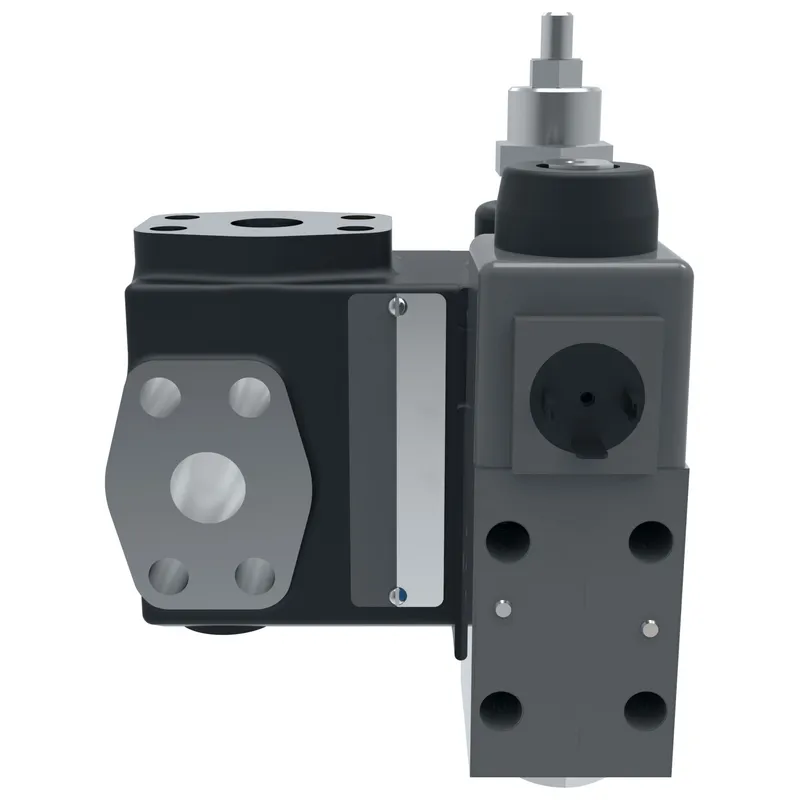

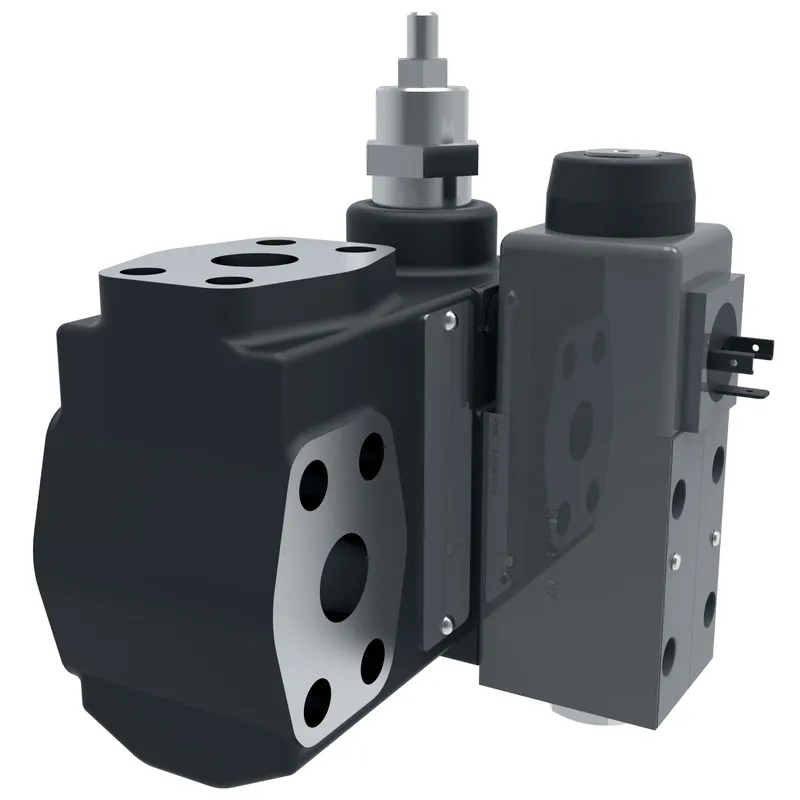

What is the Danfoss 02-305127?
Danfoss CPF3S-12-BFF-W-3S-M-U-B5 -20, CPF3S12BFFW3SMUB520, manufacturer part number 02-305127. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid operated |
| Adjustment range head 1 | 10-100 bar (145-725 psi) |
| Adjustment range head 2 | 10-207 bar (145-3000 psi) |
| Adjustment range head 3 | 10-207 bar (145-3000 psi) |
| Adjustment type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil voltage | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 20 Series |
| Drain | Internal |
| Electrical connection | ISO 4400 (DIN 43650) connector |
| Flow rate lpm | 600.0 |
| Flow rate USGPM | 160.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Gauge port thread | G 1/4 BSP thd |
| Hi-vent spring | No |
| Indicator Light | No |
| Manual override | Plain |
| Maximum pressure BAR | 275 |
| Maximum pressure PSI | 4000 |
| Model Code 1 | CPF3S12BFFW3SMUB520 |
| Performance | Standard |
| Product height in | 8.920 |
| Product height mm | 226.568 |
| Product length in | 7.550 |
| Product length mm | 191.770 |
| Product width in | 8.390 |
| Product width mm | 213.106 |
| Seal material | Nitrile |
| Size | SAE 1 1/2" |
| Special feature | None |
| Stage | Two stage |
| Tank pressure bar | 210 |
| Tank pressure PSI | 3000 |
| Valve Mount Type | Flange mounted |
| Valve type | Bi-pressure relief valve |
| Working temperature max C | 80 |
| Working temperature max F | 176 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
