Danfoss 02-304577

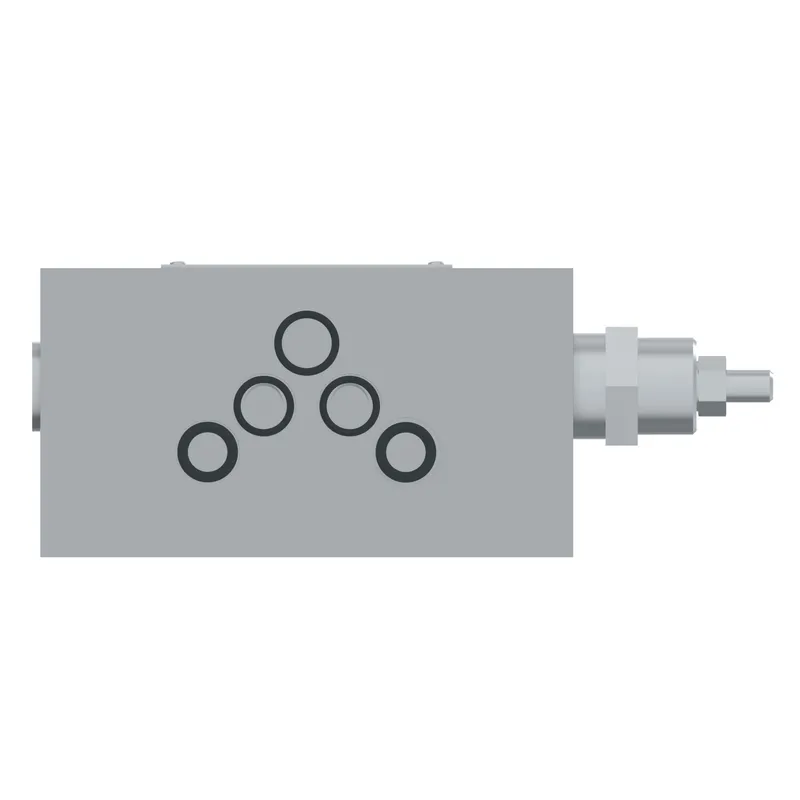

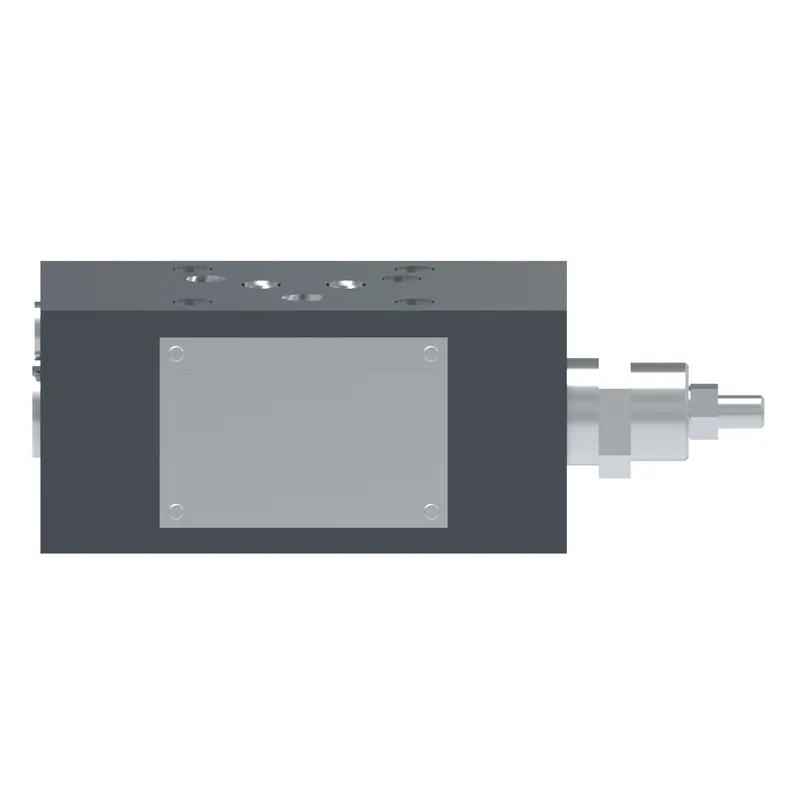

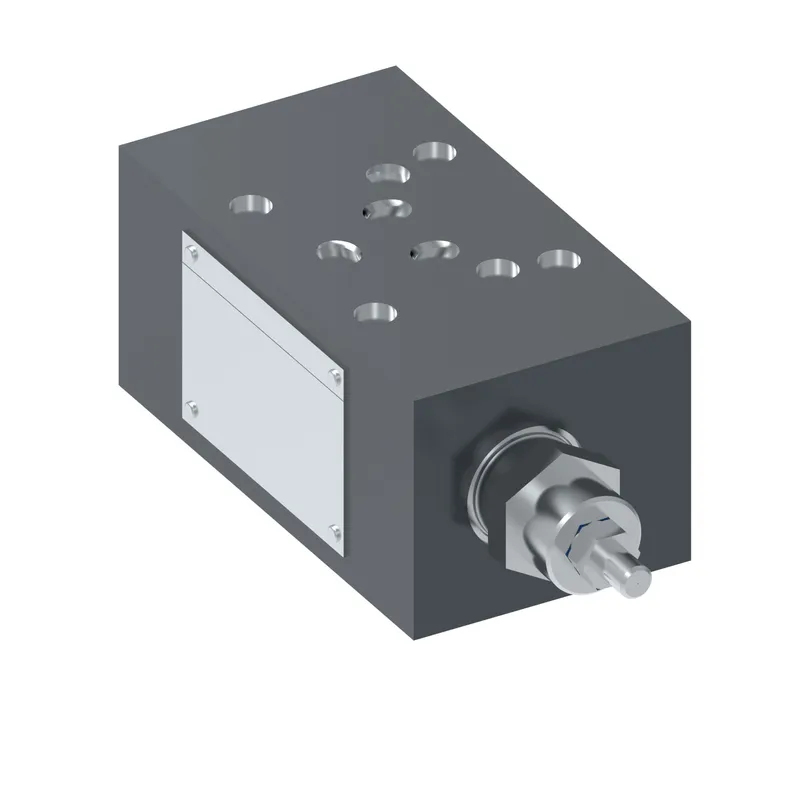

DGMX2-5-PA-GW-E-B-30, DGMX25PAGWEB30

MPN: 02-304577
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-304577?

Danfoss DGMX2-5-PA-GW-E-B-30, DGMX25PAGWEB30, manufacturer part number 02-304577. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Design Series	30 Series
External drain	Yes
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	G1/8" (1/8" BSPF)
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMX25PAGWEB30
Performance	Standard
Pilot control	Cylinder port A
Port operated upon	P pressure port
Pressure adjustment range	8.5-315 bar (125-4500 psi)
Product height in	2.360
Product height mm	59.944
Product length in	6.650
Product length mm	168.910
Product width in	2.820
Product width mm	71.628
Remote control port	No
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Reducing-relieving valve
Working temp max C	80
Working temp max F	176
Working temp min C	0
Working temp min F	32
