Danfoss
02-199777
Danfoss 02-199844

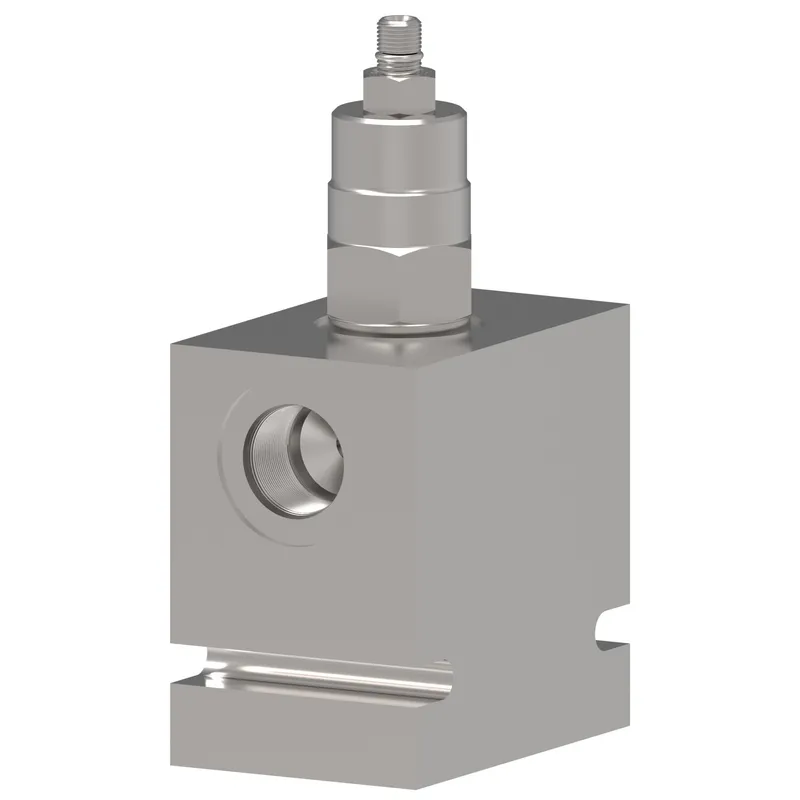

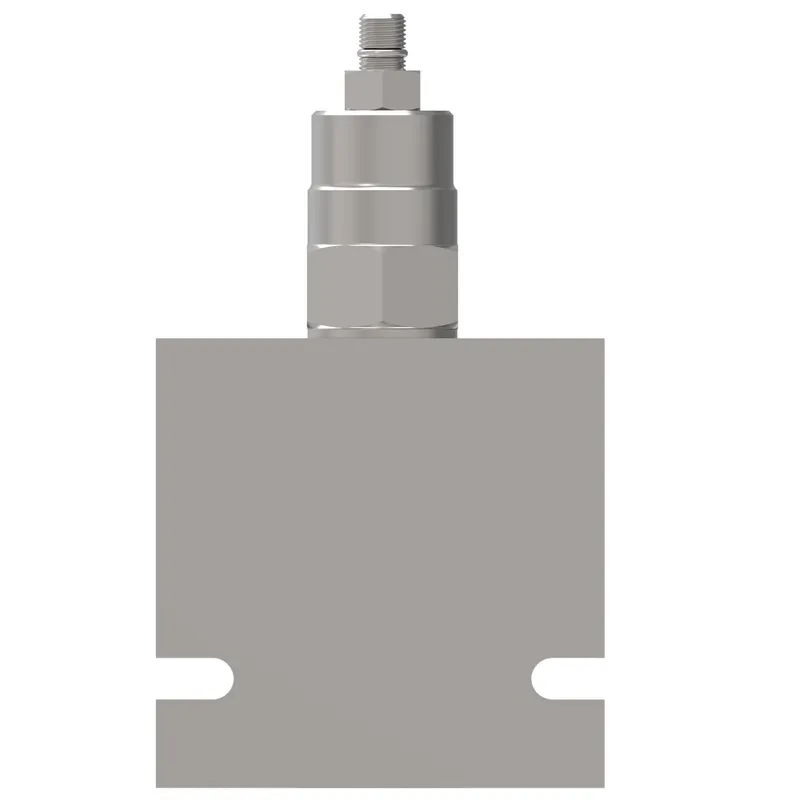

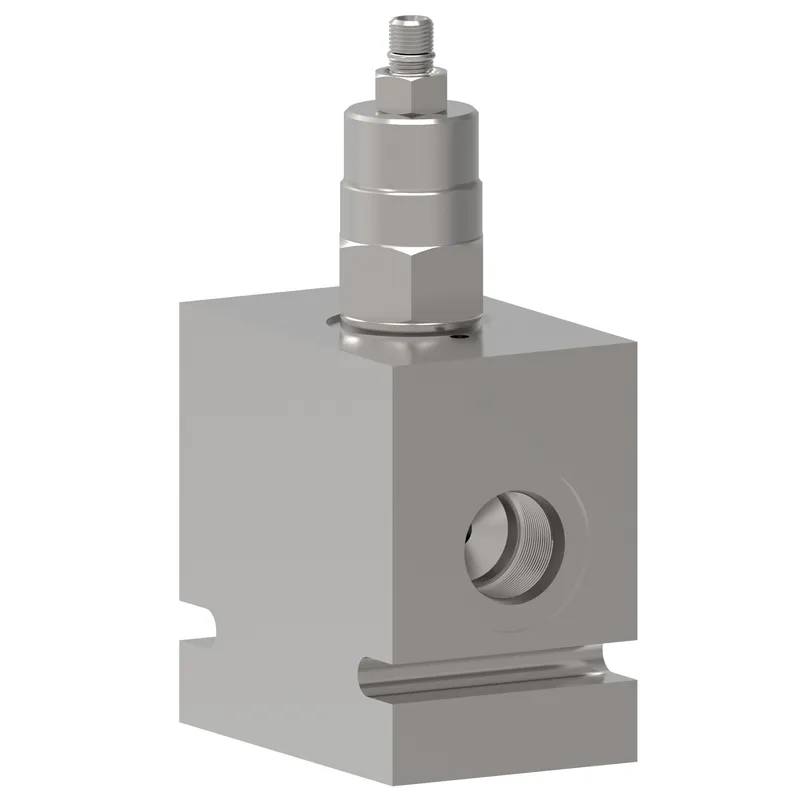

CBV2-12-S-IS12T-B-30/-A CNTRBLNCE VL10-1, CBV2-12-S-I-S-12T-B-30-XXX-A
- MPN
- 02-199844
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Danfoss 02-199844?
Danfoss CBV2-12-S-IS12T-B-30/-A CNTRBLNCE VL10-1, CBV2-12-S-I-S-12T-B-30-XXX-A, manufacturer part number 02-199844. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | C-12-3S |
| Flow rate GPM | 30.00 |
| Flow rate LPM | 114.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Counterbalance Valve |
| Housing | Yes |
| Housing material | Steel |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max pilot adjust p BAR | 15.000 |
| Max pilot adjust p PSI | 218.000 |
| Max relief press BAR | 350.000 |
| Max relief press PSI | 5000.000 |
| Min pilot adjust p BAR | 12.000 |
| Min pilot adjust p PSI | 178.000 |
| Model Code 1 | CBV2-12-S-I-S-12T-B-30-XXX-A |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot ratio | 10:1 |
| Port size | 3/4" |
| Port type | SAE |
| Pressure rating BAR | 350.000 |
| Pressure rating PSI | 5000.000 |
| Product height in | 5.240 |
| Product height mm | 133.096 |
| Product length in | 3.970 |
| Product length mm | 100.838 |
| Product width in | 2.470 |
| Product width mm | 62.738 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Pilot assisted relief w check |
| Valve torque into cavity | 81-95 Nm |
No matching specifications
02-199844: frequently asked questions
When can 02-199844 be shipped?
02-199844 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-199844 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-199844 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-199844, subject to availability and destination.
