Danfoss 02-199002

Cartridge valve

MPN: 02-199002
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-199002?

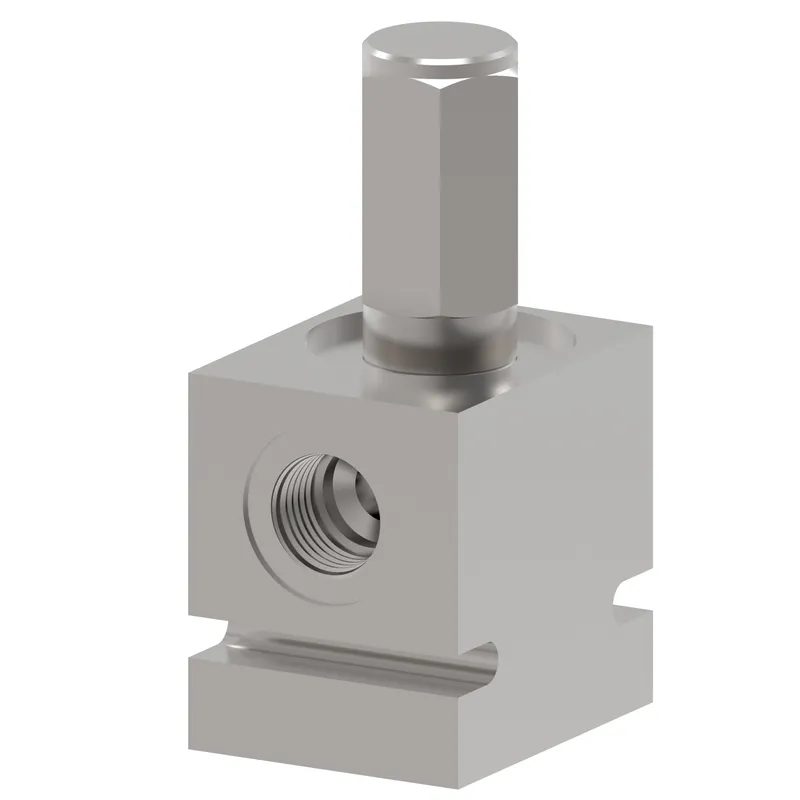

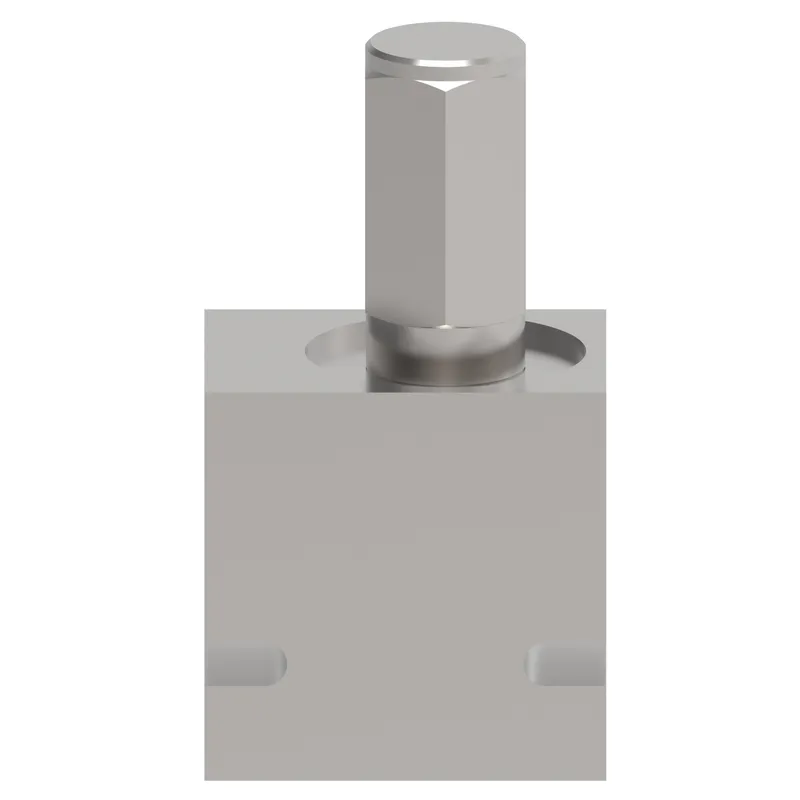

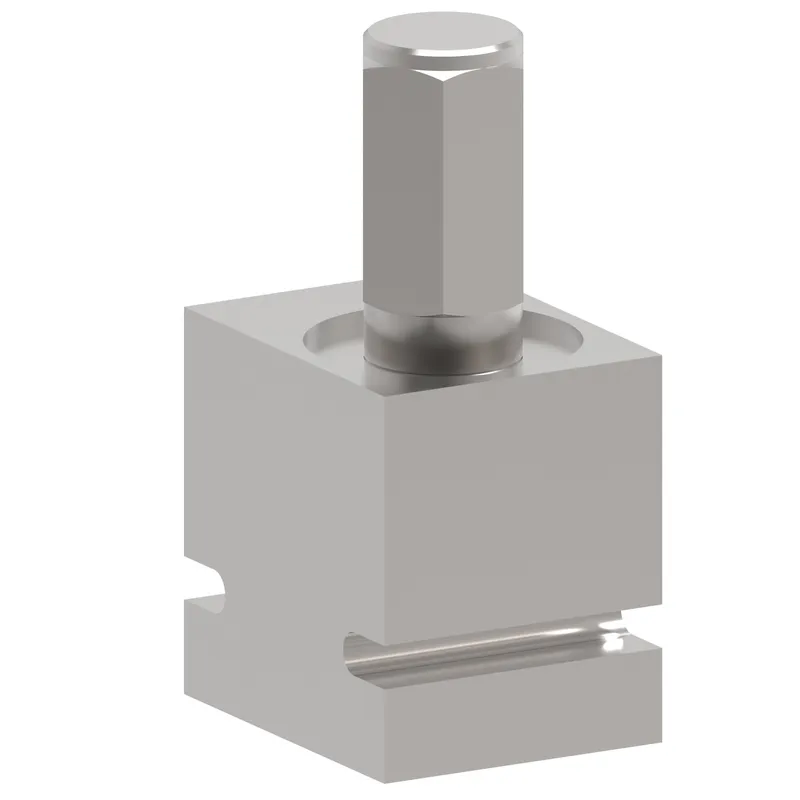

Danfoss RV3-10-F-6T-18/10, RV3-10-F-6T-18-10, manufacturer part number 02-199002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set pressrue BAR	69.000
Factory set pressrue PSI	1002.000
Flow rate GPM	20.00
Flow rate LPM	76.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	Yes
Housing material	Steel
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	124.000
Max working pressure PSI	1803.000
Min working pressure BAR	21.000
Min working pressure PSI	305.000
Model Code 1	RV3-10-F-6T-18-10
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	3/8"
Port type	SAE
Product height in	5.800
Product height mm	147.320
Product length in	2.500
Product length mm	63.500
Product width in	1.140
Product width mm	28.956 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Poppet
