Danfoss 02-182736

FAR1-10-H-0-6.00, FAR1-10-H-0-6.0

MPN: 02-182736
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-182736?

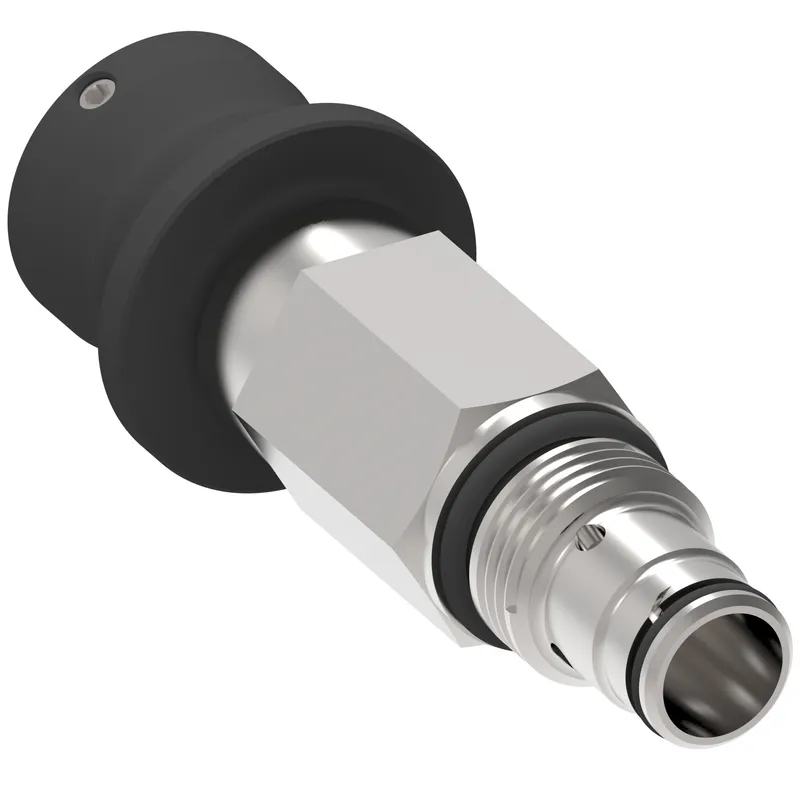

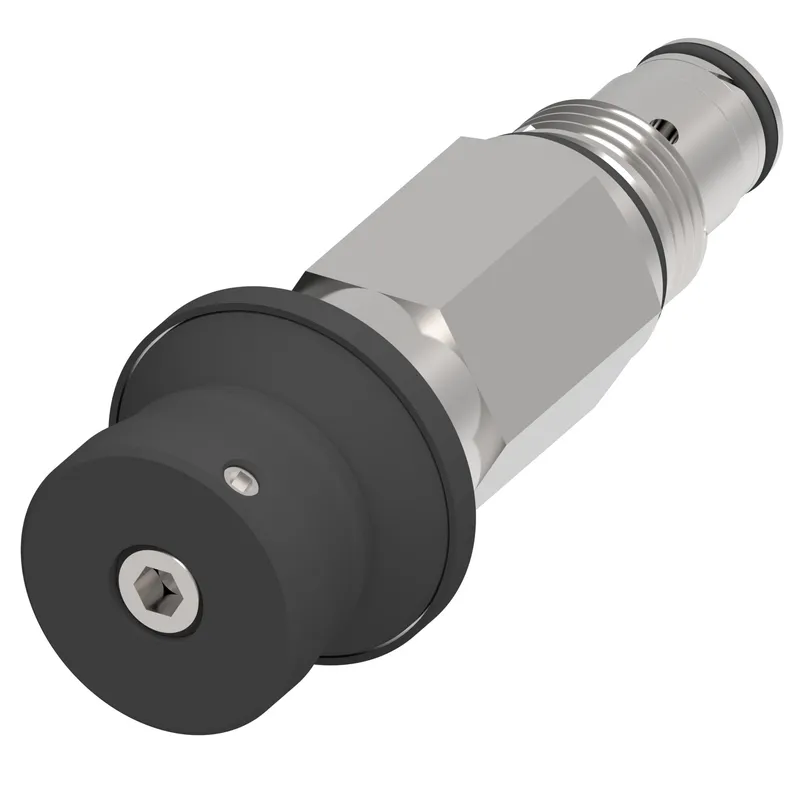

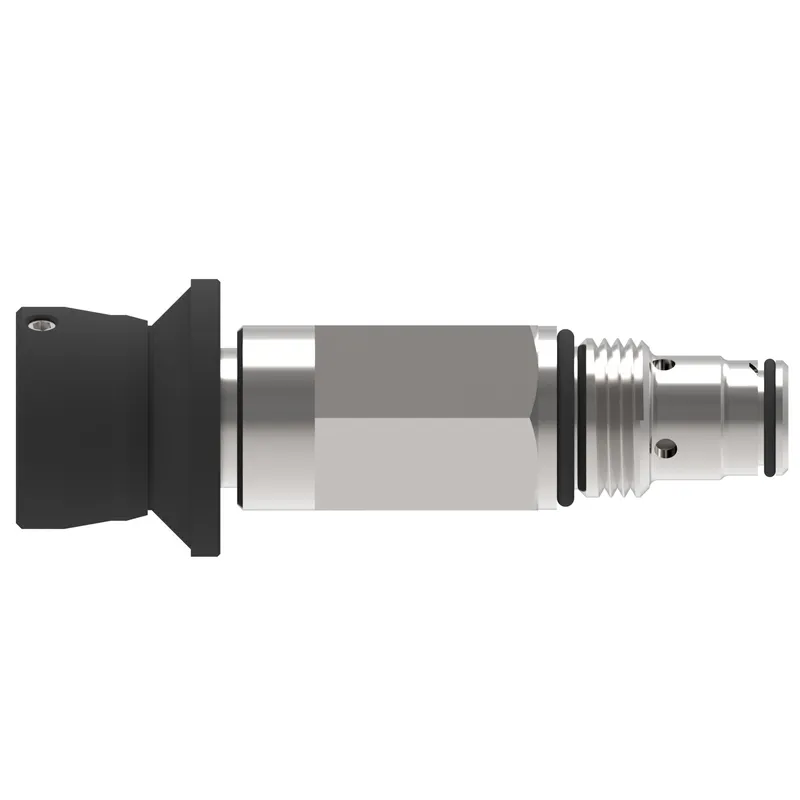

Danfoss FAR1-10-H-0-6.00, FAR1-10-H-0-6.0, manufacturer part number 02-182736. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Calibrated Handknob w Locknut
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set flow rate GPM	6.000
Factory set flow rate LPM	26.00
Flow rate GPM	10.000
Flow rate LPM	38.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Regulator
Housing	No
Leakage	400 cc/min
Maximum flow rate GPM	10.000
Maximum flow rate LPM	38.00
Minimum flow rate GPM	0.250
Minimum flow rate LPM	1.00
Model Code 1	FAR1-10-H-0-6.0
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Differential Pressure
Product height in	1.500
Product height mm	38.100
Product length in	4.000
Product length mm	101.600
Product width in	1.500
Product width mm	38.100 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Adjust Press Compens, Flow Reg
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm
