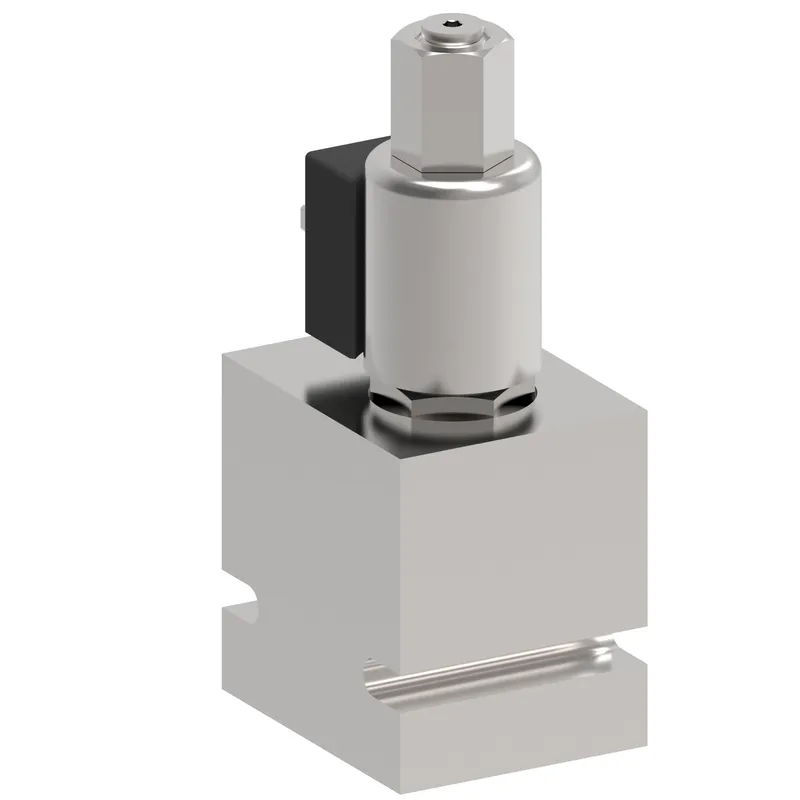

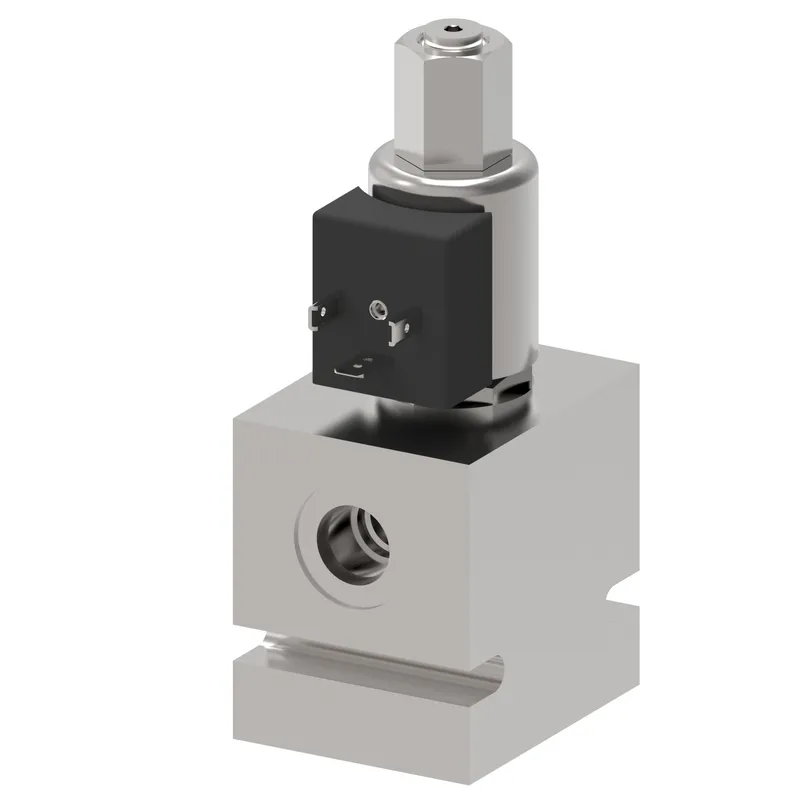

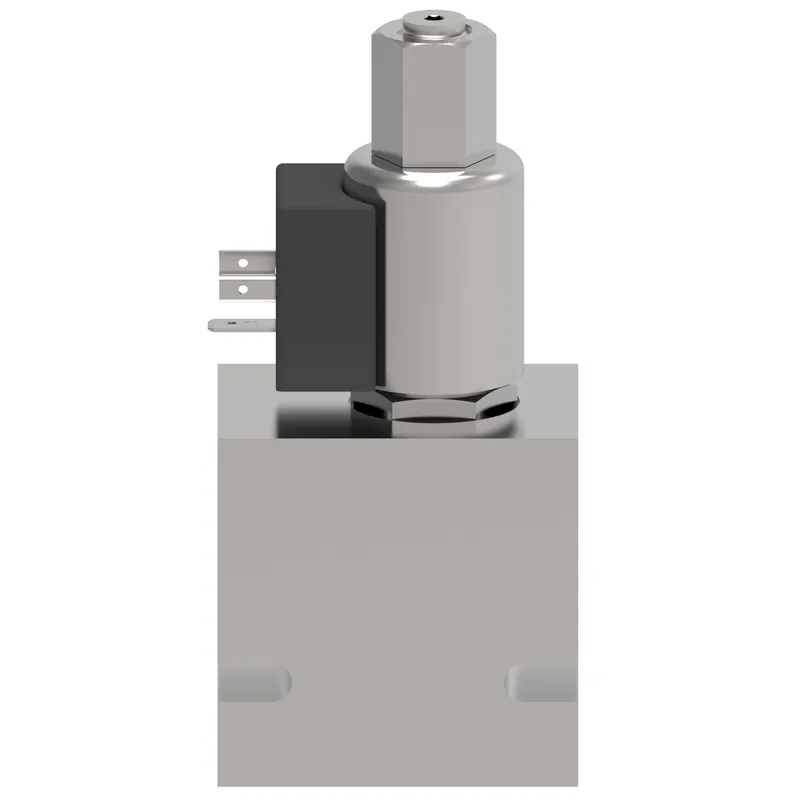

Danfoss 02-182421
ERV1-10-10.00-6T-24BN, ERV1-10-10.00-6T-24B-N
- MPN
- 02-182421
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Danfoss 02-182421?
Danfoss ERV1-10-10.00-6T-24BN, ERV1-10-10.00-6T-24B-N, manufacturer part number 02-182421. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Coil series | J Series |
| Coil termination | Deutsch Moulded |
| Diode | Yes |
| Factory set pressure BAR | 68.900 |
| Factory set pressure PSI | 1002.00 |
| Flow rate GPM | 16.00 |
| Flow rate LPM | 60.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Prop Pressure Relief |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Minimum working pressure BAR | 2.00 |
| Minimum working pressure PSI | 29.00 |
| Model Code 1 | ERV1-10-10.00-6T-24B-N |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Elecro Proportionally Ctrl |
| Override type | None |
| Port size | 3/8" |
| Port type | SAE |
| Pressure rating BAR | 240.00 |
| Pressure rating PSI | 3500.00 |
| Product height in | 5.370 |
| Product height mm | 136.398 |
| Product length in | 2.500 |
| Product length mm | 63.500 |
| Product width in | 2.000 |
| Product width mm | 50.800 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Spool |
| Torque into aluminium cavity | 47-54 Nm |
| Torque into steel cavity | 68-75 Nm |
| Voltage | 24 V |
| Voltage type | DC |
| Working pressure max BAR | 240.00 |
| Working pressure max PSI | 3500.00 |
