What is the Danfoss 02-182132?

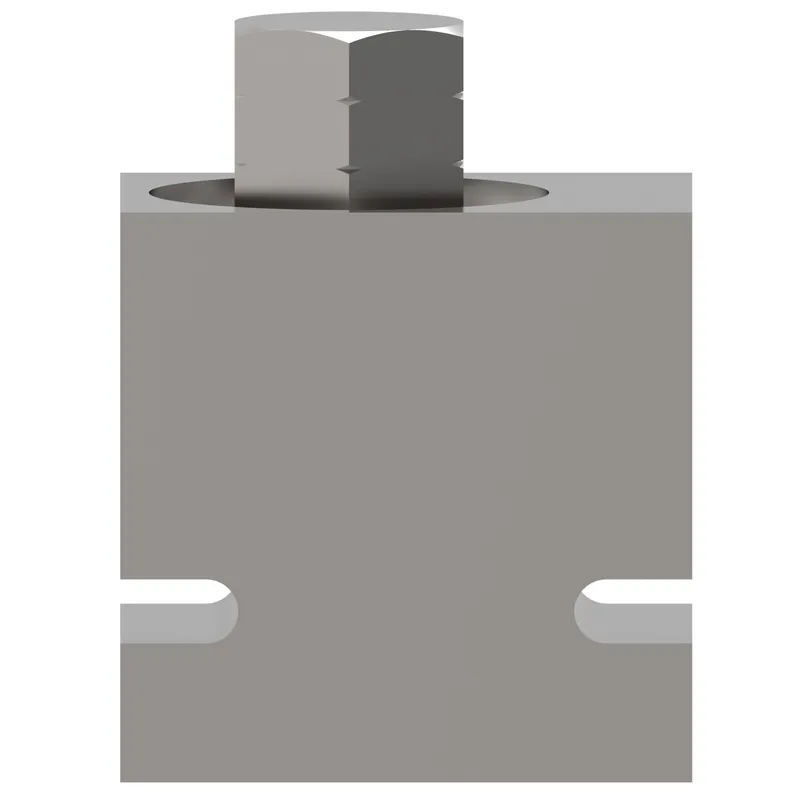

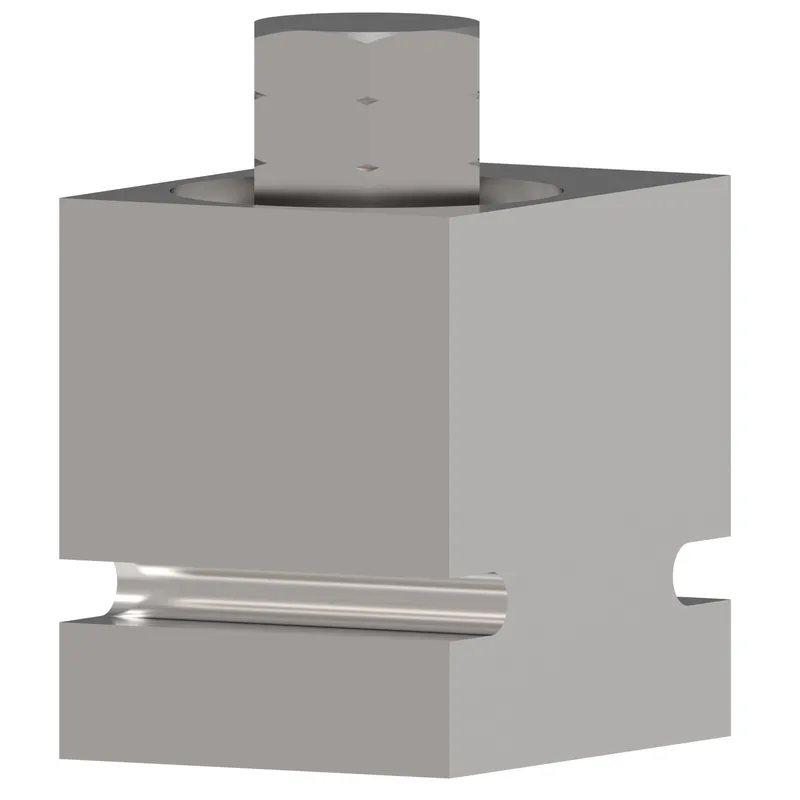

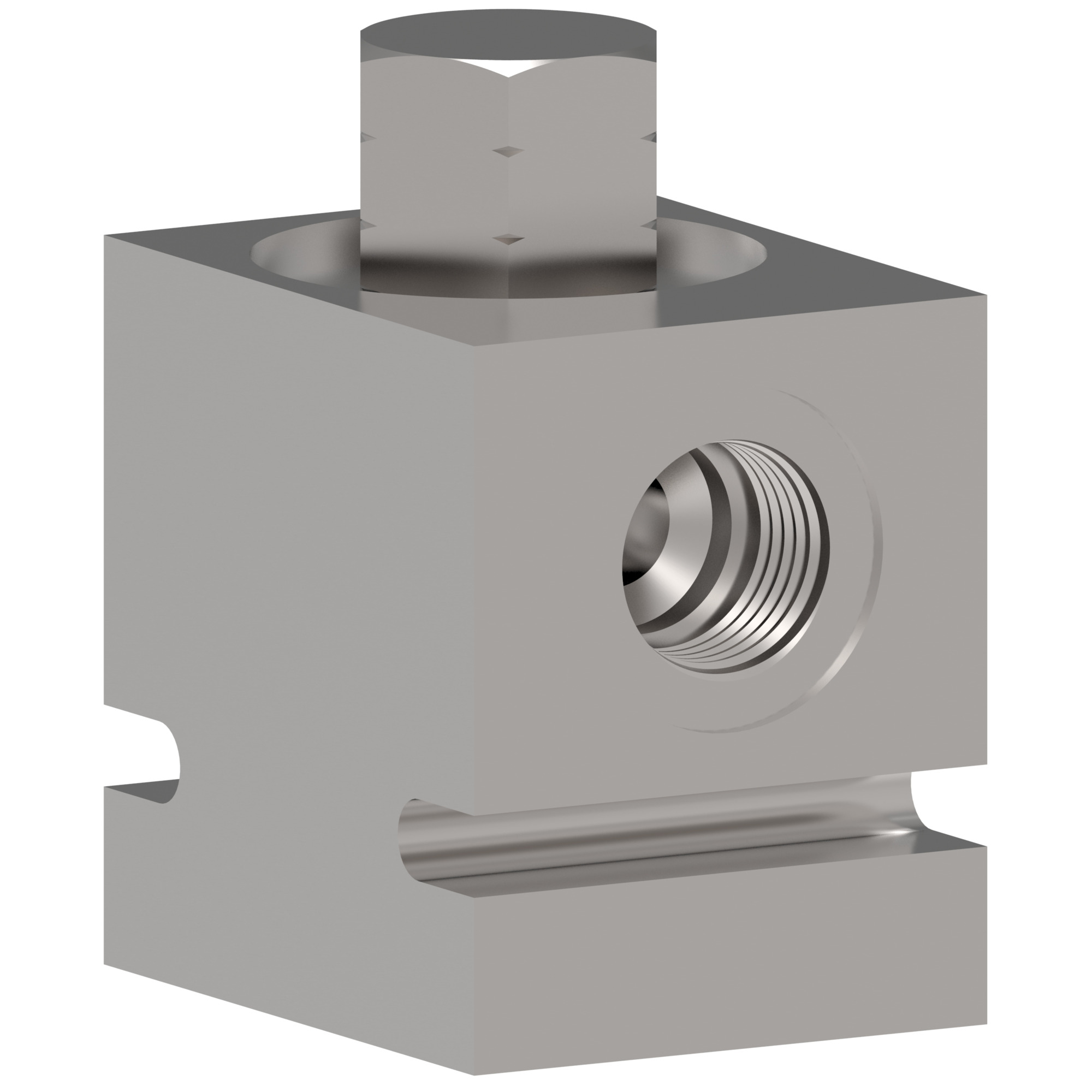

Danfoss FR5-10-F-A8H-6.00, FR5-10-F-A-8H-6.0, manufacturer part number 02-182132. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set flow rate GPM	6.000
Factory set flow rate LPM	23.00
Flow rate GPM	6.000
Flow rate LPM	23.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Restrictive flow reg fixed
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Maximum flow rate LPM	23.00
Minimum flow rate GPM	2.000
Minimum flow rate LPM	6.00
Model Code 1	FR5-10-F-A-8H-6.0
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port size	1/2"
Port type	SAE
Pressure rating BAR	280.00
Pressure rating PSI	4000.00
Product height in	3.350
Product height mm	85.090
Product length in	2.500
Product length mm	63.500
Product width in	1.750
Product width mm	44.450 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm
