Danfoss 02-177769

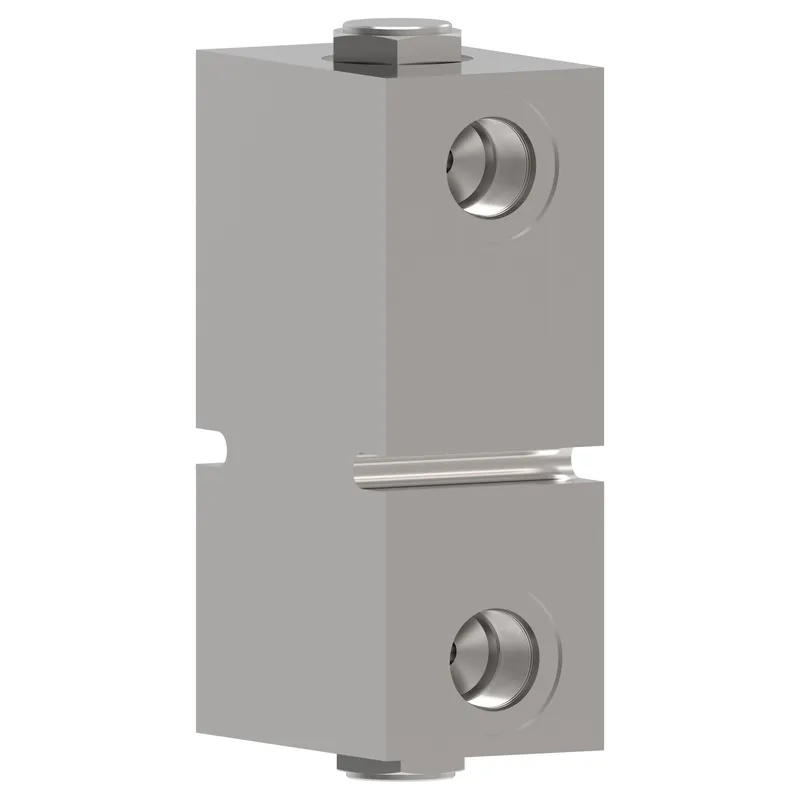

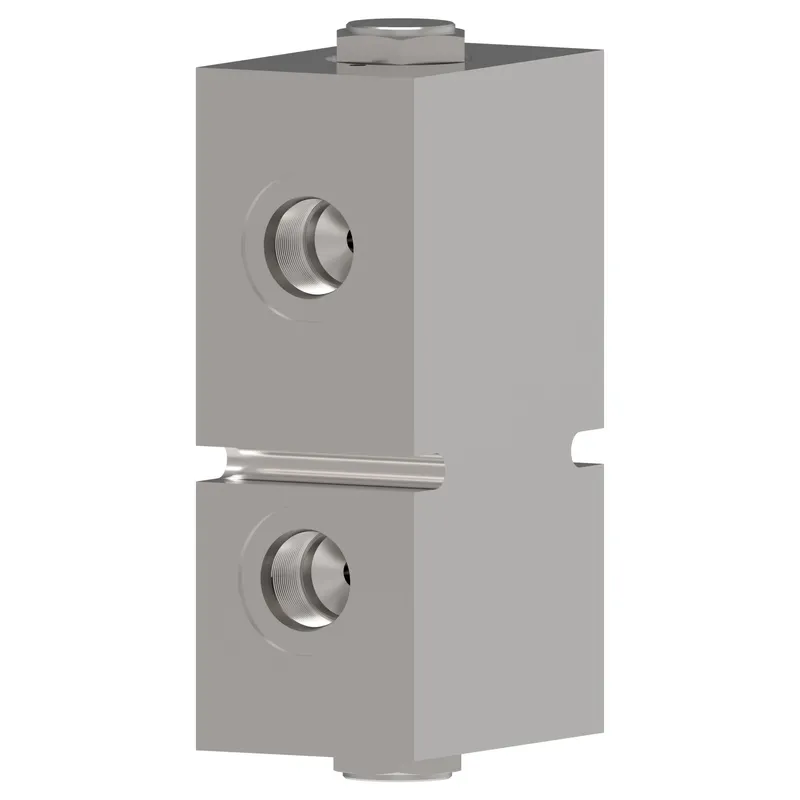

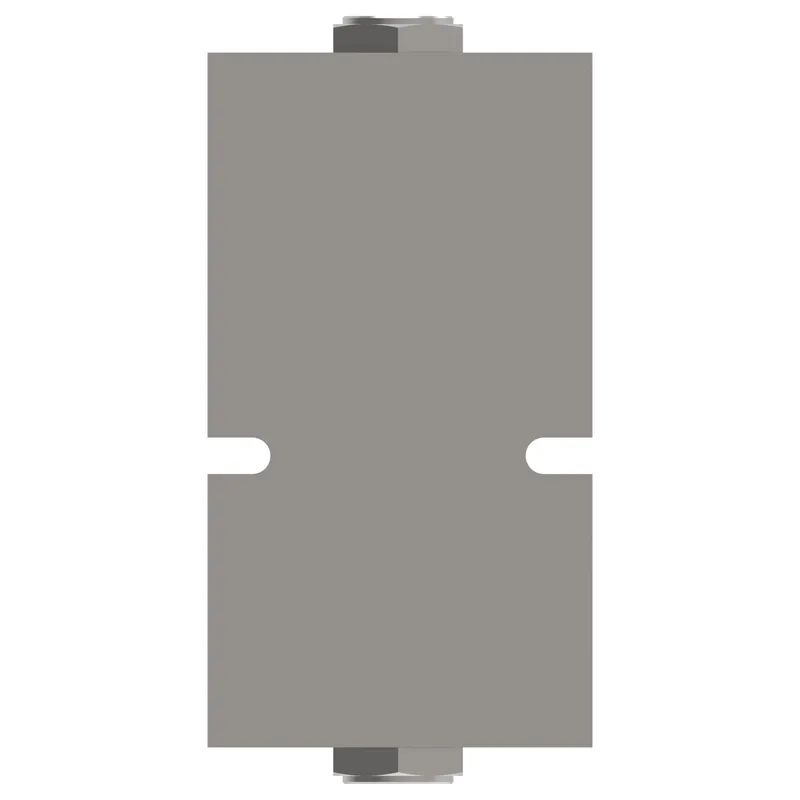

DPC1-10V-P-6T DOUBLE PILOT CHECK VALVE, DPC1-10V-P-6T

MPN: 02-177769
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-177769?

Danfoss DPC1-10V-P-6T DOUBLE PILOT CHECK VALVE, DPC1-10V-P-6T, manufacturer part number 02-177769. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	Inline
Flow rate GPM	10.50
Flow rate LPM	40.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Double Pilot Check Valve
Housing	Yes
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Model Code 1	DPC1-10V-P-6T
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot piston seal	No
Port size	3/8"
Port type	SAE
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	2.500
Product height mm	63.500
Product length in	5.160
Product length mm	131.064
Product width in	1.340
Product width mm	34.036 mm
Recommended filtration level	18/13
Seal type	Viton
Special features	None
Style	Poppet
