Danfoss 02-177503

Cartridge valve

MPN: 02-177503
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

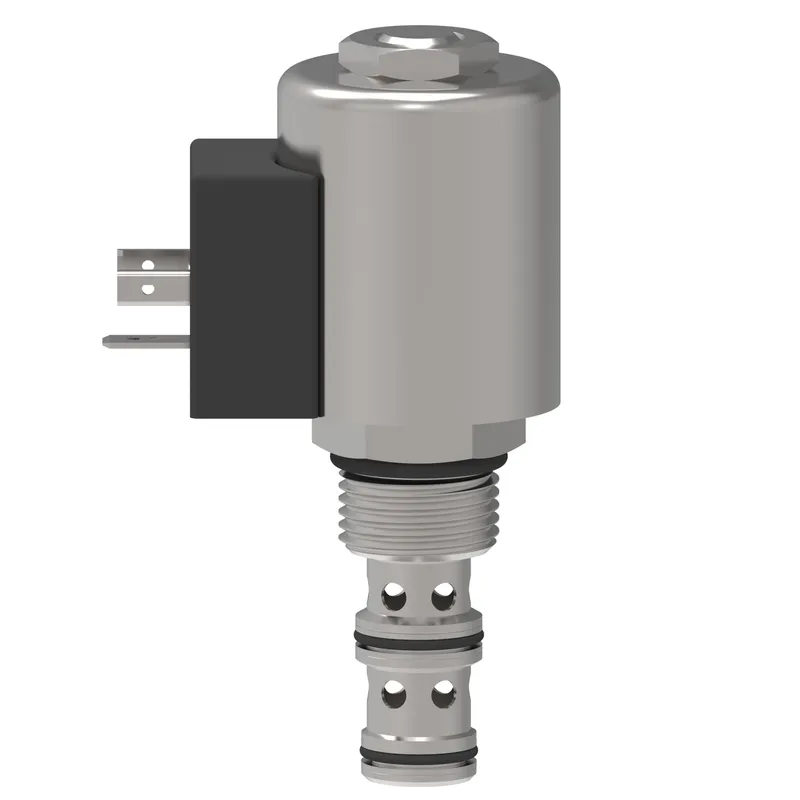

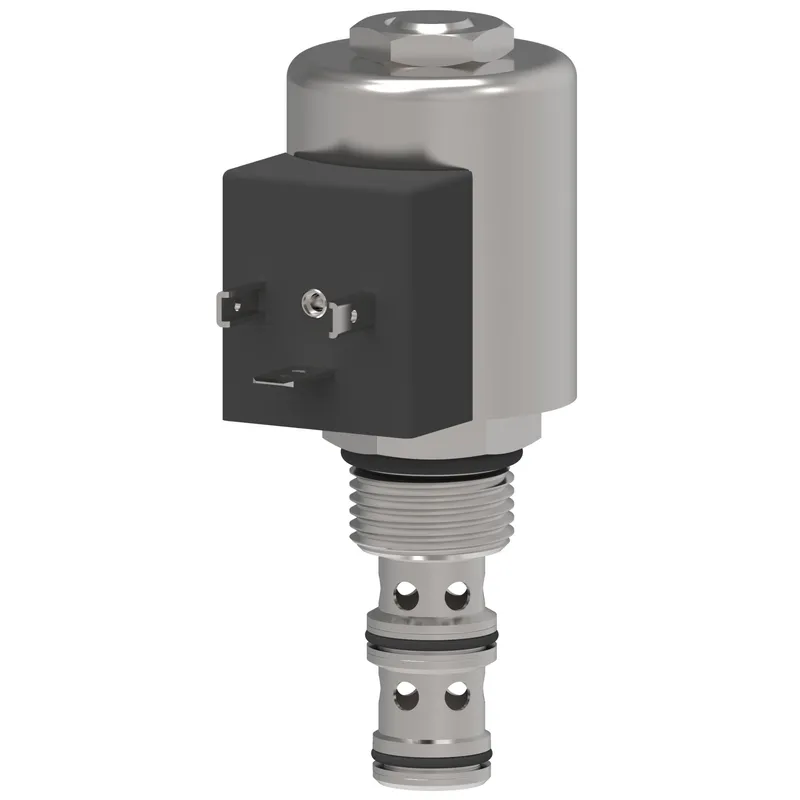

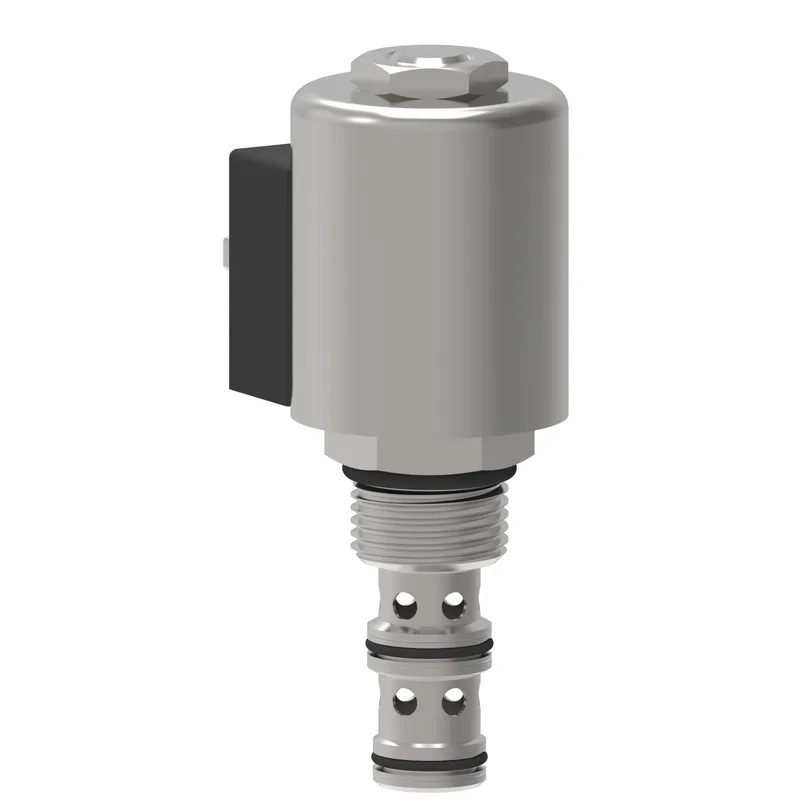

What is the Danfoss 02-177503?

Danfoss SV1-8-3-0-24D-G-S, SV1-8-3-0-24D-G-S, manufacturer part number 02-177503. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-8-3
Coil series	S Series
Coil termination	DIN 43650-A
Diode	No
Flow rate GPM	3.00
Flow rate LPM	11.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	82 cm3/min
Model Code 1	SV1-8-3-0-24D-G-S
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.620
Product height mm	41.148
Product length in	3.600
Product length mm	91.440
Product width in	1.250
Product width mm	31.750 mm
Proposition 65	Cancer and Reproductive Harm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	3-Way 2-Position
Torque into aluminium cavity	34-41 Nm
Torque into steel cavity	34-41 Nm
Voltage	24 V
Voltage type	DC

02-177503: frequently asked questions

When can 02-177503 be shipped?

02-177503 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-177503 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-177503 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-177503, subject to availability and destination.
