Danfoss 02-176718

SV11-10-4-0-24DGH, SV11-10-4-0-24DGH

MPN: 02-176718
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-176718?

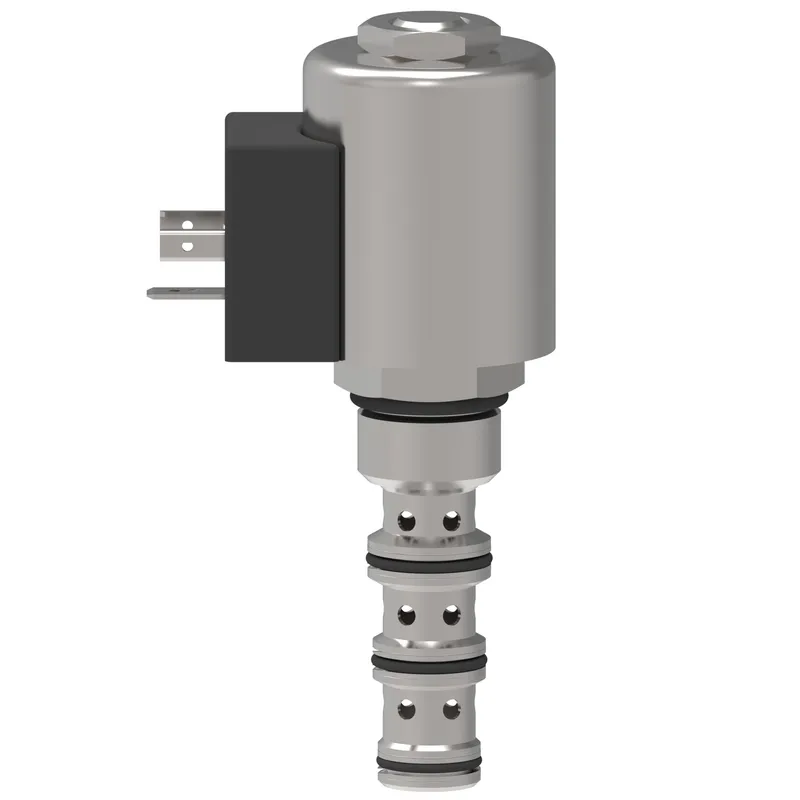

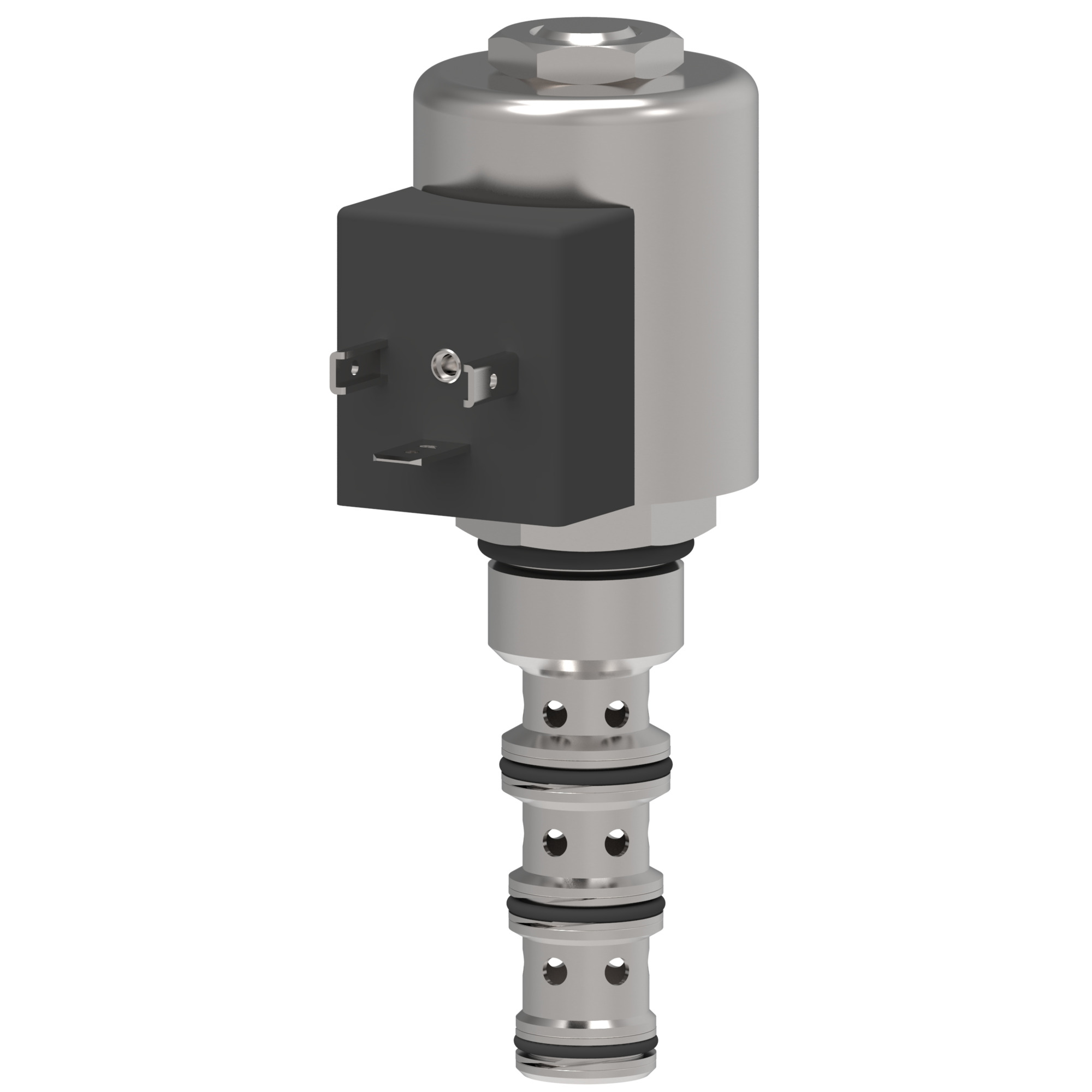

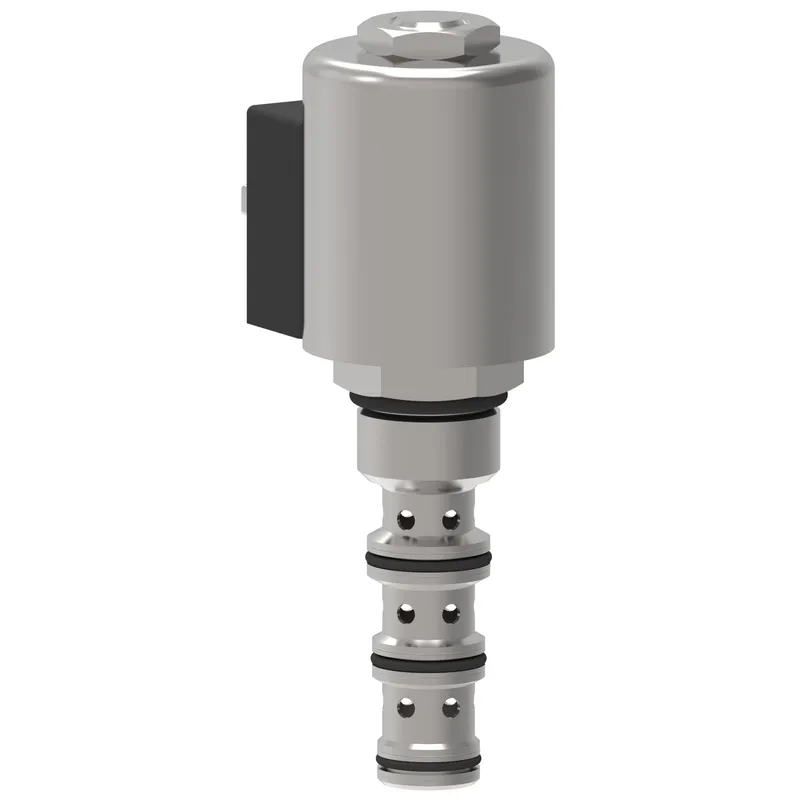

Danfoss SV11-10-4-0-24DGH, SV11-10-4-0-24DGH, manufacturer part number 02-176718. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-4
Coil series	H Series
Coil termination	DIN 43650
Diode	No
Flow rate LPM	23.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Housing material	Steel
Installation type	Screw-in Cartridge
Model Code 1	SV11-10-4-0-24DGH
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port type	Cartridge Only
Pressure rating BAR	350.00
Product height in	1.920
Product height mm	48.768
Product length in	4.710
Product length mm	119.634
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	4-Way 2-Position
Voltage	24 V
Voltage type	DC

02-176718: frequently asked questions

When can 02-176718 be shipped?

02-176718 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-176718 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-176718 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-176718, subject to availability and destination.
