Danfoss 02-175543

Cartridge valve

MPN: 02-175543
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-175543?

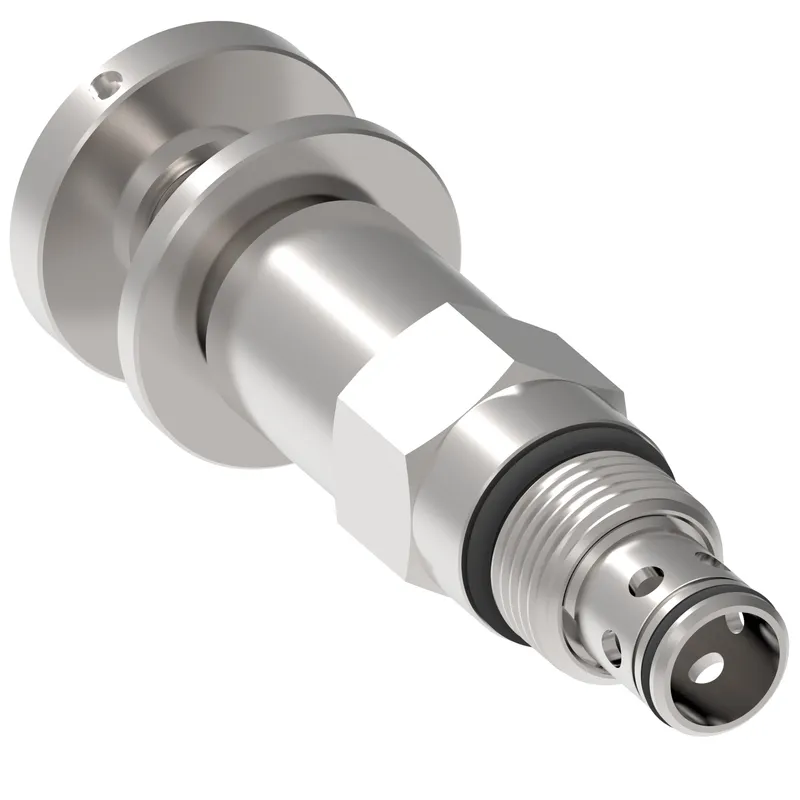

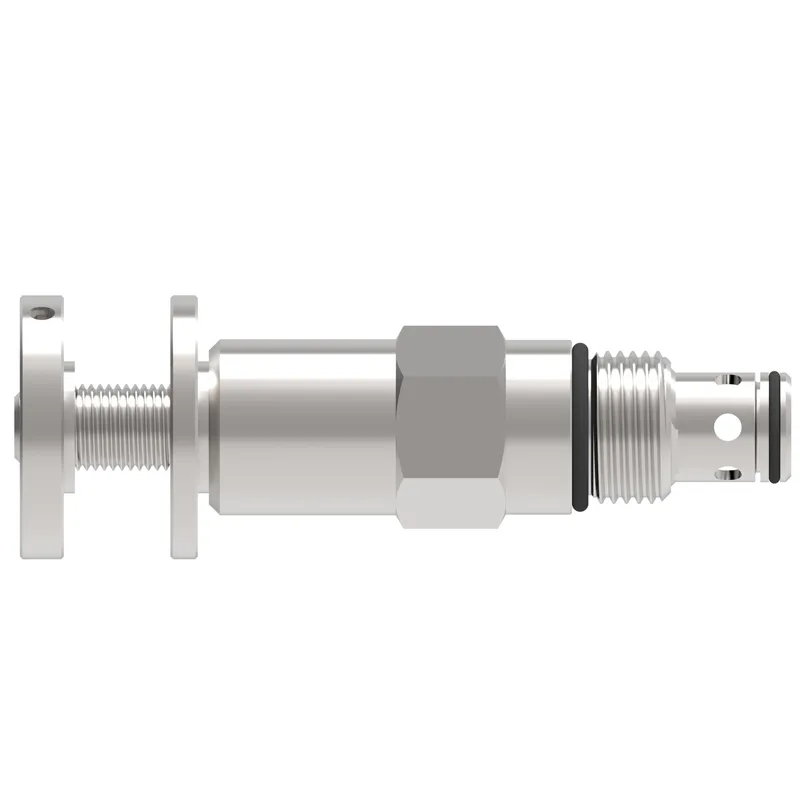

Danfoss RV5-10V-K-0-20/, RV5-10-V-K-0-20/, manufacturer part number 02-175543. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Knob
Brand	Danfoss
Cavity	C-10-2
Factory set pressrue BAR	69.000
Factory set pressrue PSI	1000.000
Flow rate GPM	30.00
Flow rate LPM	114.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	114 cc/min
Max working pressure BAR	140.000
Max working pressure PSI	2000.000
Min working pressure BAR	7.000
Min working pressure PSI	100.000
Model Code 1	RV5-10-V-K-0-20/
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Pressure rating BAR	350.000
Product height in	1.500
Product height mm	38.100
Product length in	4.380
Product length mm	111.252
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/16/13
Seal type	Viton
Special features	None
Style	Spool
Valve torque into cavity	47-54 Nm
