Danfoss 02-174674

Cartridge valve

MPN: 02-174674
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-174674?

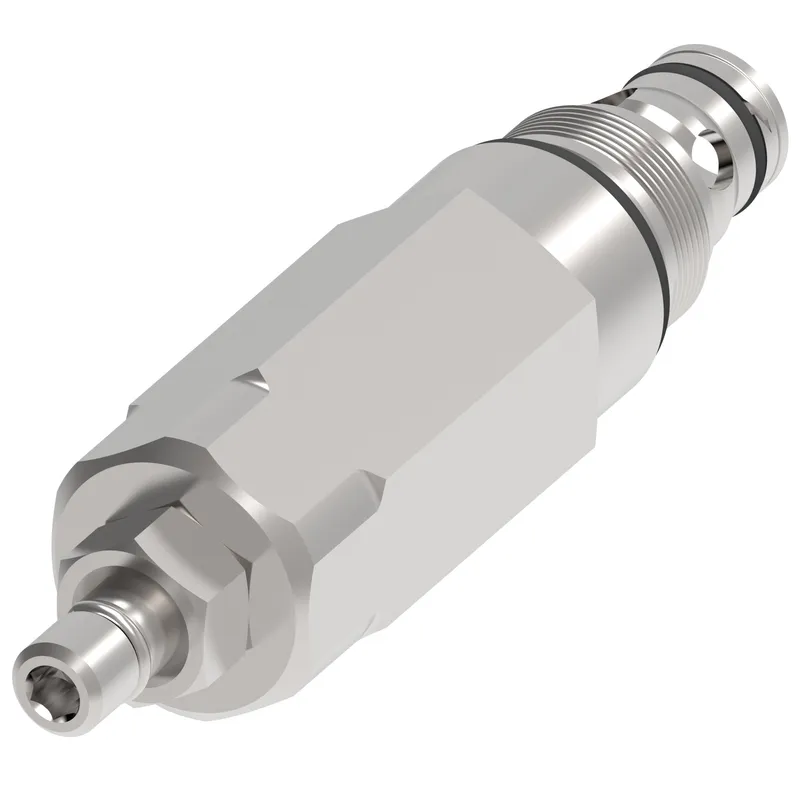

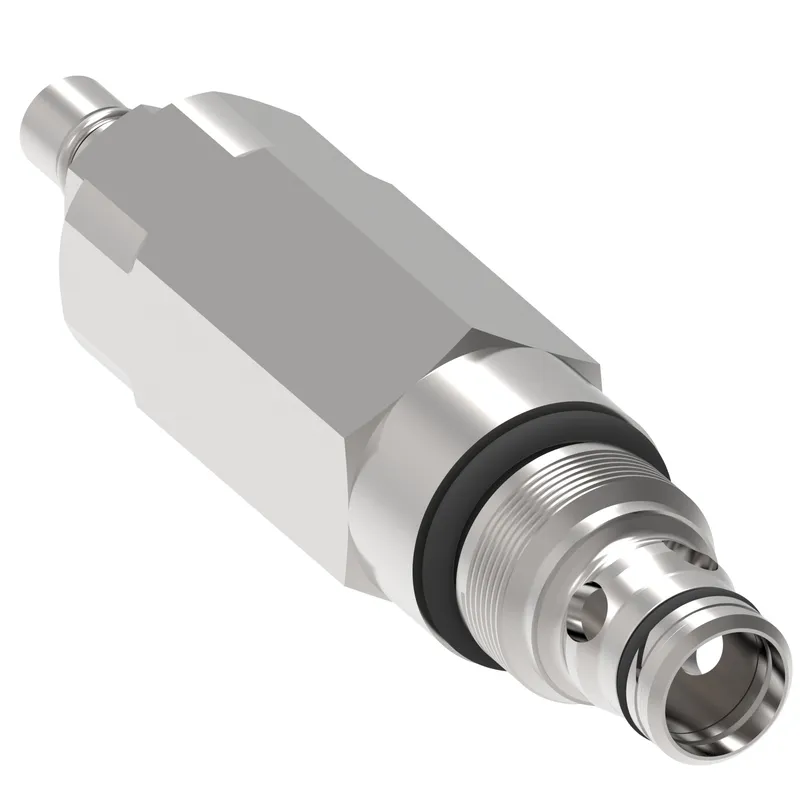

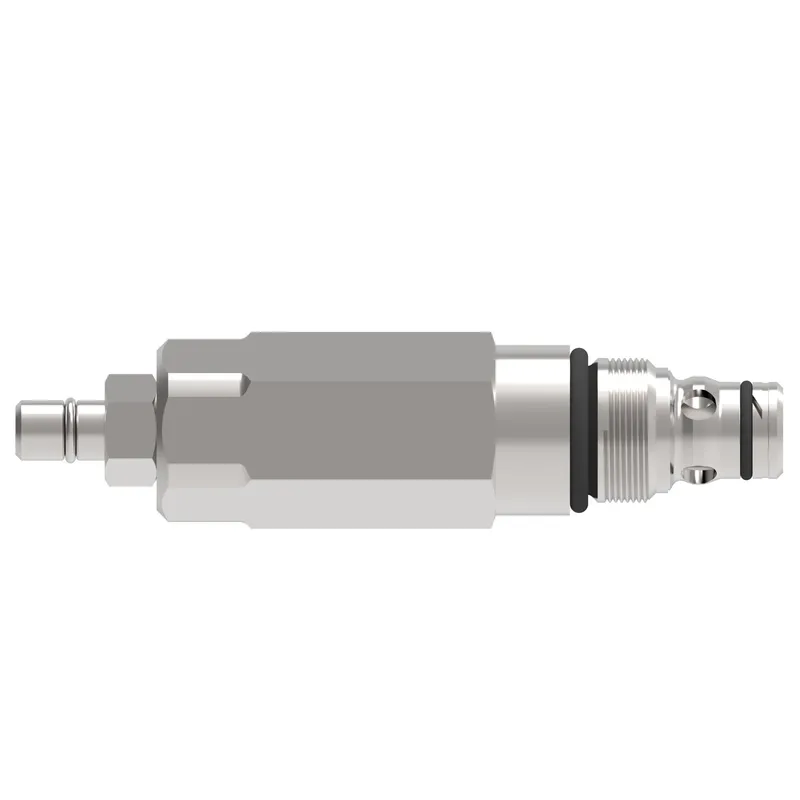

Danfoss RV8-8-S-0-15/9, RV8-8-S-0-15-9, manufacturer part number 02-174674. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-8-2
Factory set pressrue BAR	62.000
Factory set pressrue PSI	902.000
Flow rate GPM	8.00
Flow rate LPM	30.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	100.000
Max working pressure PSI	1454.000
Min working pressure BAR	3.000
Min working pressure PSI	49.000
Model Code 1	RV8-8-S-0-15-9
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Differential Pressure
Port size	None
Port type	Cartridge Only
Product height in	0.870
Product length in	3.940
Product length mm	100.076
Product width in	0.870
Product width mm	22.098 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Poppet
