Danfoss 02-174525

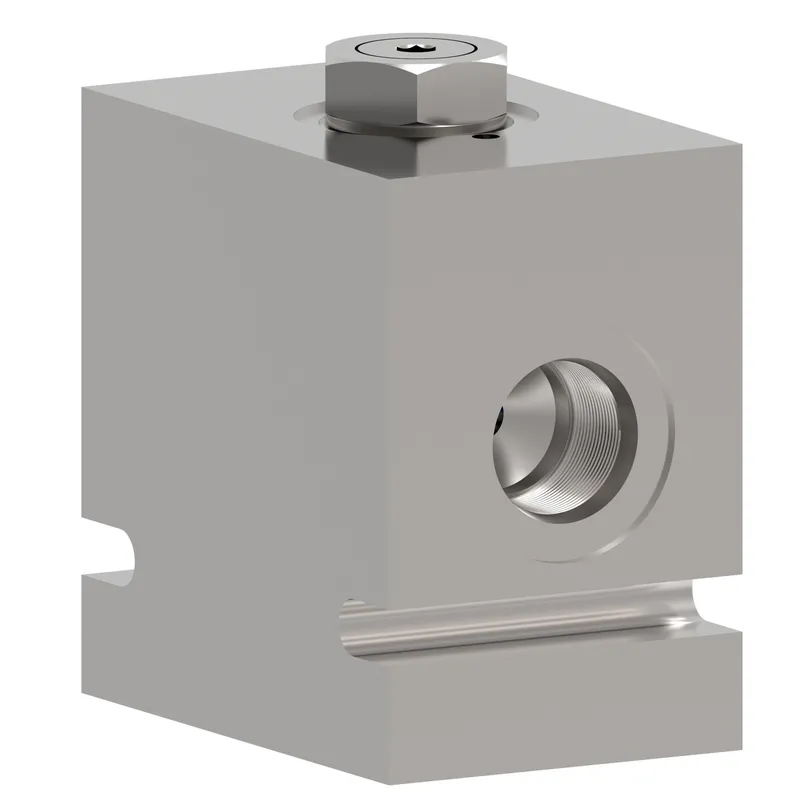

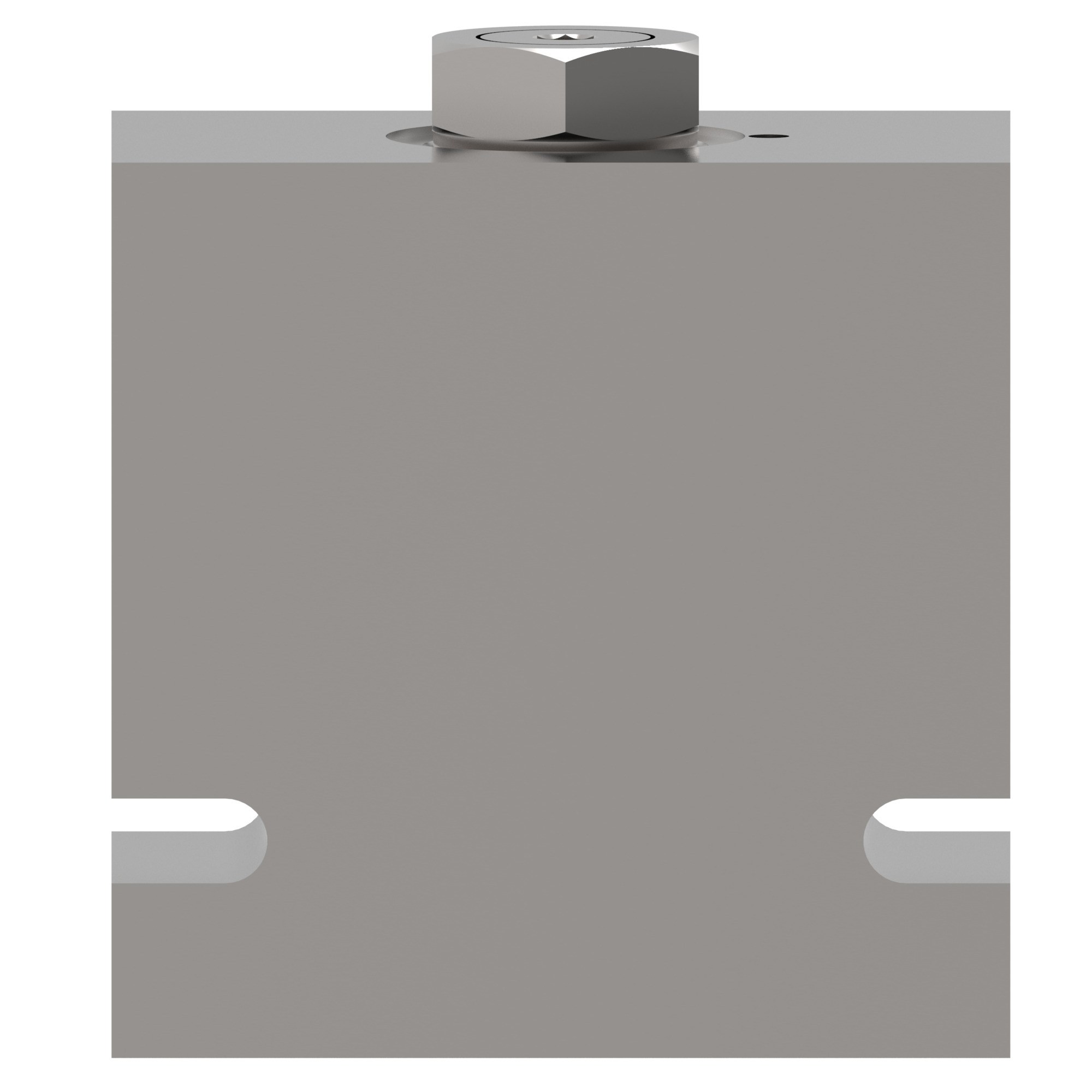

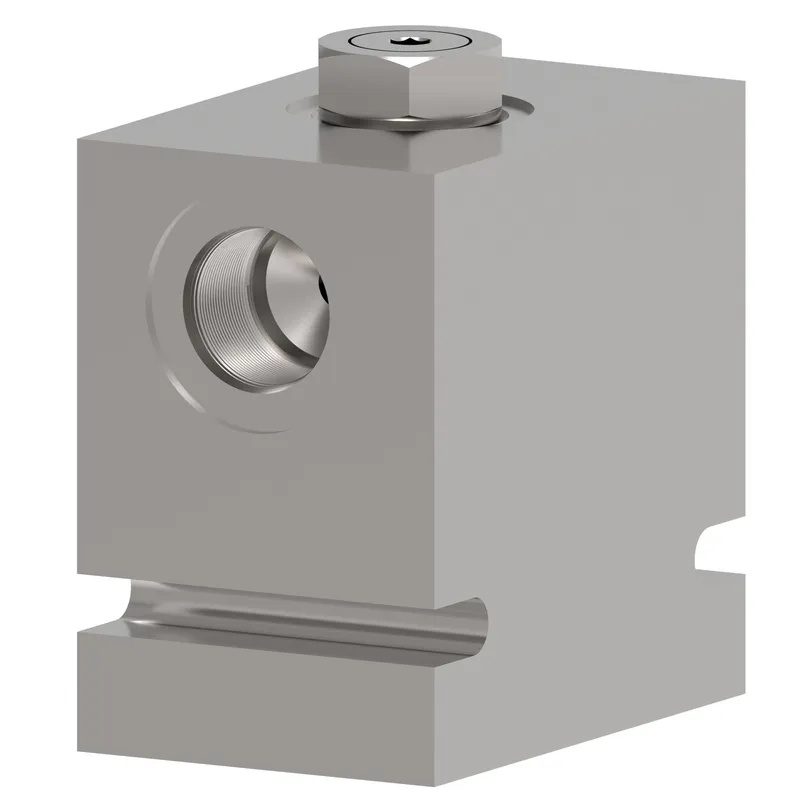

DSV2-8-B-A6T SHUTTLE VALVE, DSV2-8-B-A-6T

MPN: 02-174525
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-174525?

Danfoss DSV2-8-B-A6T SHUTTLE VALVE, DSV2-8-B-A-6T, manufacturer part number 02-174525. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-8-3
Flow rate GPM	20.00
Flow rate LPM	76.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Shuttle Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	5 drops/min
Model Code 1	DSV2-8-B-A-6T
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Pilot piston seal	No
Port size	3/8"
Port type	SAE
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	2.970
Product height mm	75.438
Product length in	2.500
Product length mm	63.500
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/13
Seal type	Buna-N
Special features	None
Style	Ball
