Danfoss 02-172972

PFR5-8-F-0-0.25, PFR5-8-F-0-0.25

MPN: 02-172972
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-172972?

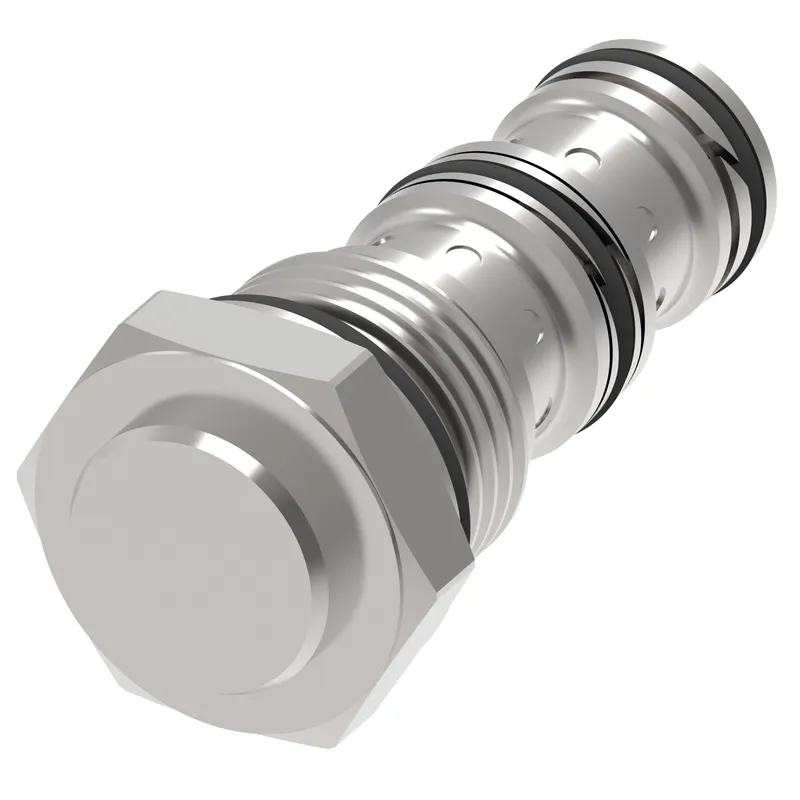

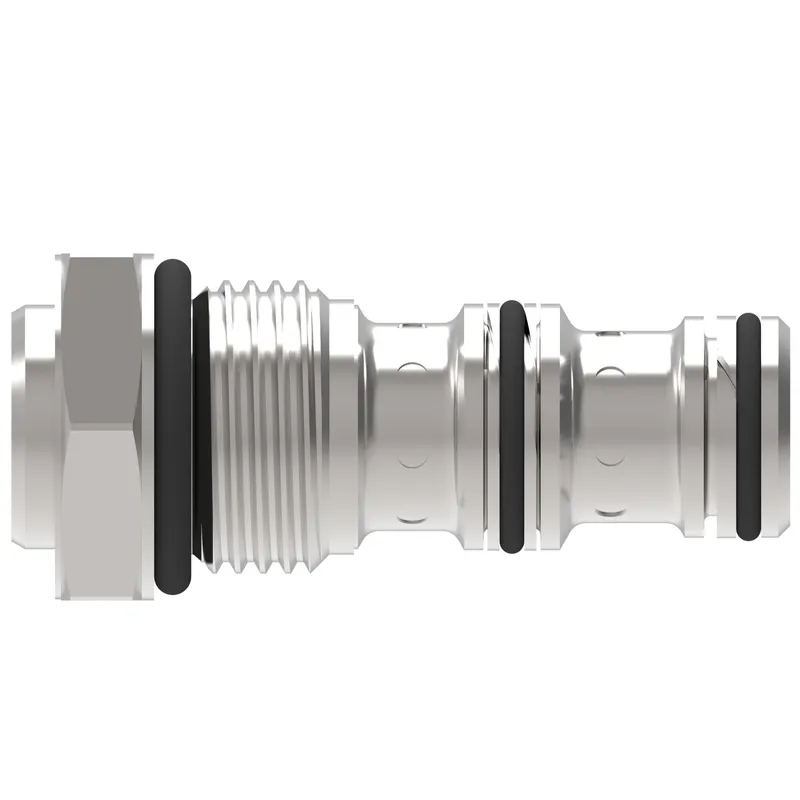

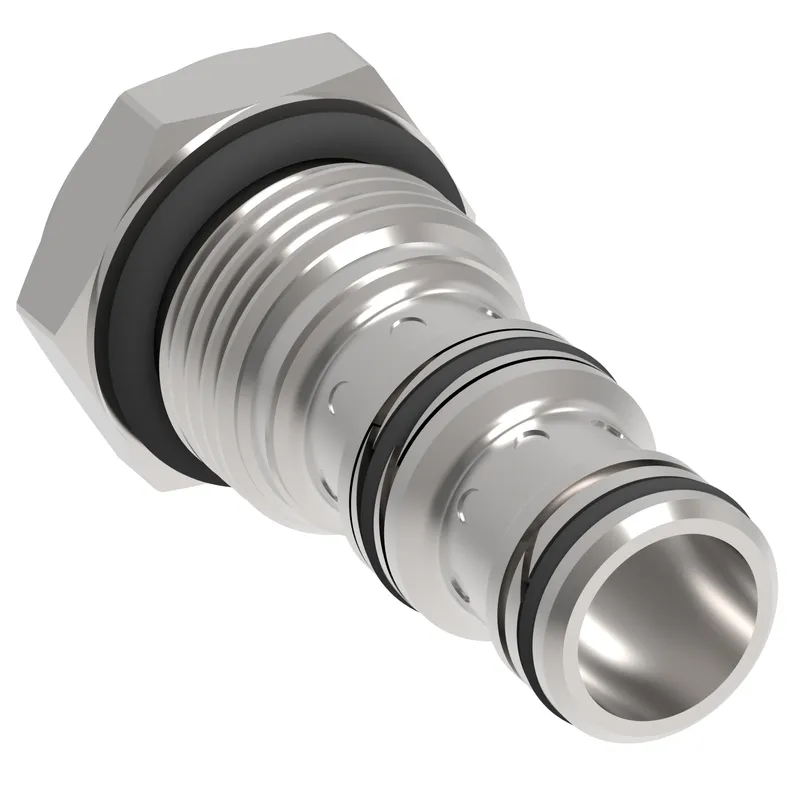

Danfoss PFR5-8-F-0-0.25, PFR5-8-F-0-0.25, manufacturer part number 02-172972. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-8-3
Factory set flow rate GPM	0.250
Factory set flow rate LPM	1.00
Flow rate GPM	3.000
Flow rate LPM	10.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Restrictive flow reg fixed
Housing	No
Installation type	Screw-in Cartridge
Leakage	82 cc/min
Maximum flow rate LPM	2.00
Model Code 1	PFR5-8-F-0-0.25
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	280.00
Pressure rating PSI	4000.00
Product height in	0.870
Product height mm	22.098
Product length in	1.930
Product length mm	49.022
Product width in	0.870
Product width mm	22.098 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	34-41 Nm
Torque steel cavity	34-41 Nm

02-172972: frequently asked questions

When can 02-172972 be shipped?

02-172972 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-172972 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-172972 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-172972, subject to availability and destination.
