Danfoss 02-172545

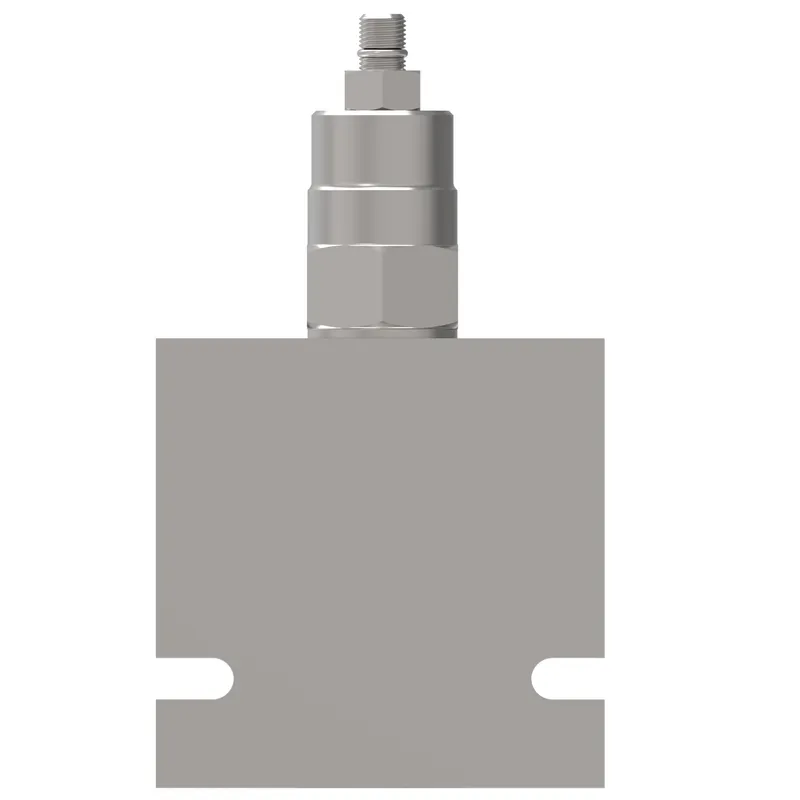

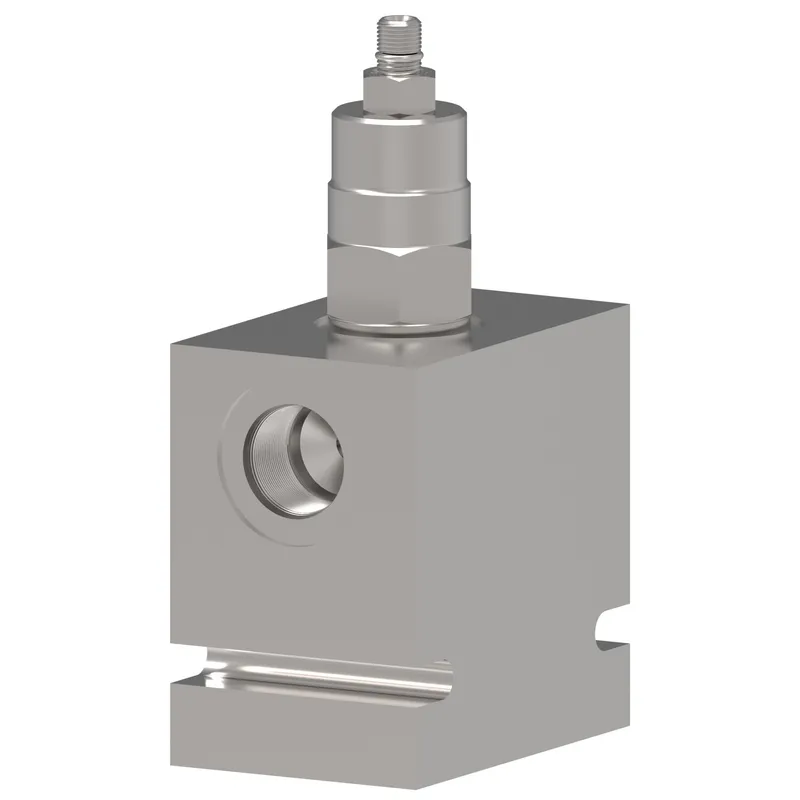

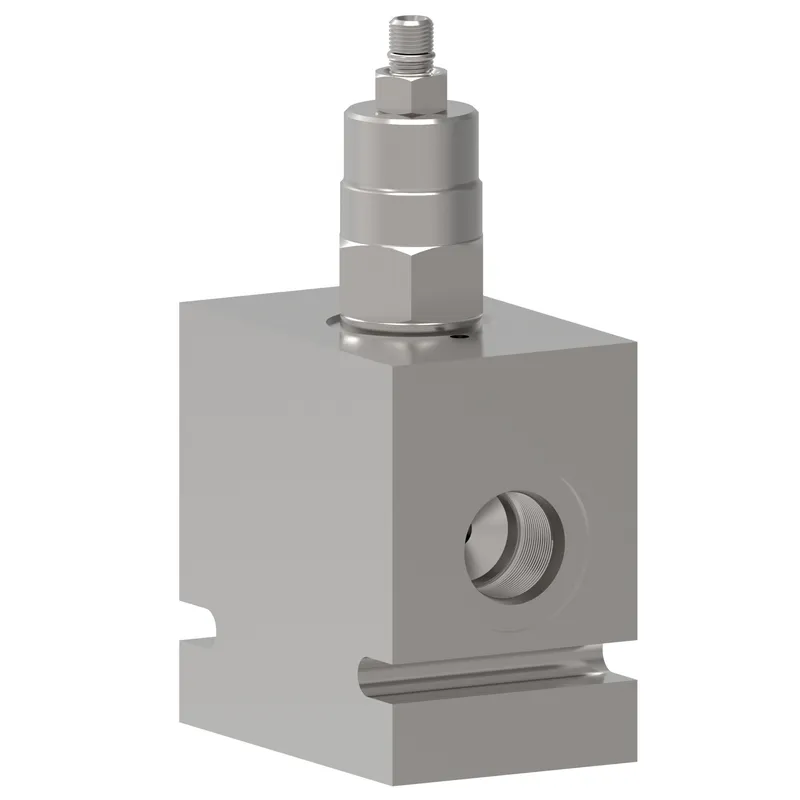

CBV1-12-S-IA12T-A-30/20 CNTRBLNCE VLV4-1, CBV1-12-S-I-A-12T-A-30-20

MPN: 02-172545
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-172545?

Danfoss CBV1-12-S-IA12T-A-30/20 CNTRBLNCE VLV4-1, CBV1-12-S-I-A-12T-A-30-20, manufacturer part number 02-172545. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-12-3S
Flow rate GPM	30.00
Flow rate LPM	114.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Counterbalance Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	5 dpm
Max pilot adjust p BAR	37.000
Max pilot adjust p PSI	544.000
Max relief press BAR	350.000
Max relief press PSI	5000.000
Min pilot adjust p BAR	31.000
Min pilot adjust p PSI	445.000
Model Code 1	CBV1-12-S-I-A-12T-A-30-20
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot ratio	4:1
Port size	3/4"
Port type	SAE
Pressure rating BAR	350.000
Pressure rating PSI	5000.000
Product height in	6.370
Product height mm	161.798
Product length in	4.000
Product length mm	101.600
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Pilot assisted relief with check
Valve torque into cavity	102-115 Nm
