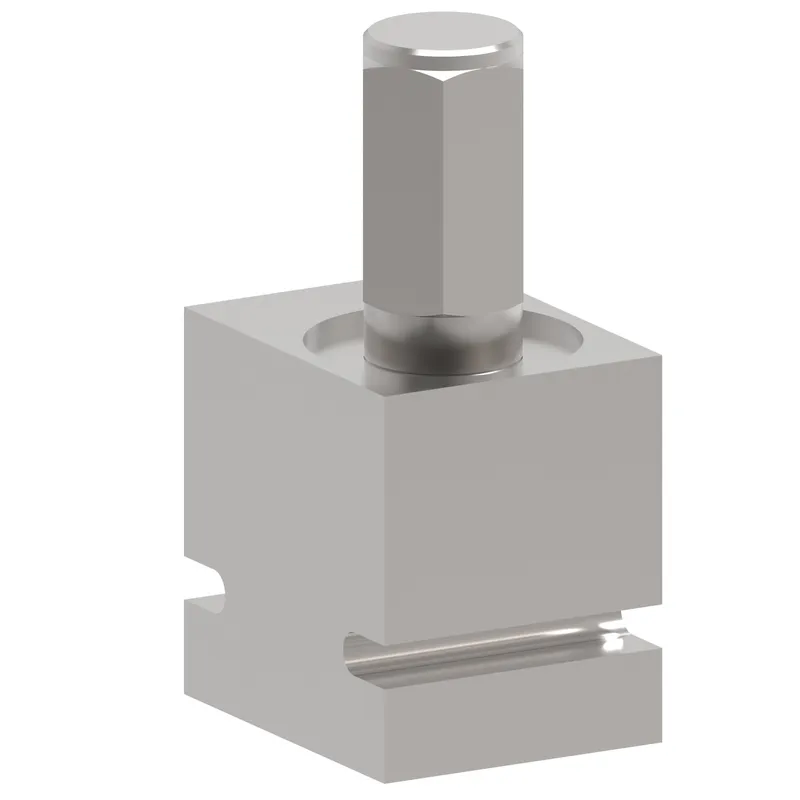

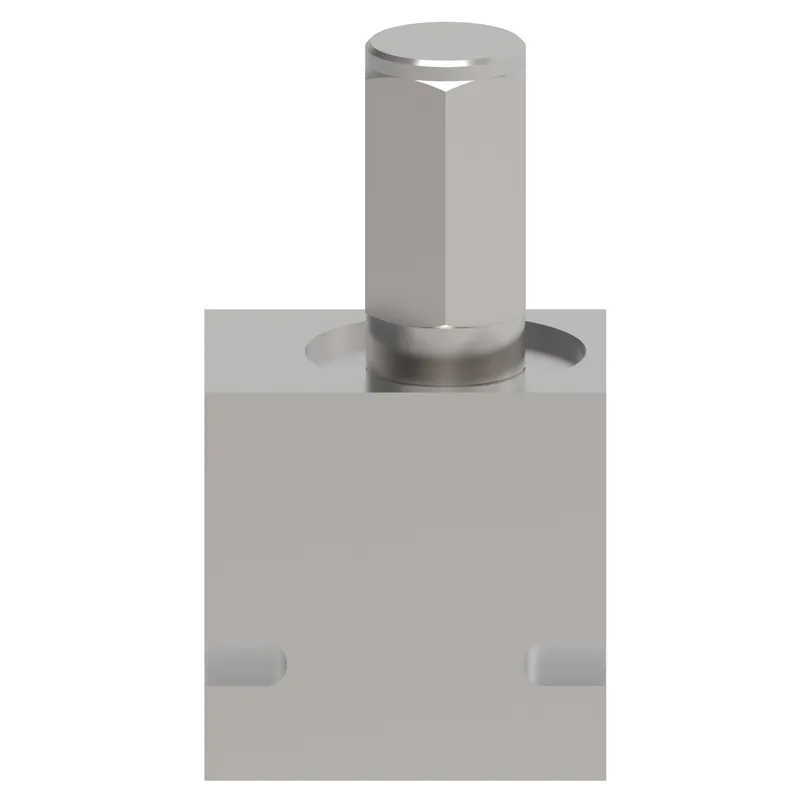

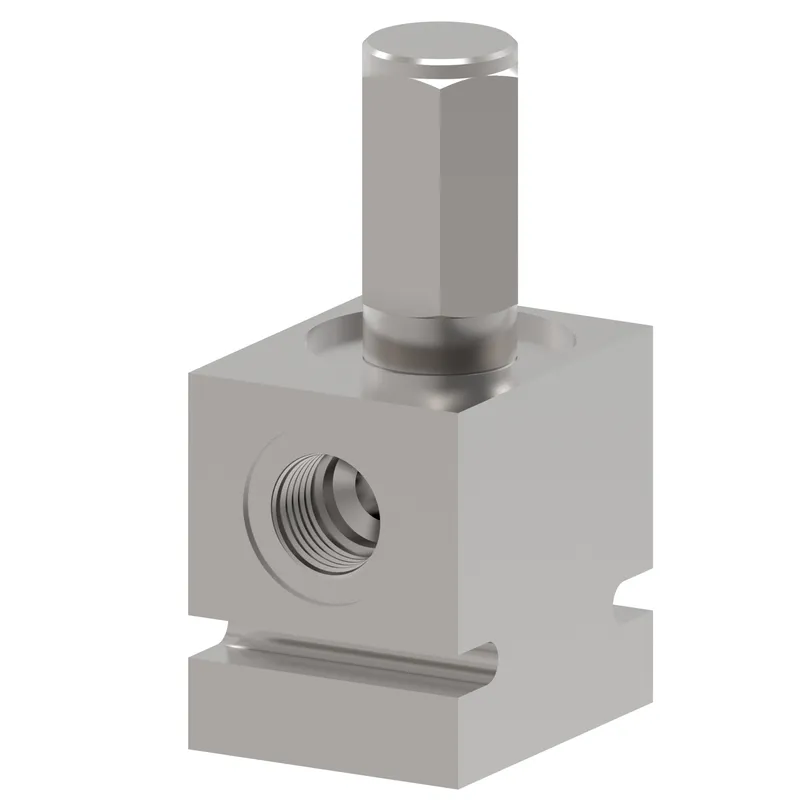

Danfoss 02-171619

PRV2-10-F-6T-3/2.5, PRV2-10-F-A-6T-3-2.5

MPN: 02-171619
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-171619?

Danfoss PRV2-10-F-6T-3/2.5, PRV2-10-F-A-6T-3-2.5, manufacturer part number 02-171619. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-3
Factory set pressrue BAR	17.000
Factory set pressrue PSI	250.000
Flow rate GPM	10.00
Flow rate LPM	38.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Reducing/Relieving Valves
Housing	Yes
Housing material	Steel
Installation type	Screw-in Cartridge
Leakage	820 cc/min
Max working pressure BAR	20.000
Max working pressure PSI	291.000
Min working pressure BAR	4.000
Min working pressure PSI	51.000
Model Code 1	PRV2-10-F-A-6T-3-2.5
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	3/8"
Port type	SAE
Product height in	6.300
Product height mm	160.020
Product length in	3.000
Product length mm	76.200
Product width in	1.760
Product width mm	44.704 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
