Danfoss 02-170285

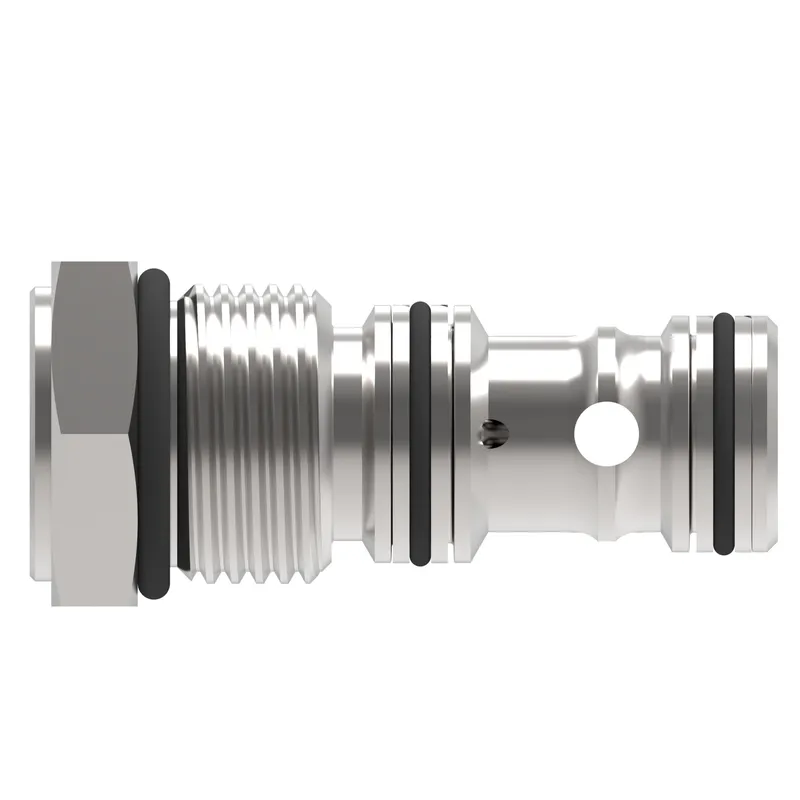

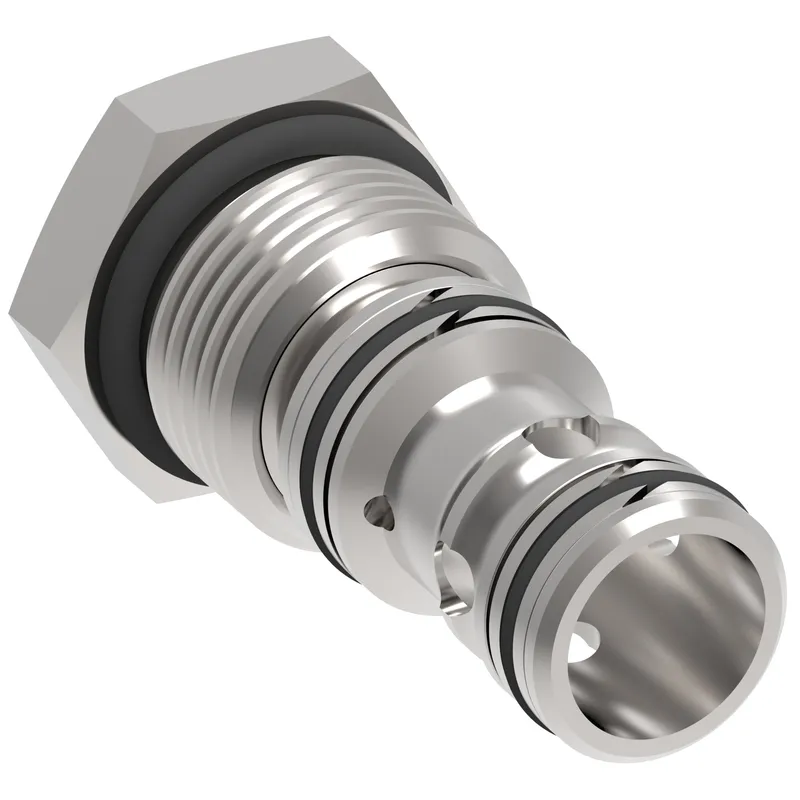

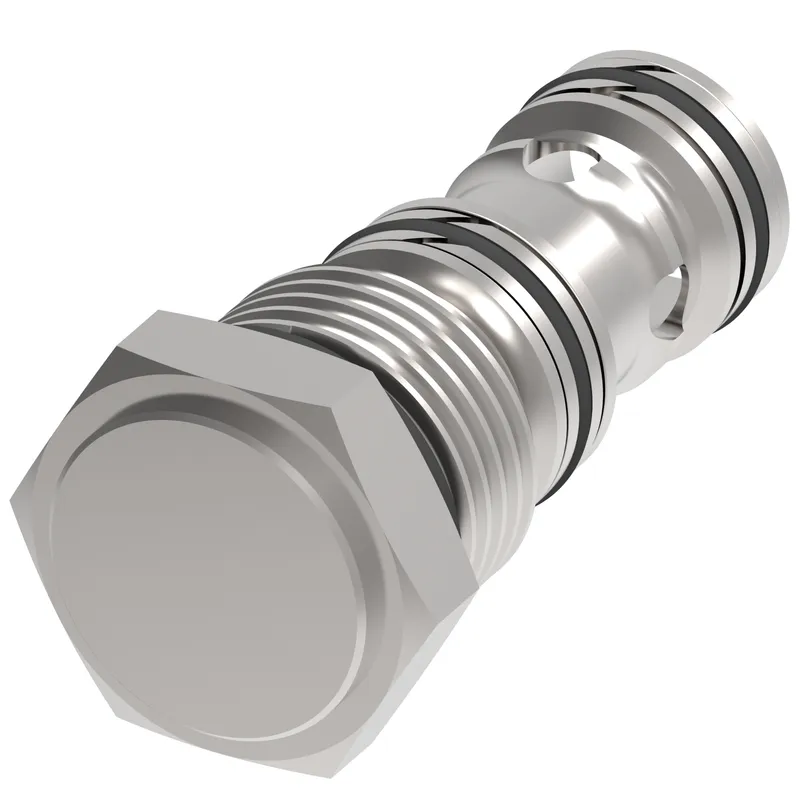

ADV1-16V-0-100 ACCUM DISCHARGE CART, ADV1-16V-0-100

MPN: 02-170285
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-170285?

Danfoss ADV1-16V-0-100 ACCUM DISCHARGE CART, ADV1-16V-0-100, manufacturer part number 02-170285. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-16-3S
Factory set pressrue BAR	7.000
Factory set pressrue PSI	100.000
Flow rate GPM	8.00
Flow rate LPM	30.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Accumulator Discharge Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	4.000
Max working pressure PSI	58.000
Min working pressure BAR	3.000
Min working pressure PSI	44.000
Model Code 1	ADV1-16V-0-100
Number of housing ports	3
Number of valve ports	3
Operating temperature	-30 C to 90 C (-22 to 194 F)
Operation	Pilot operated
Pilot ratio	100:1
Port size	None
Port type	Cartridge Only
Product height in	2.640
Product height mm	67.056
Product length in	1.500
Product length mm	38.100
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/16/13
Seal type	Viton
Special features	None
Style	Poppet
