Danfoss 02-170185

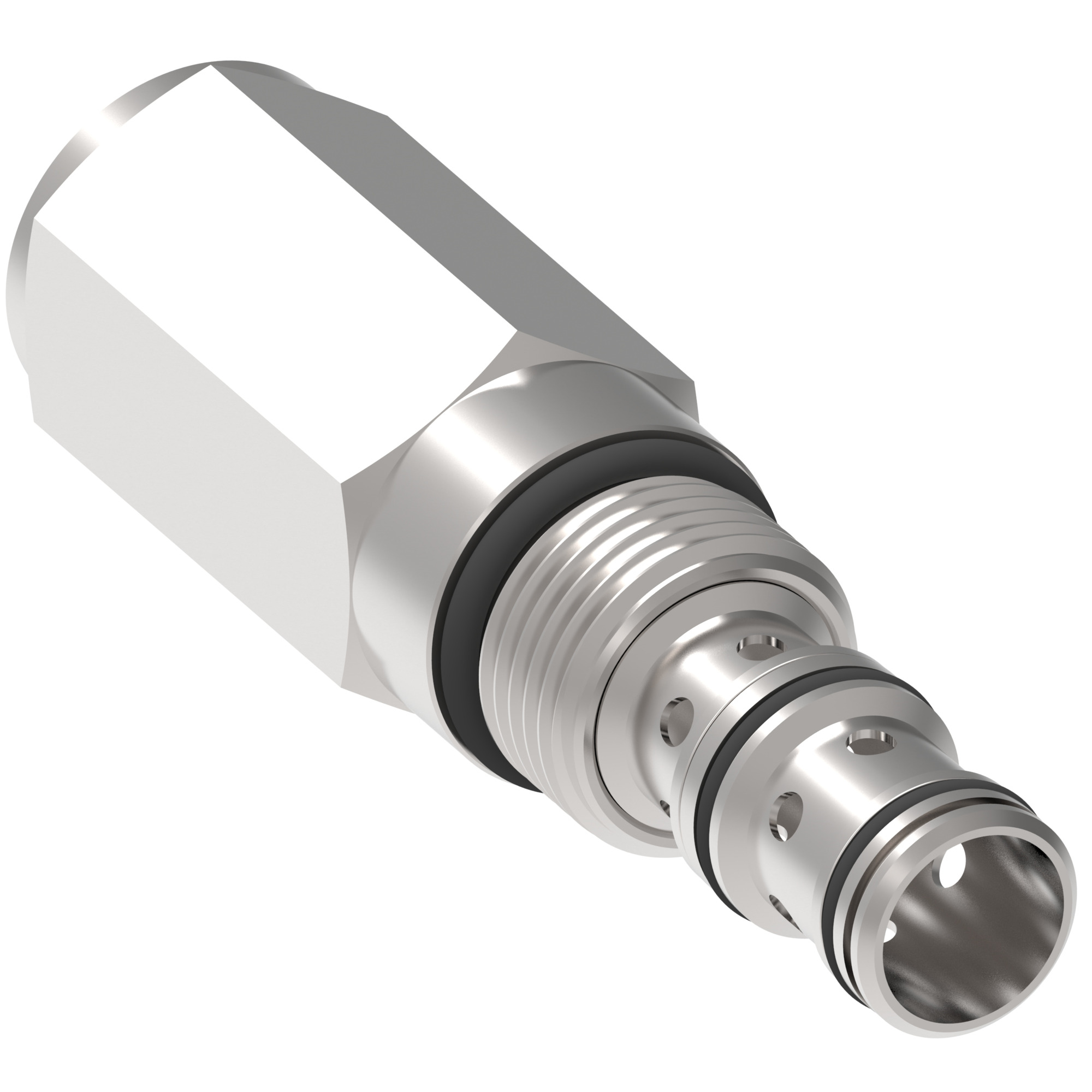

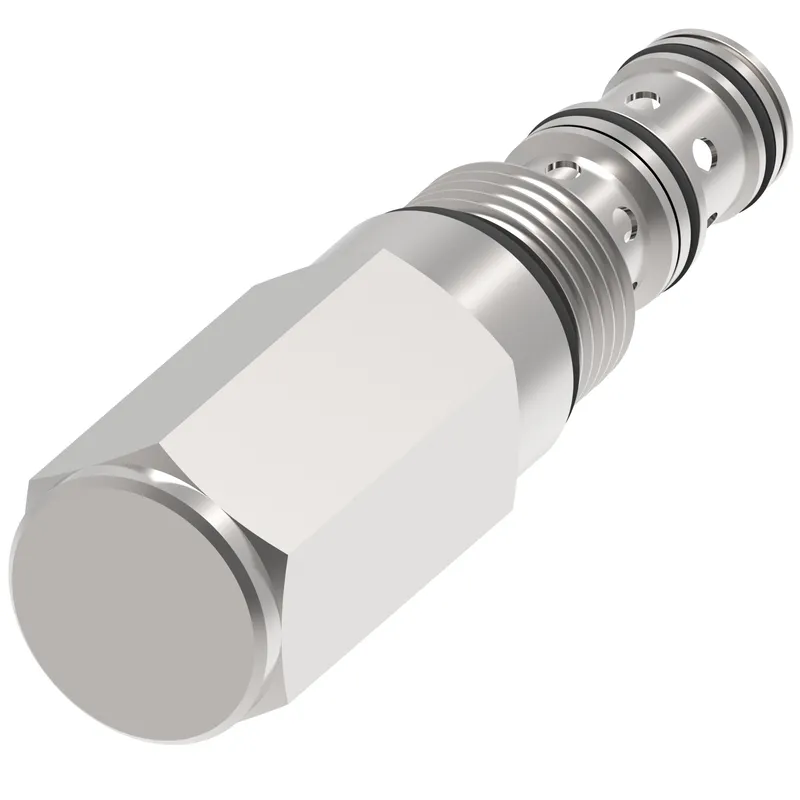

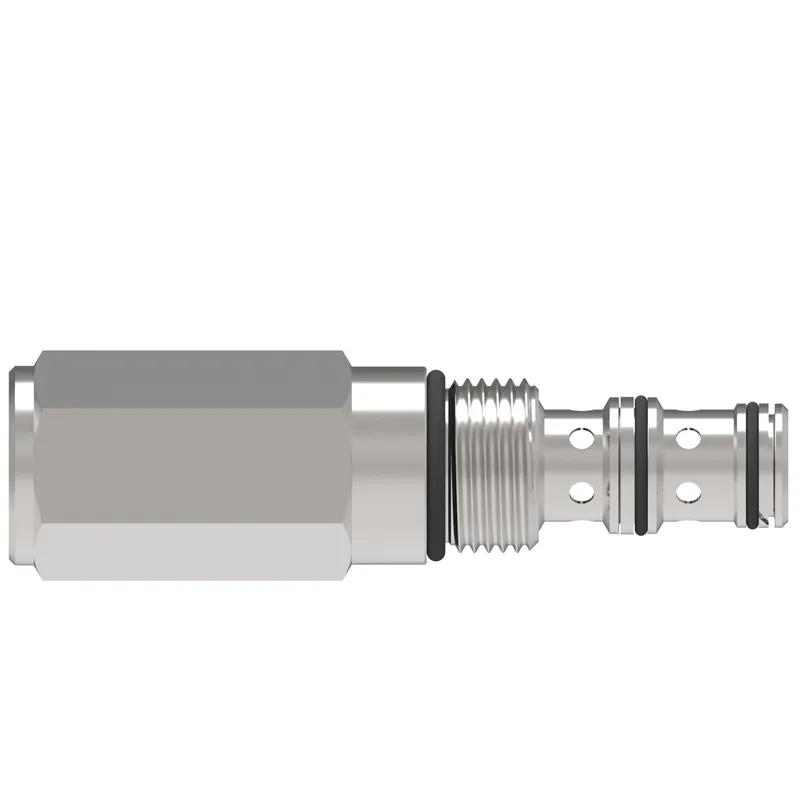

PRV1-10-F-0-24/23, PRV1-10-F-0-24-23

MPN: 02-170185
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-170185?

Danfoss PRV1-10-F-0-24/23, PRV1-10-F-0-24-23, manufacturer part number 02-170185. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-3
Factory set pressrue BAR	159.000
Factory set pressrue PSI	2306.000
Flow rate GPM	4.00
Flow rate LPM	15.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Reducing/Relieving
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Max working pressure BAR	165.000
Max working pressure PSI	2399.000
Min working pressure BAR	30.000
Min working pressure PSI	436.000
Model Code 1	PRV1-10-F-0-24-23
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product height mm	25.400
Product length in	3.890
Product length mm	98.806
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool

02-170185: frequently asked questions

When can 02-170185 be shipped?

02-170185 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-170185 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-170185 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-170185, subject to availability and destination.
