Danfoss 02-168979

Cartridge valve

MPN: 02-168979
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-168979?

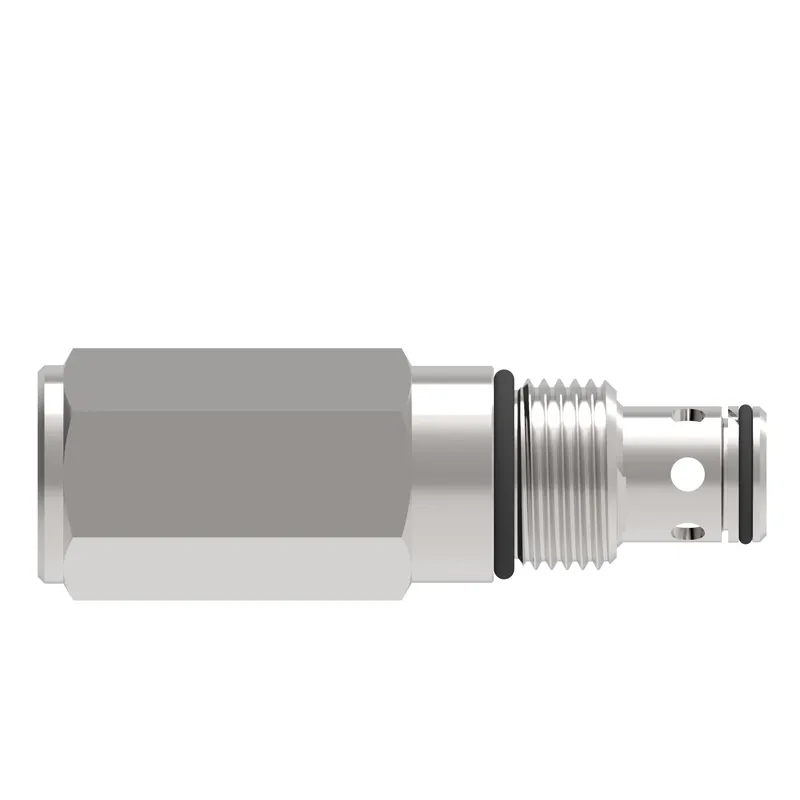

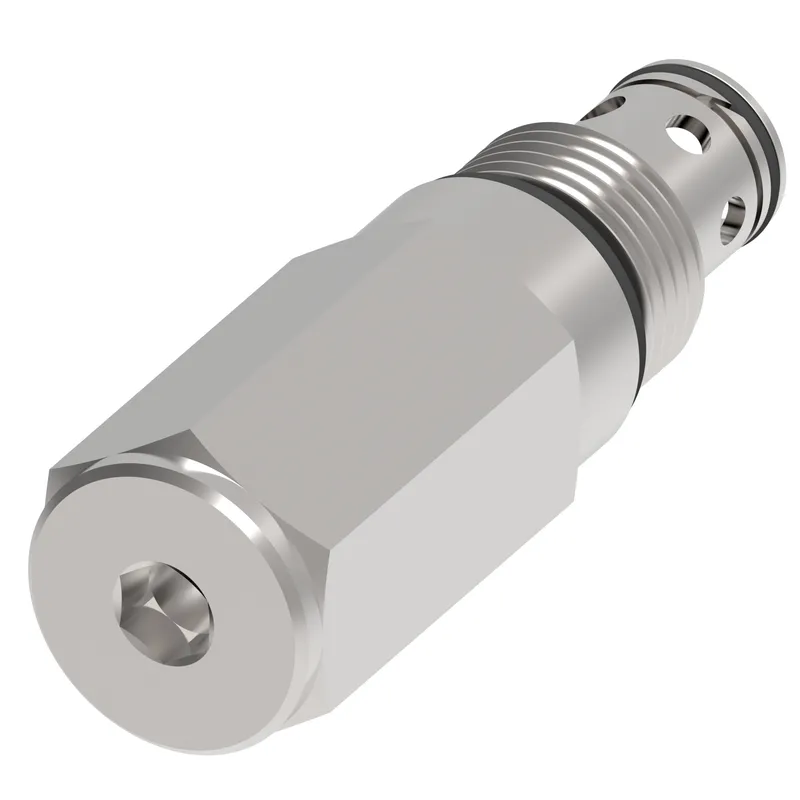

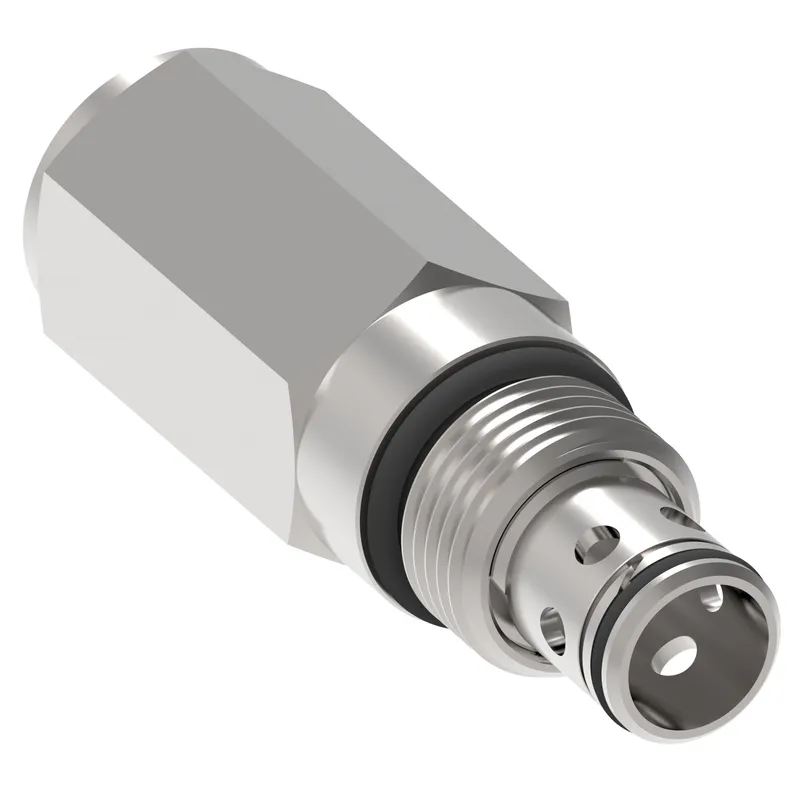

Danfoss RV1-10-I-0-18/17.5, RV1-10-N-I-0-18-17.5, manufacturer part number 02-168979. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Internal
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set pressrue BAR	121.000
Factory set pressrue PSI	1754.000
Flow rate GPM	8.00
Flow rate LPM	30.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	124.000
Max working pressure PSI	1803.000
Min working pressure BAR	17.000
Min working pressure PSI	247.000
Model Code 1	RV1-10-N-I-0-18-17.5
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product length in	3.330
Product length mm	84.582
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Poppet
