Danfoss 02-167510

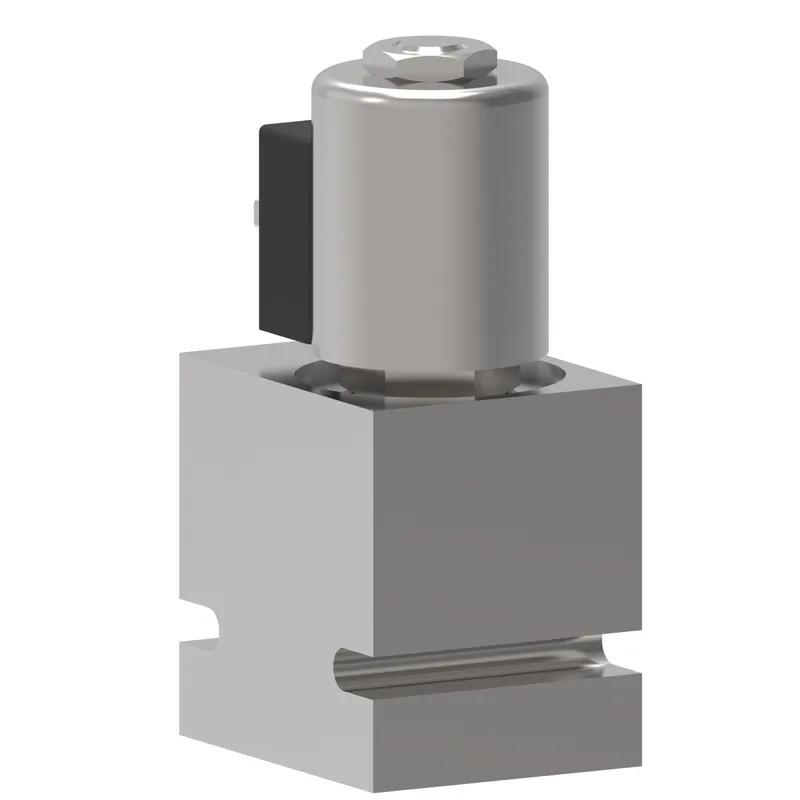

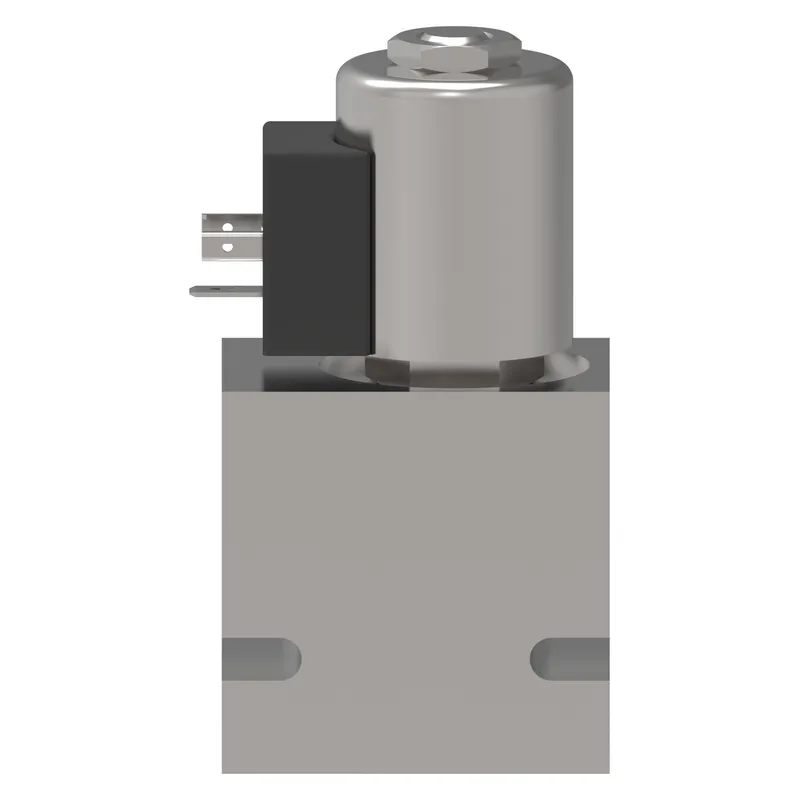

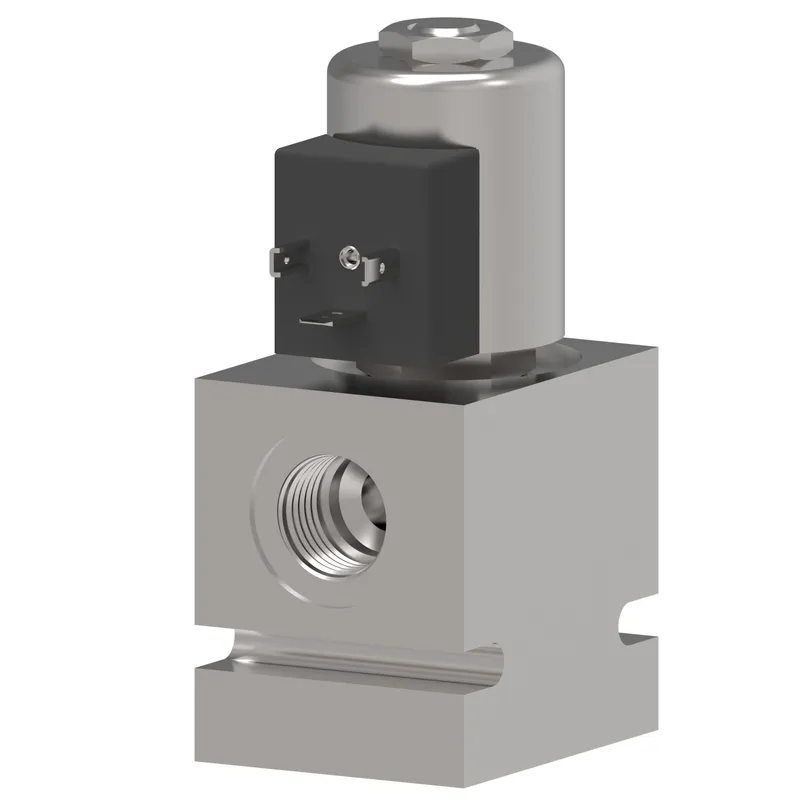

SV1-16-C-12T-115AG 2/2 SOL/OP VLV 115VAC, SV1-16-C-12T-115AG

MPN: 02-167510
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-167510?

Danfoss SV1-16-C-12T-115AG 2/2 SOL/OP VLV 115VAC, SV1-16-C-12T-115AG, manufacturer part number 02-167510. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-16-2
Coil series	J Series
Coil termination	DIN 43650
Diode	No
Flow rate GPM	35.00
Flow rate LPM	132.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	Less than 5 drops/min
Model Code 1	SV1-16-C-12T-115AG
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port size	3/4"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	6.000
Product length in	3.500
Product length mm	88.900
Product width in	2.500
Product width mm	63.500 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	2-Way, 2-Position, Poppet, NC
Torque into aluminium cavity	108-122 Nm
Voltage	115 V
Voltage type	AC

02-167510: frequently asked questions

When can 02-167510 be shipped?

02-167510 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-167510 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-167510 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-167510, subject to availability and destination.
