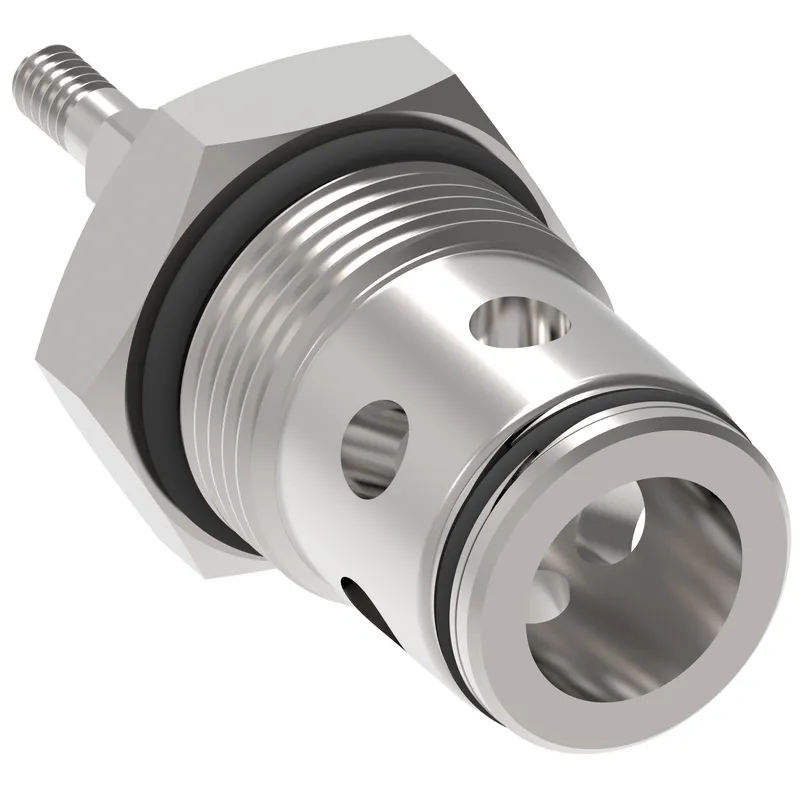

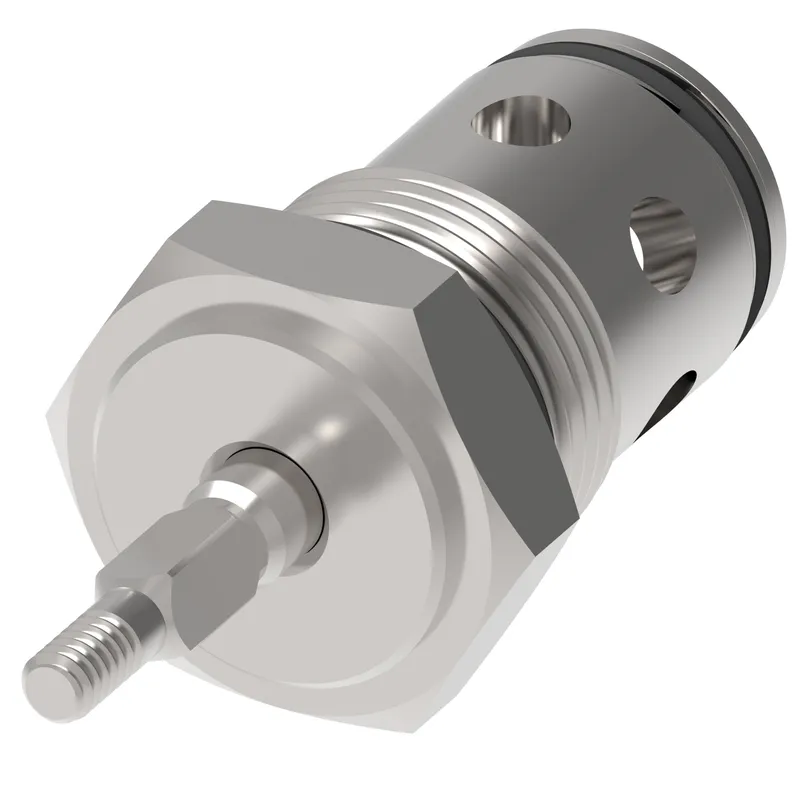

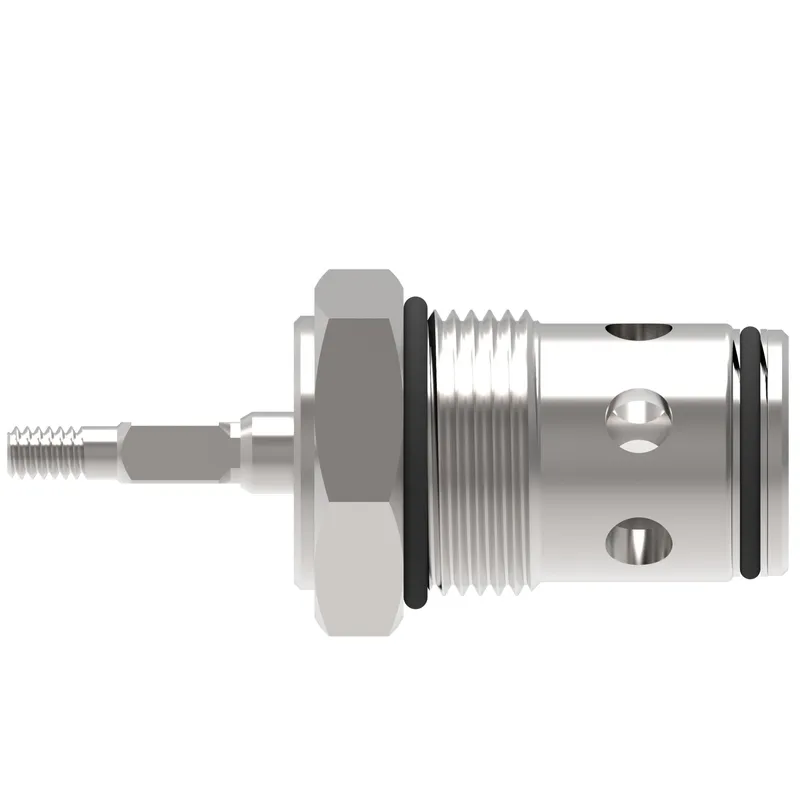

Danfoss 02-165972

MRV2-16-0-0-15, MRV2-16-0-0-15

MPN: 02-165972
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165972?

Danfoss MRV2-16-0-0-15, MRV2-16-0-0-15, manufacturer part number 02-165972. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Stem
Brand	Vickers by Danfoss
Cavity	C-16-2
Factory set flow rate GPM	7.500
Factory set flow rate LPM	28.00
Flow rate GPM	45.000
Flow rate LPM	170.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Manual Rotary Flow Control
Housing	No
Installation type	Screw-in Cartridge
Leakage	82 cc/min
Maximum flow rate LPM	15.00
Model Code 1	MRV2-16-0-0-15
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	2.400
Product height mm	60.960
Product length in	3.560
Product length mm	90.424
Product width in	2.400
Product width mm	60.960 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	108-122 Nm
Torque steel cavity	139-149 Nm
