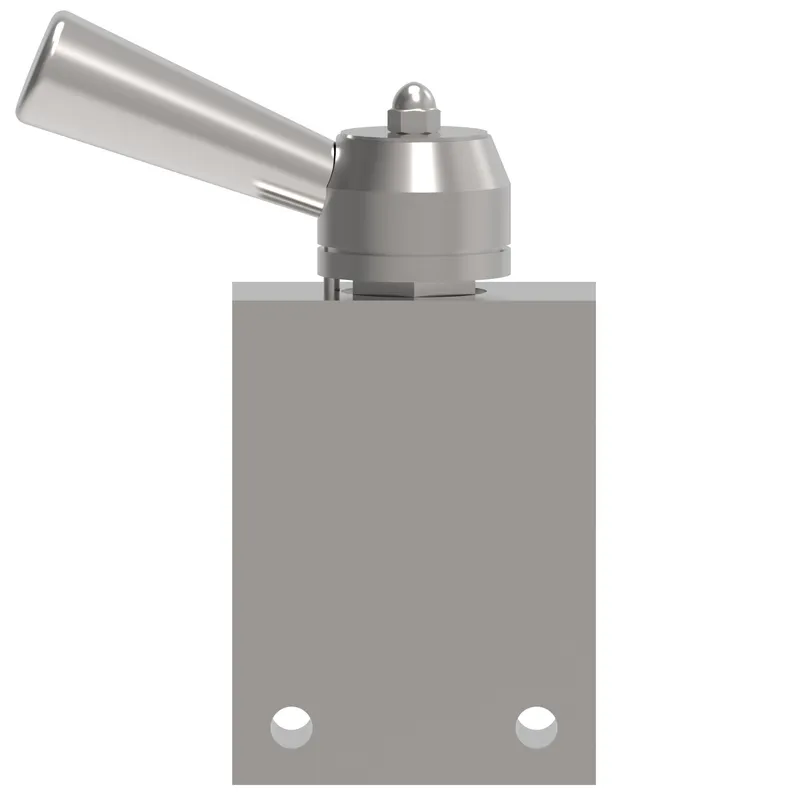

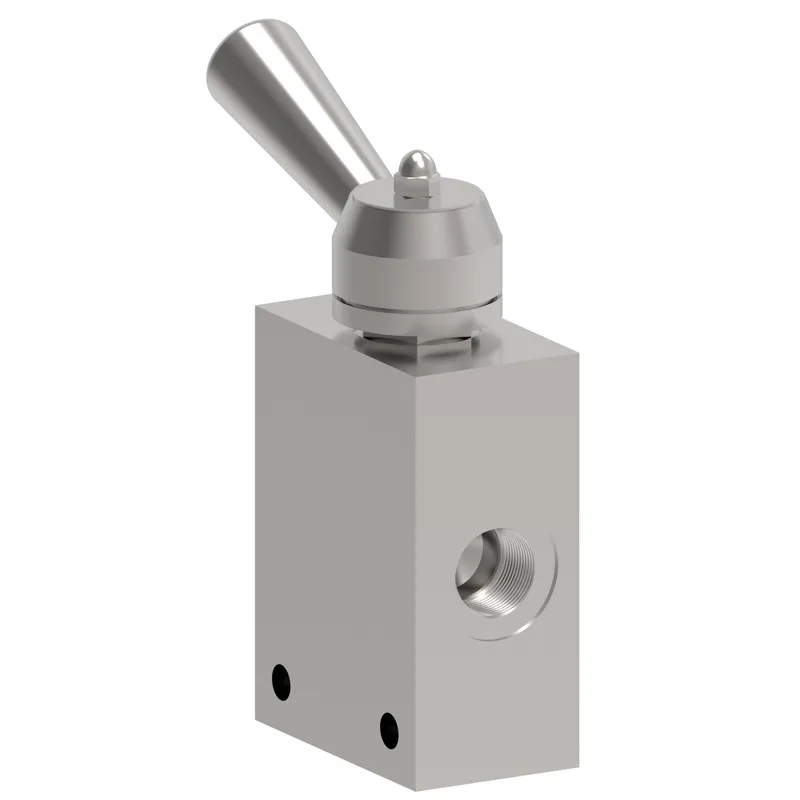

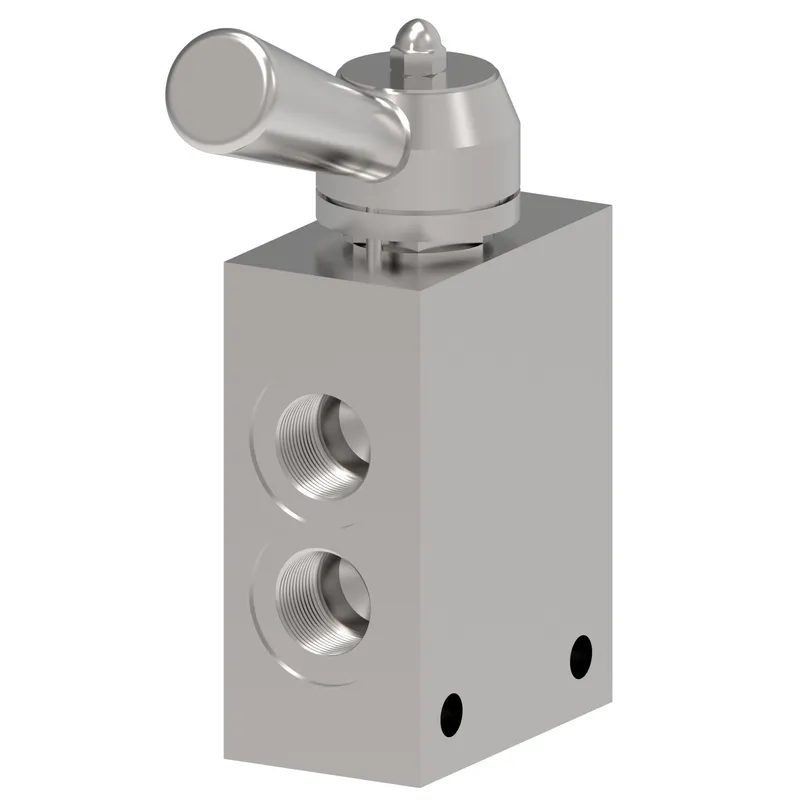

Danfoss 02-165931

MRV5-10-D-A06T-00, MRV5-10-D-A-6T

MPN: 02-165931
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165931?

Danfoss MRV5-10-D-A06T-00, MRV5-10-D-A-6T, manufacturer part number 02-165931. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation option	None
Adjustment type	Lever (3-position detent)
Brand	Vickers by Danfoss
Cavity	C-10-4
Detent option	Yes
Flow rate GPM	3.00
Flow rate LPM	11.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Manual semi-rotary valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Model Code 1	MRV5-10-D-A-6T
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	3/8"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.630
Product height mm	117.602
Product length in	3.000
Product length mm	76.200
Product width in	2.000
Product width mm	50.800 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Style	4-Way 3-Position
Torque into aluminium cavity	47-54 Nm
Torque into steel cavity	68-75 Nm

02-165931: frequently asked questions

When can 02-165931 be shipped?

02-165931 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-165931 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-165931 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-165931, subject to availability and destination.
