Danfoss
02-165877
Danfoss 02-165912
MRV4-16-D-12T, MRV4-16-D-12T
- MPN
- 02-165912
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-165912?

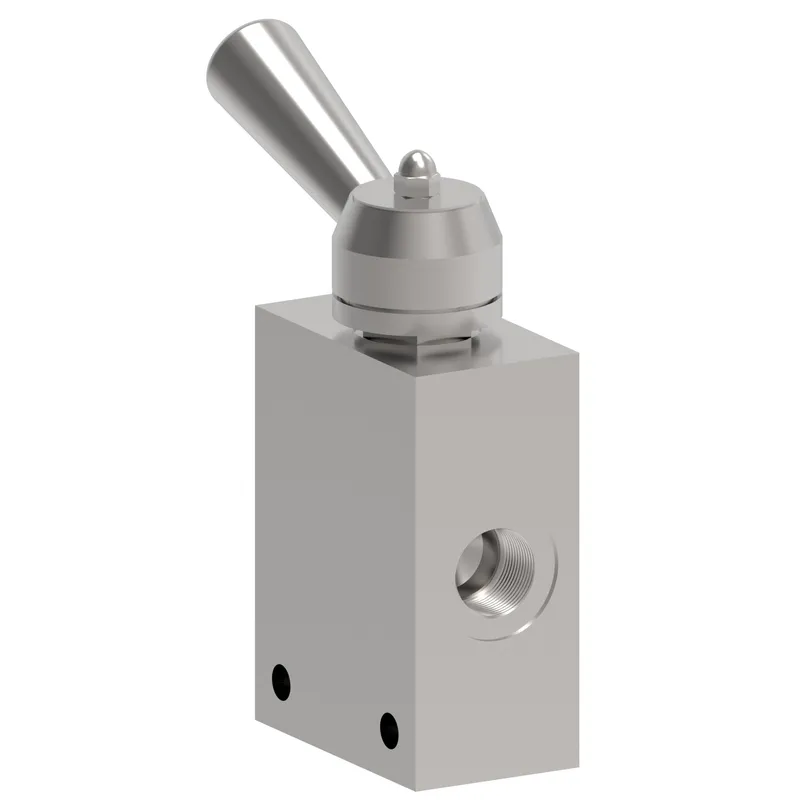

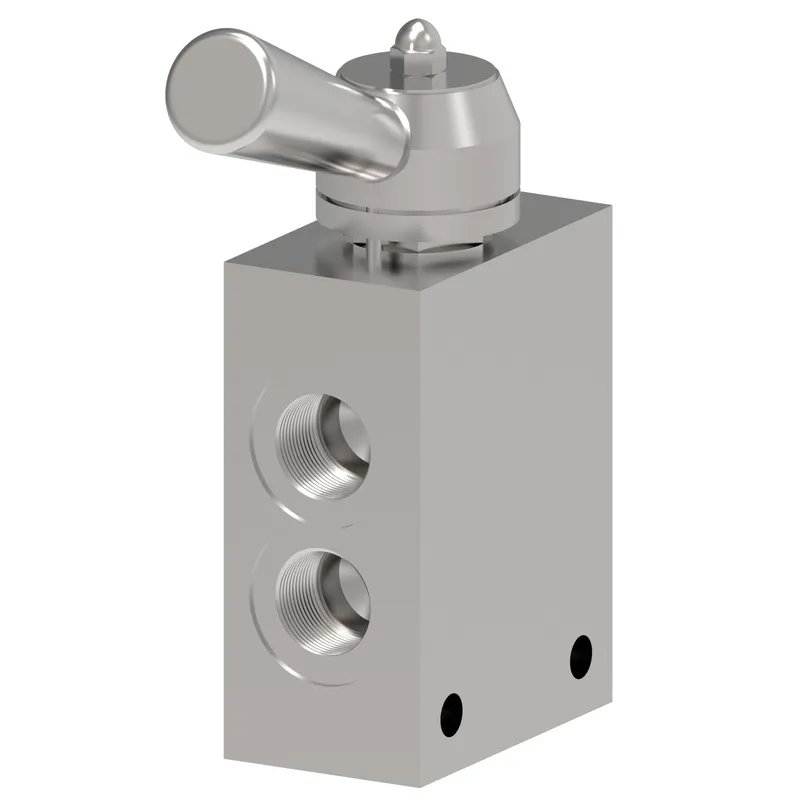

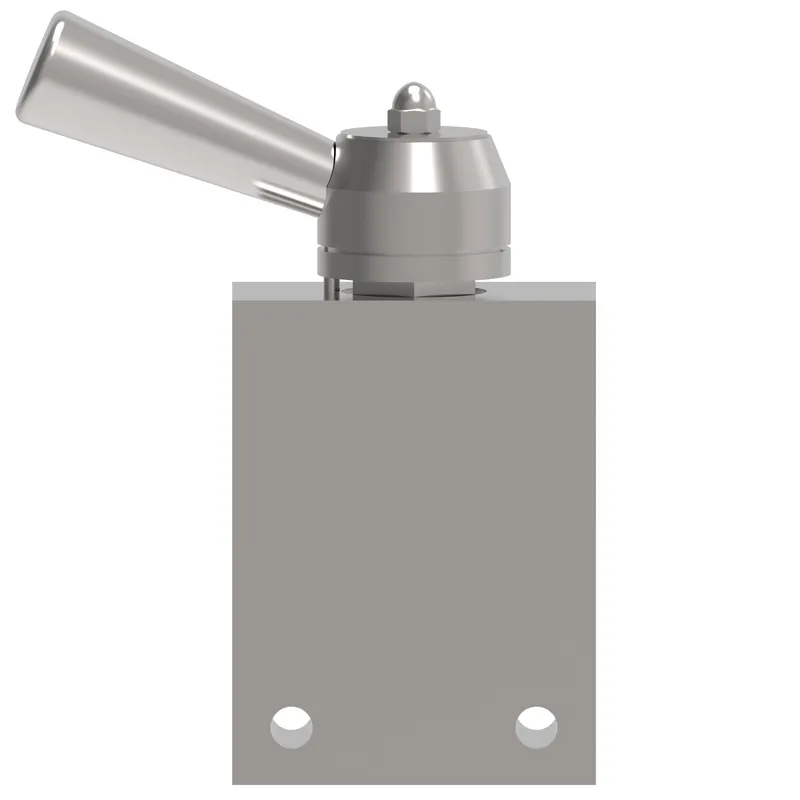

Danfoss MRV4-16-D-12T, MRV4-16-D-12T, manufacturer part number 02-165912. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation option | None |
| Adjustment type | Lever (3-position detent) |
| Brand | Vickers by Danfoss |
| Cavity | C-16-4 |
| Detent option | Yes |
| Flow rate GPM | 12.00 |
| Flow rate LPM | 45.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Manual semi-rotary valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 655 cc/min |
| Model Code 1 | MRV4-16-D-12T |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port size | 3/4" |
| Port type | SAE |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 7.600 |
| Product height mm | 193.040 |
| Product length in | 4.500 |
| Product length mm | 114.300 |
| Product width in | 2.500 |
| Product width mm | 63.500 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Style | 4-Way 3-Position |
| Torque into aluminium cavity | 108-122 Nm |
| Torque into steel cavity | 136-149 Nm |
02-165912: frequently asked questions
When can 02-165912 be shipped?
02-165912 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-165912 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-165912 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-165912, subject to availability and destination.
