Danfoss 02-165716

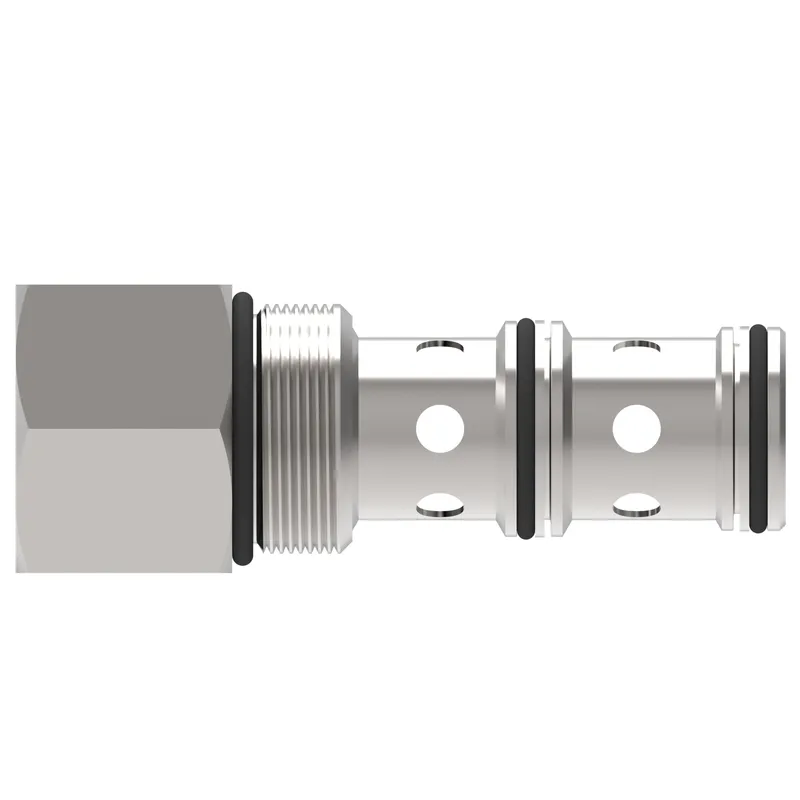

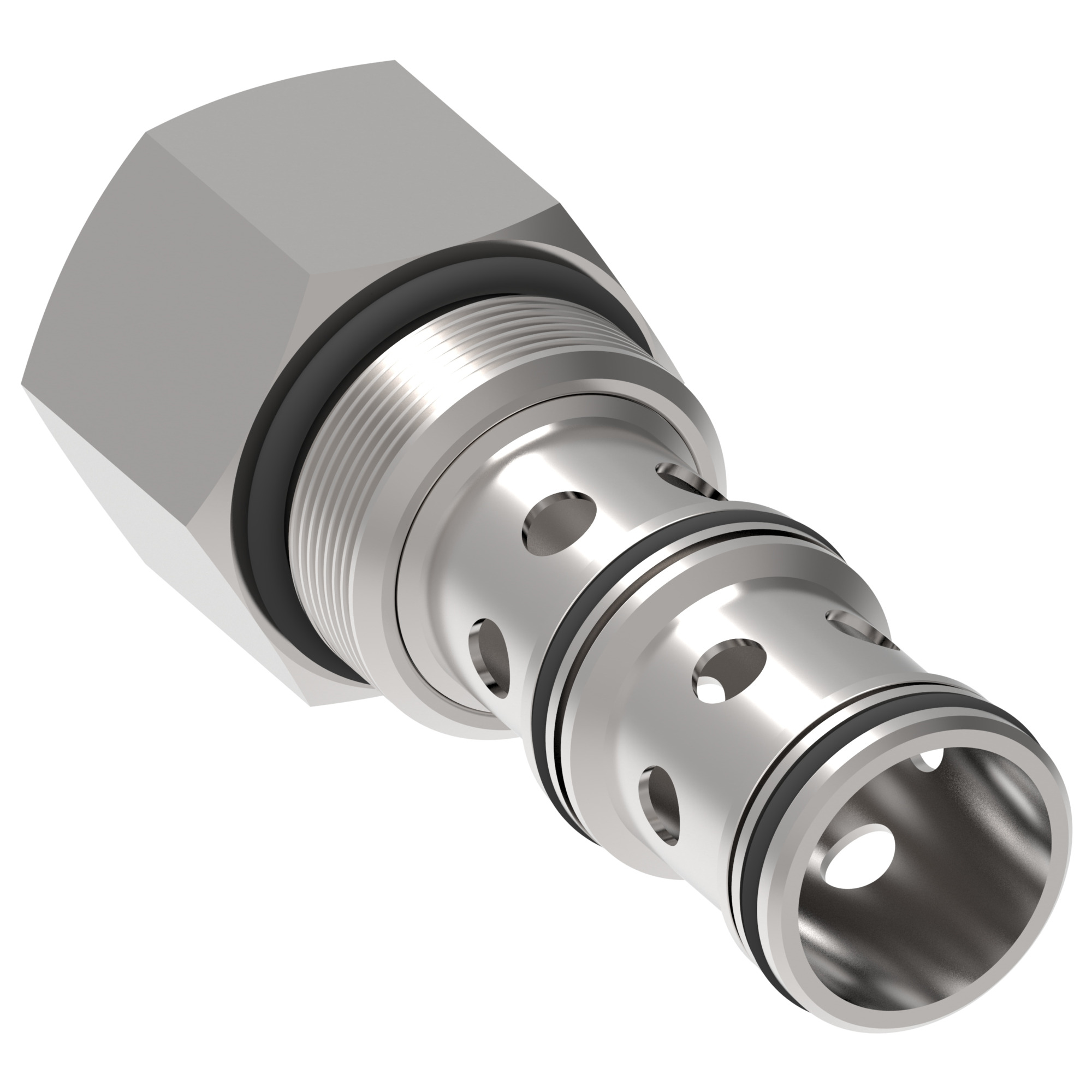

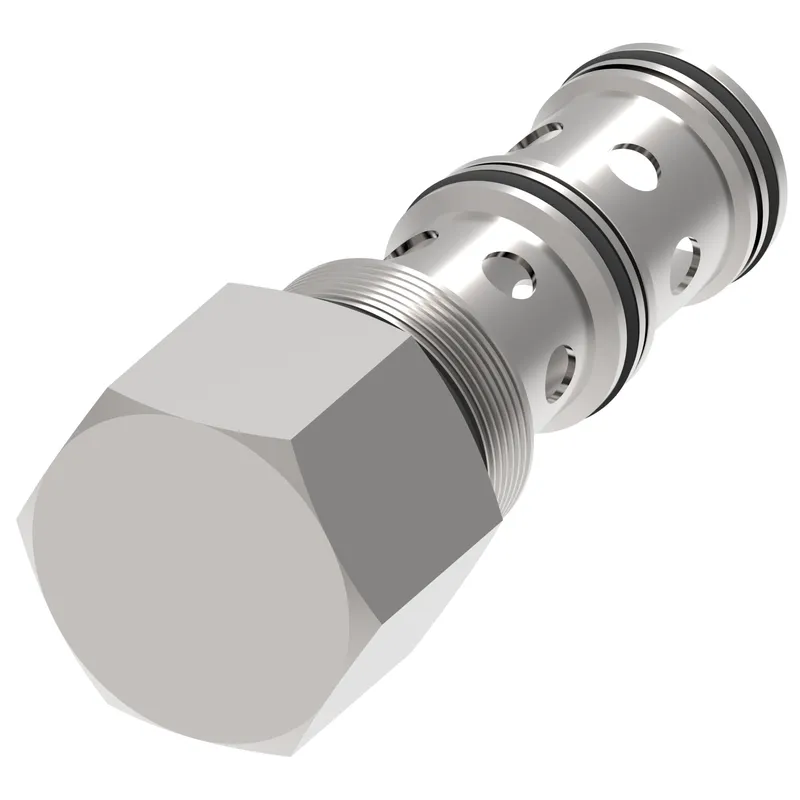

PFR1-10-F-0-/3.00, PFR1-10-F-0-3.0

MPN: 02-165716
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165716?

Danfoss PFR1-10-F-0-/3.00, PFR1-10-F-0-3.0, manufacturer part number 02-165716. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-10-3
Factory set flow rate GPM	3.000
Factory set flow rate LPM	11.00
Flow rate GPM	15.000
Flow rate LPM	57.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Priority Flow Regulator Fixed type
Housing	No
Installation type	Screw-in Cartridge
Maximum flow rate LPM	6.00
Minimum flow rate GPM	2.000
Minimum flow rate LPM	6.00
Model Code 1	PFR1-10-F-0-3.0
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.000
Product height mm	25.400
Product length in	2.560
Product length mm	65.024
Product width in	1.000
Product width mm	25.400 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm
