Danfoss 02-165615

Cartridge valve

MPN: 02-165615
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165615?

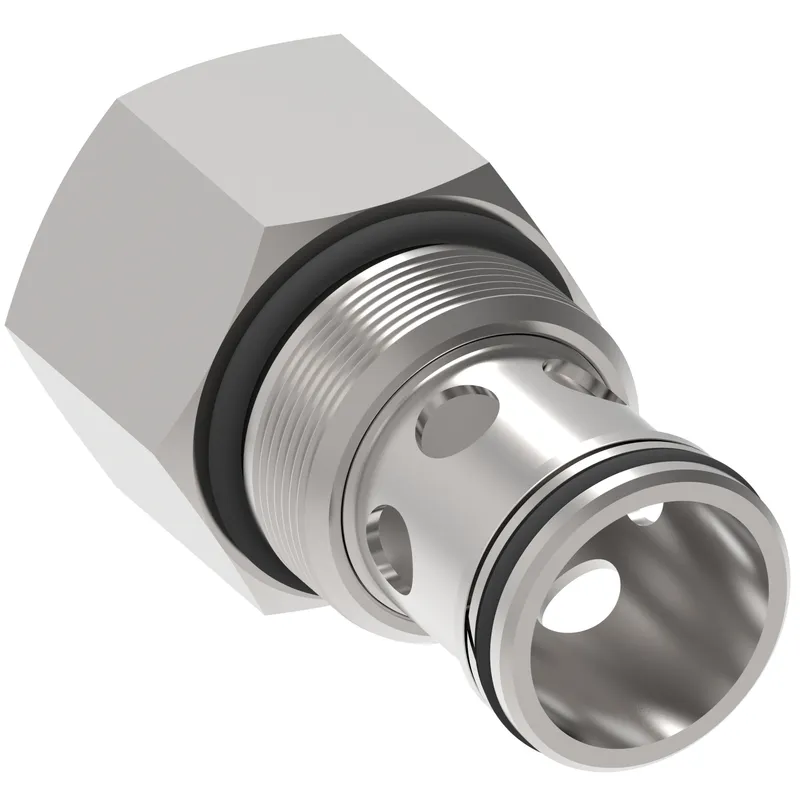

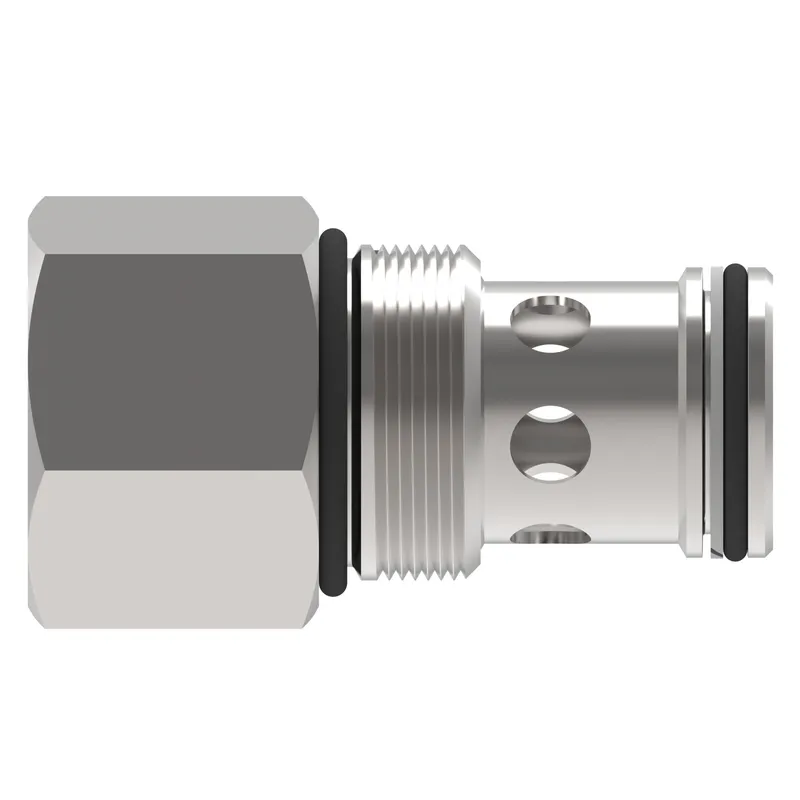

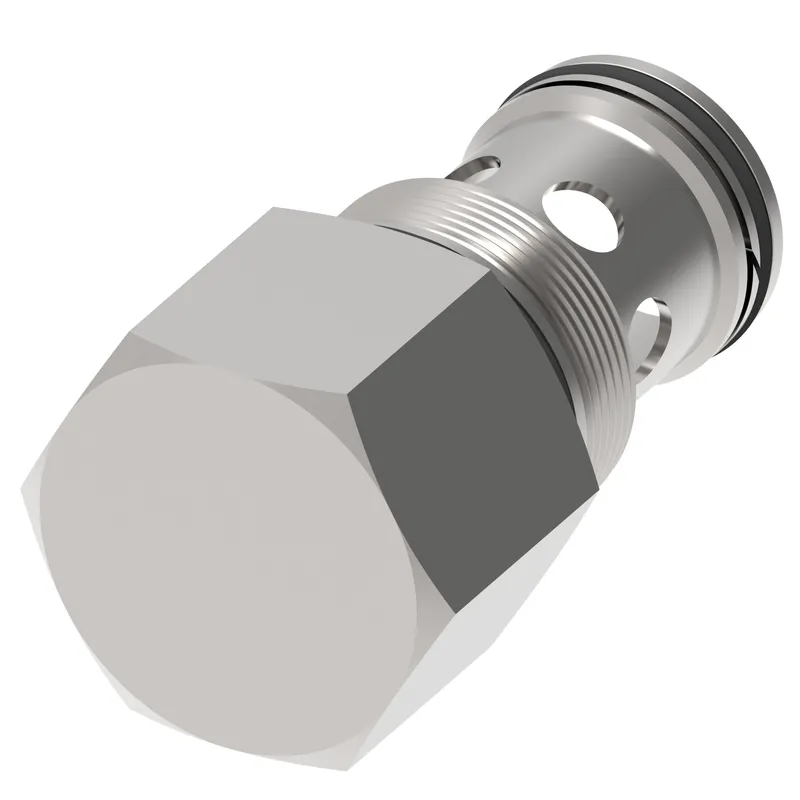

Danfoss VF11-10V-F-000-6.50-00-A, VF11-10-V-F-0-6.5, manufacturer part number 02-165615. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set flow rate GPM	6.500
Factory set flow rate LPM	25.00
Flow rate GPM	6.000
Flow rate LPM	23.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Control
Housing	No
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Maximum flow rate LPM	6.00
Minimum flow rate GPM	1.000
Minimum flow rate LPM	2.00
Model Code 1	VF11-10-V-F-0-6.5
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.000
Product height mm	25.400
Product length in	2.070
Product length mm	52.578
Product width in	1.000
Product width mm	25.400 mm
Rec filtration level	18/16/13
Seal type	Viton
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm

02-165615: frequently asked questions

When can 02-165615 be shipped?

02-165615 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-165615 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-165615 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-165615, subject to availability and destination.
