Danfoss 02-164869

Cartridge valve

MPN: 02-164869
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-164869?

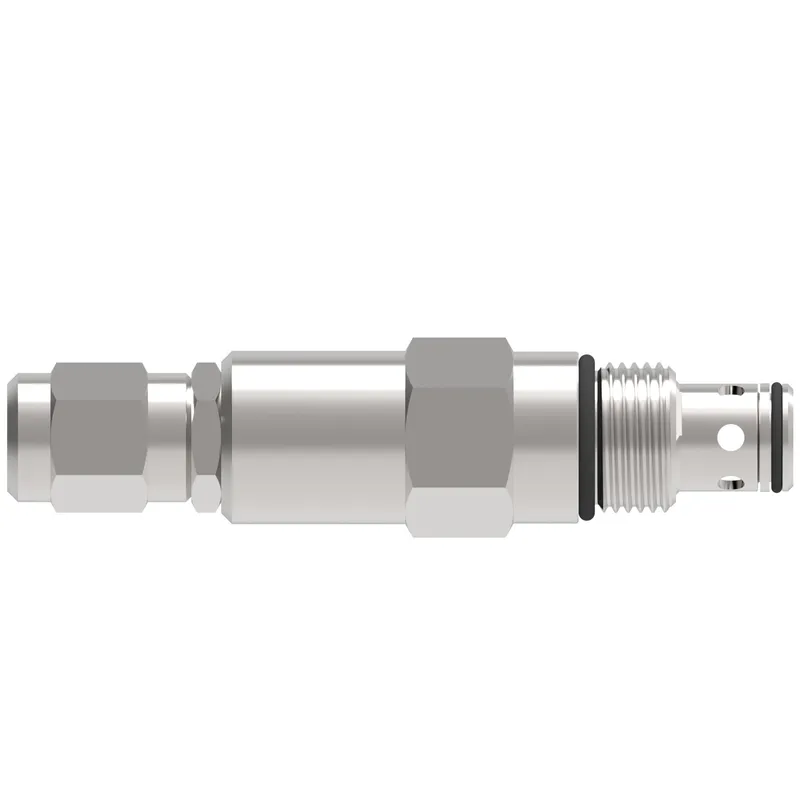

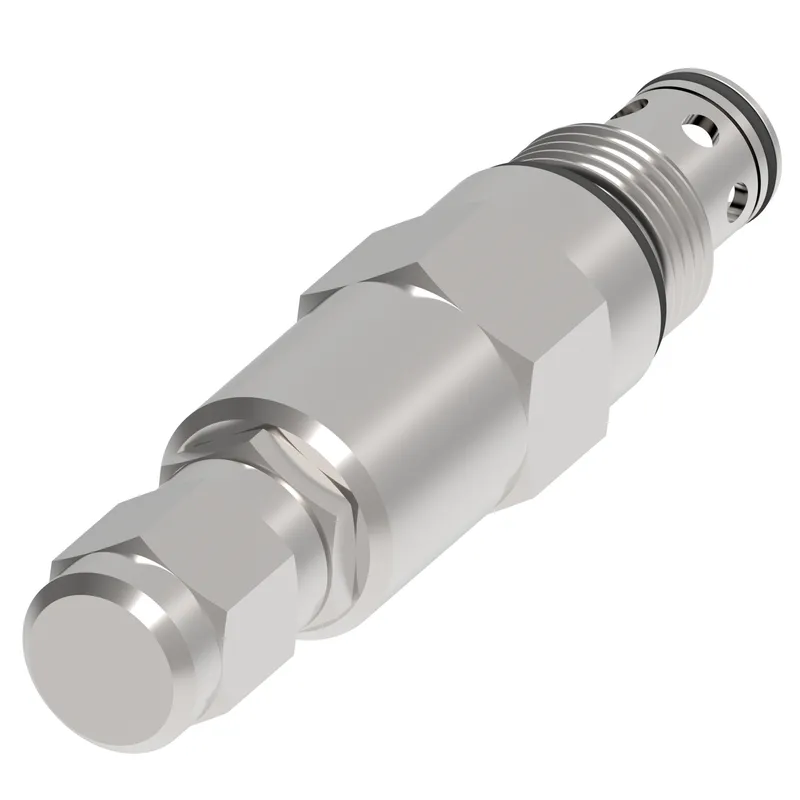

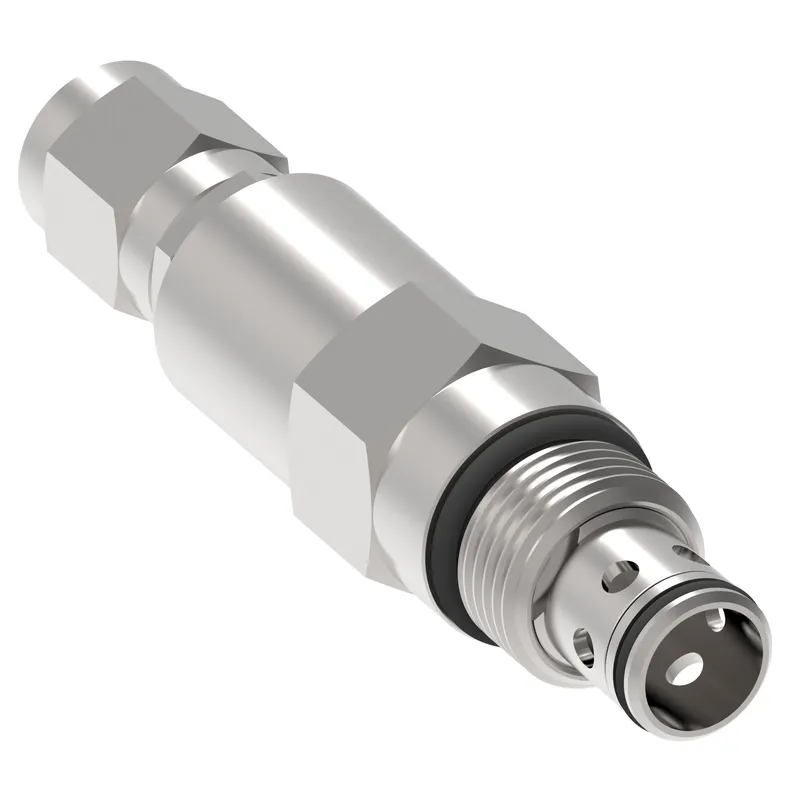

Danfoss RV11-12-C-0-15/2.5, RV11-12-C-0-15-2.5, manufacturer part number 02-164869. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Cap
Brand	Vickers by Danfoss
Cavity	C-12-2
Factory set pressrue BAR	17.000
Factory set pressrue PSI	250.000
Flow rate GPM	50.00
Flow rate LPM	190.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	100.000
Max working pressure PSI	1454.000
Min working pressure BAR	10.000
Min working pressure PSI	145.000
Model Code 1	RV11-12-C-0-15-2.5
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Product height in	1.250
Product height mm	31.750
Product length in	4.760
Product length mm	120.904
Product width in	1.250
Product width mm	31.750 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
