Danfoss 02-164817

Cartridge valve

MPN: 02-164817
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-164817?

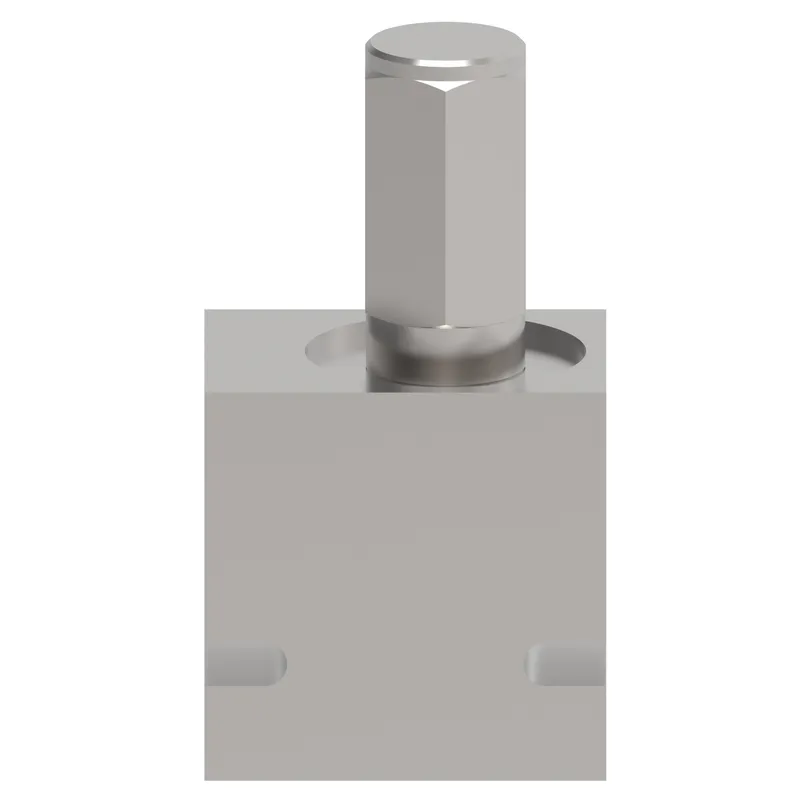

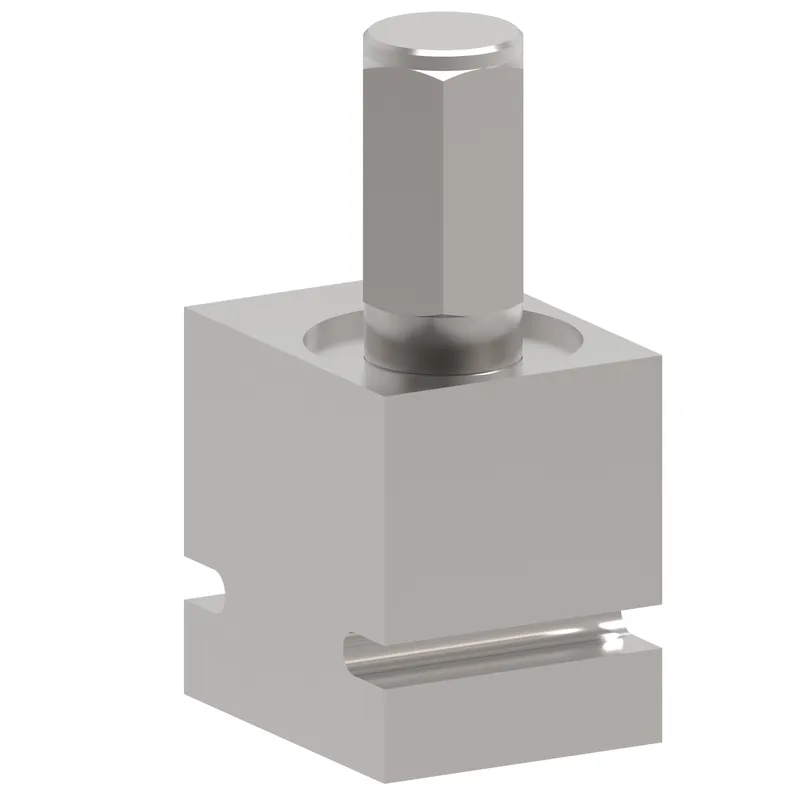

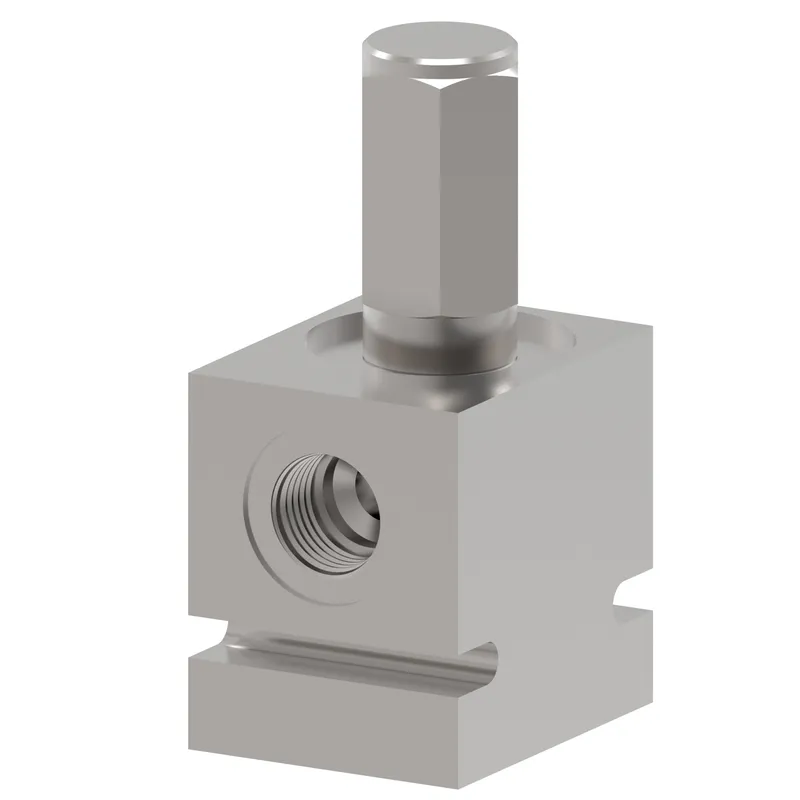

Danfoss RV3-10-F-6T-36/10, RV3-10-F-6T-36-10, manufacturer part number 02-164817. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set pressrue BAR	69.000
Factory set pressrue PSI	1002.000
Flow rate GPM	20.00
Flow rate LPM	76.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	Yes
Housing material	Steel
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	250.000
Max working pressure PSI	3635.000
Min working pressure BAR	41.000
Min working pressure PSI	596.000
Model Code 1	RV3-10-F-6T-36-10
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	3/8"
Port type	SAE
Product height in	5.800
Product height mm	147.320
Product length in	2.500
Product length mm	63.500
Product width in	1.140
Product width mm	28.956 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Poppet

02-164817: frequently asked questions

When can 02-164817 be shipped?

02-164817 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-164817 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-164817 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-164817, subject to availability and destination.
