Danfoss 02-164259

Cartridge valve

MPN: 02-164259
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-164259?

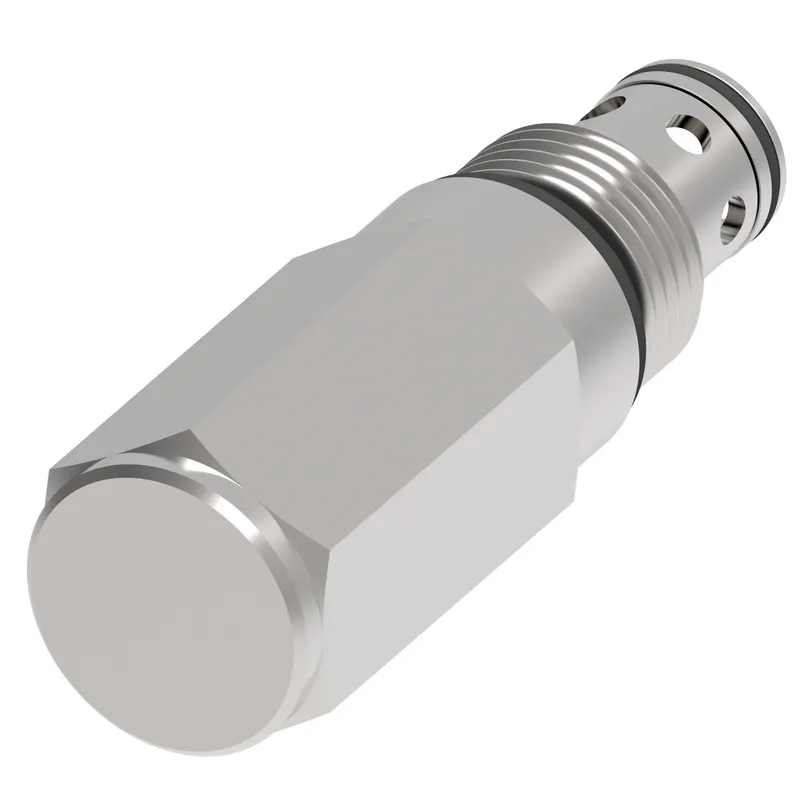

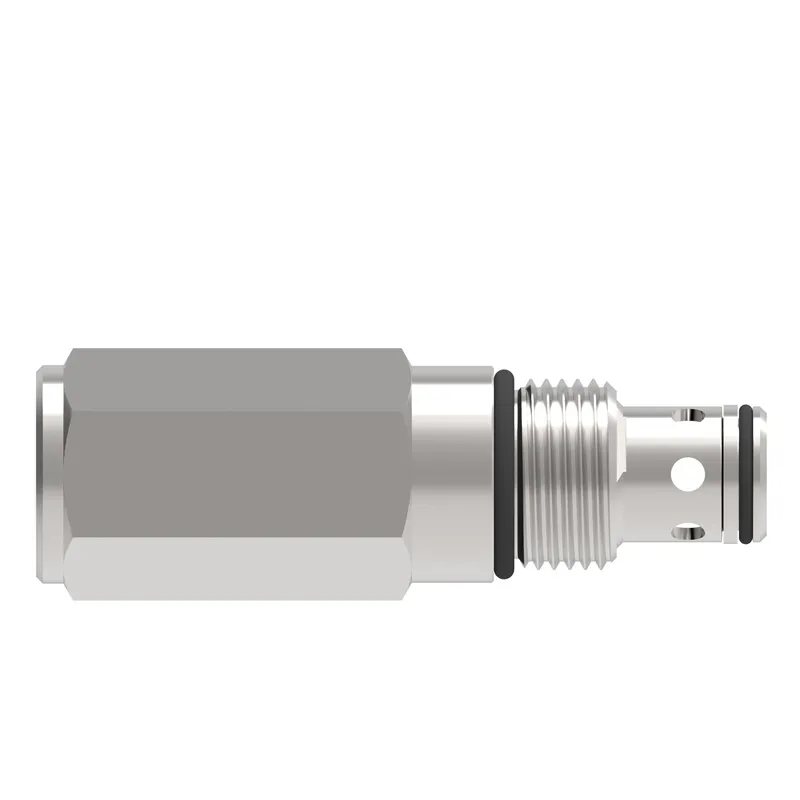

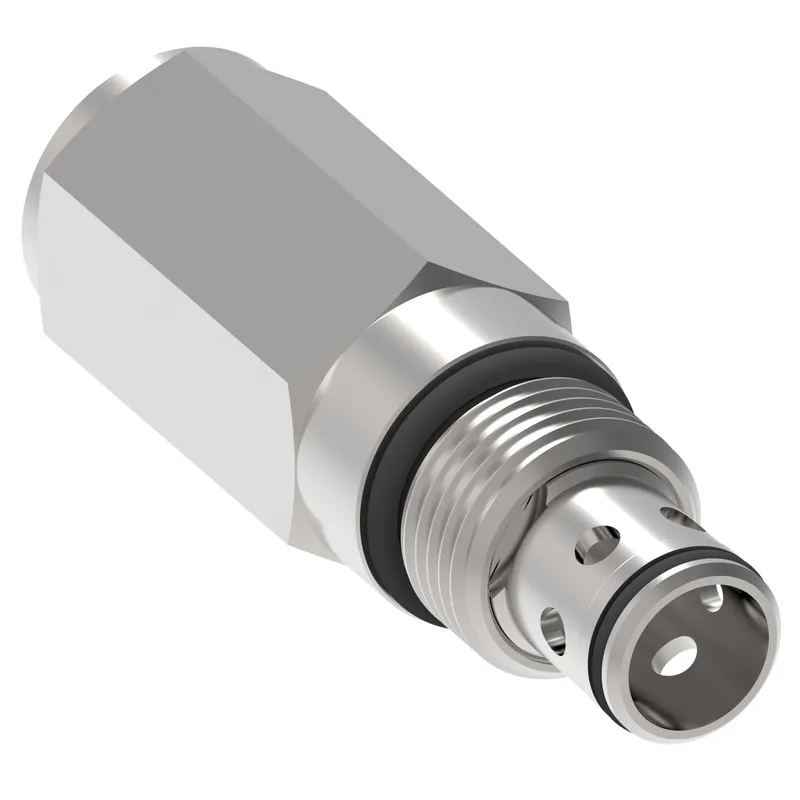

Danfoss RV4-10-F-0-50/20, RV4-10-F-0-50-20, manufacturer part number 02-164259. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set pressrue BAR	138.000
Factory set pressrue PSI	2005.000
Flow rate GPM	0.30
Flow rate LPM	1.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Max working pressure BAR	350.000
Max working pressure PSI	5000.000
Min working pressure BAR	28.000
Min working pressure PSI	407.000
Model Code 1	RV4-10-F-0-50-20
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product length in	2.000
Product length mm	50.800
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Poppet
