Danfoss 02-163974

Cartridge valve

MPN: 02-163974
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163974?

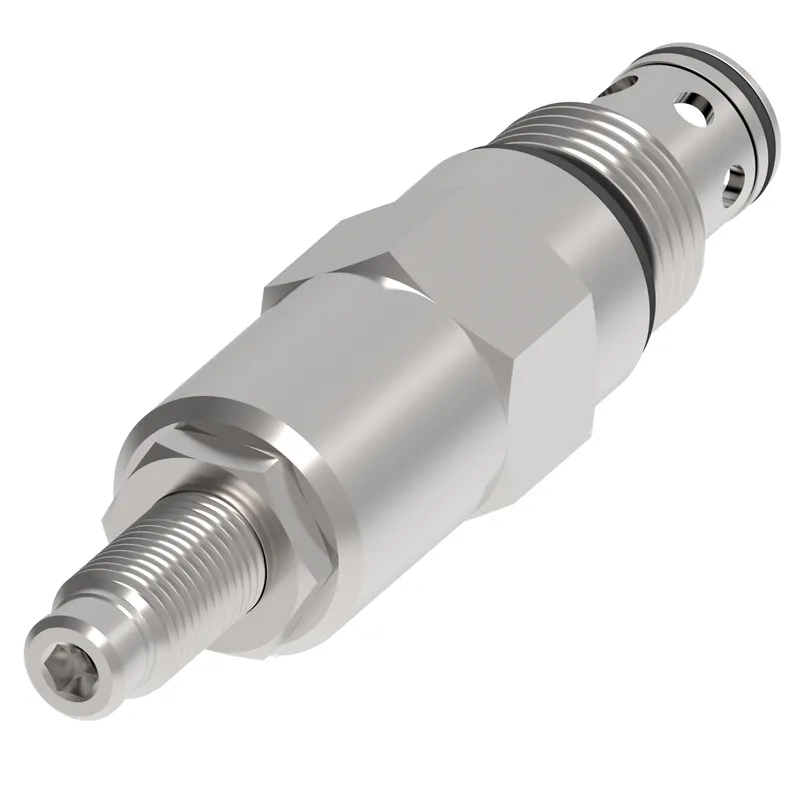

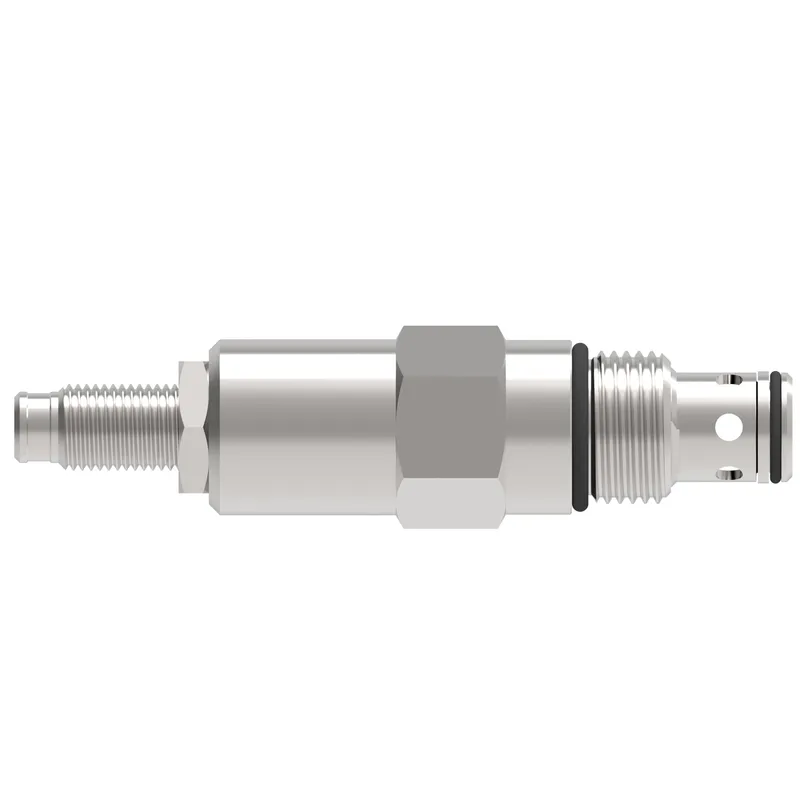

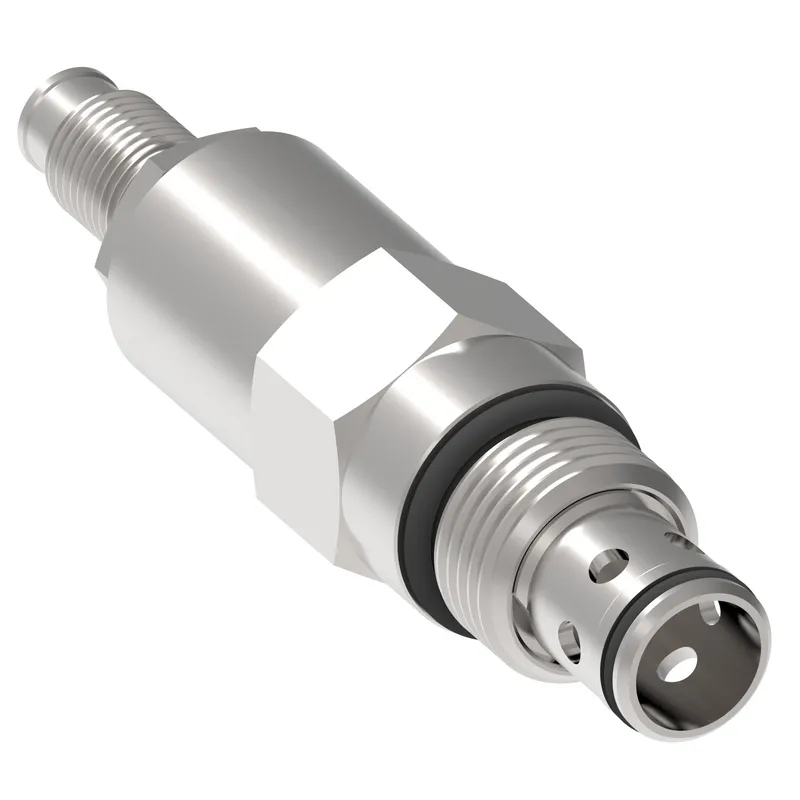

Danfoss RV11-12-S-0-50-35, RV11-12-S-0-50-35, manufacturer part number 02-163974. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-12-2
Factory set pressrue BAR	241.000
Factory set pressrue PSI	3500.000
Flow rate GPM	50.00
Flow rate LPM	190.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pilot Relief Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	131 cc/min
Max working pressure BAR	350.000
Max working pressure PSI	5000.000
Min working pressure BAR	24.000
Min working pressure PSI	350.000
Model Code 1	RV11-12-S-0-50-35
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pressure rating BAR	350.000
Product height in	1.250
Product length in	4.640
Product length mm	117.856
Product width in	1.250
Product width mm	31.750 mm
Proposition 65	Cancer and Reproductive Harm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
Valve torque into cavity	81-95 Nm
