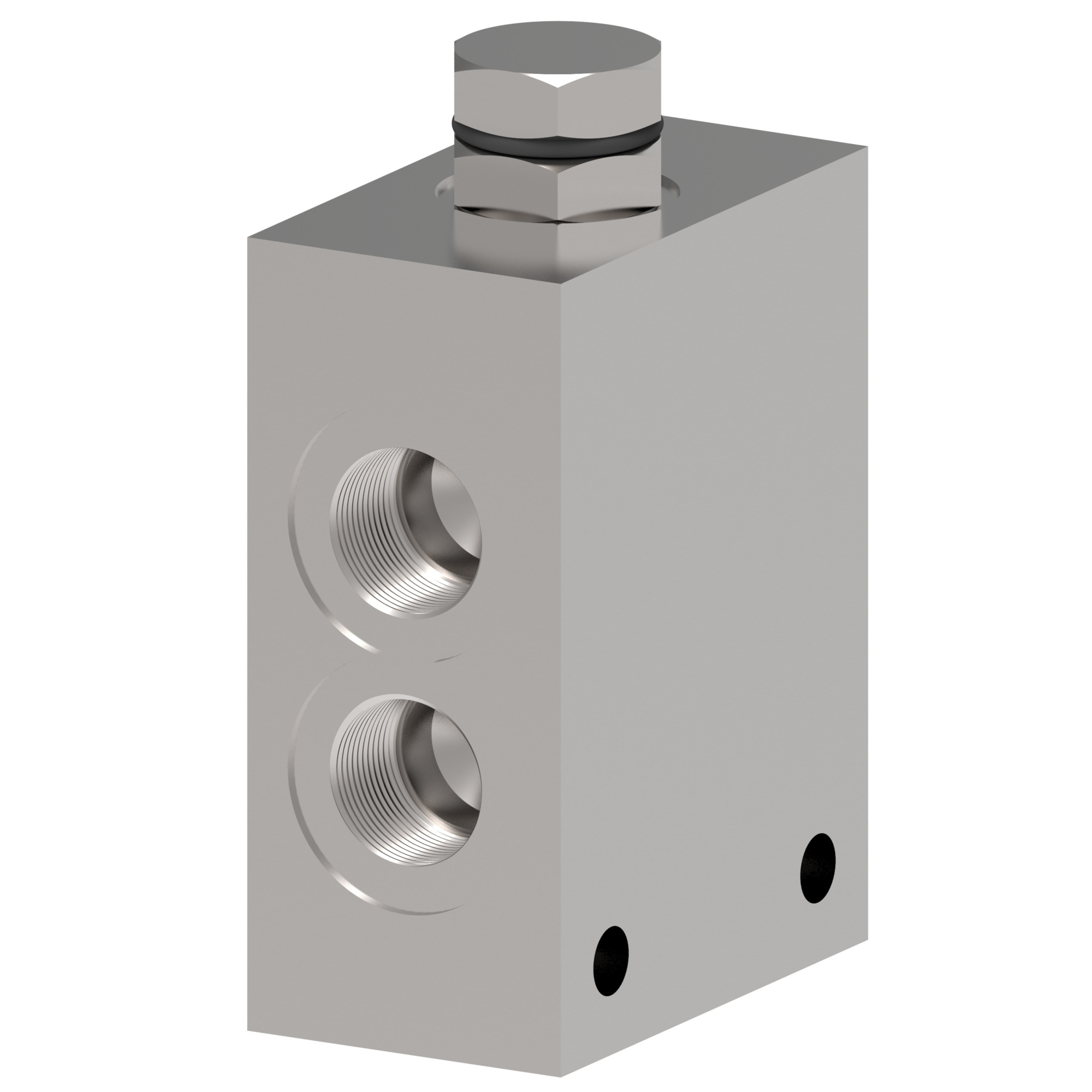

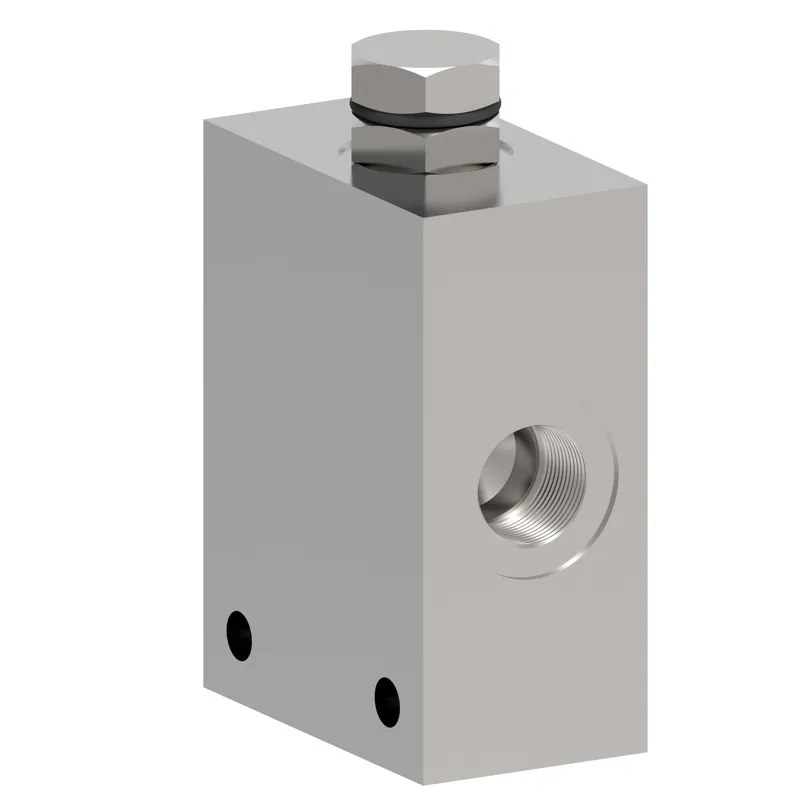

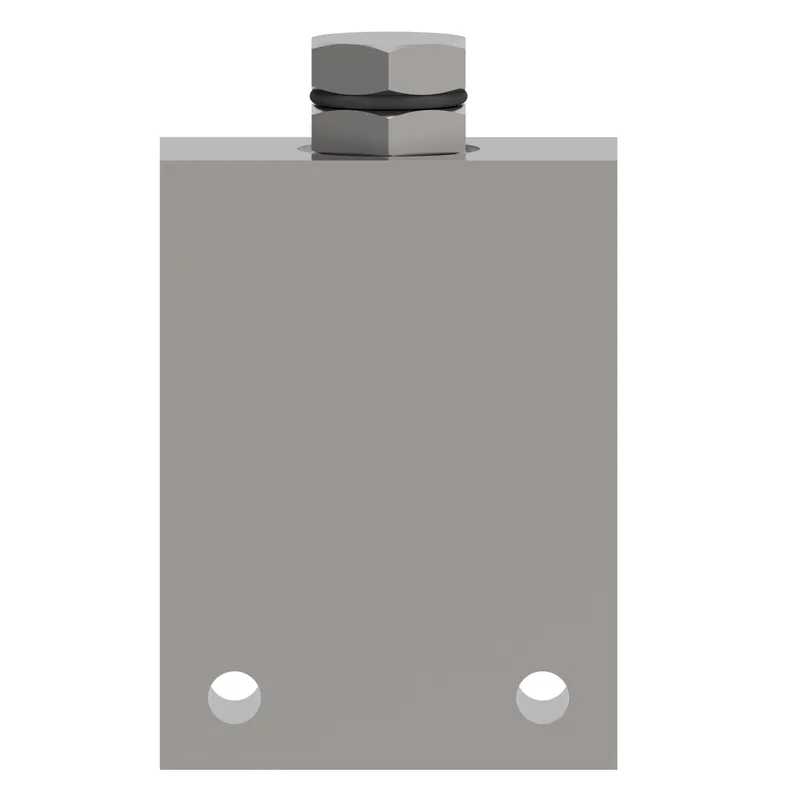

Danfoss 02-163654

PTS1-10-6T-40, PTS1-10-6T-40

MPN: 02-163654
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163654?

Danfoss PTS1-10-6T-40, PTS1-10-6T-40, manufacturer part number 02-163654. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation option	None
Adjustment type	None
Brand	Vickers by Danfoss
Cavity	C-10-4
Detent option	No
Flow rate GPM	8.00
Flow rate LPM	30.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pilot to shift valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Model Code 1	PTS1-10-6T-40
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot pressure setting BAR	3.00
Port size	3/8"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.250
Product height mm	107.950
Product length in	3.000
Product length mm	76.200
Product width in	2.000
Product width mm	50.800 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Style	4-Way 2-Position
Torque into aluminium cavity	47-54 Nm
Torque into steel cavity	68-75 Nm
