Danfoss 02-163600

Cartridge valve

MPN: 02-163600
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163600?

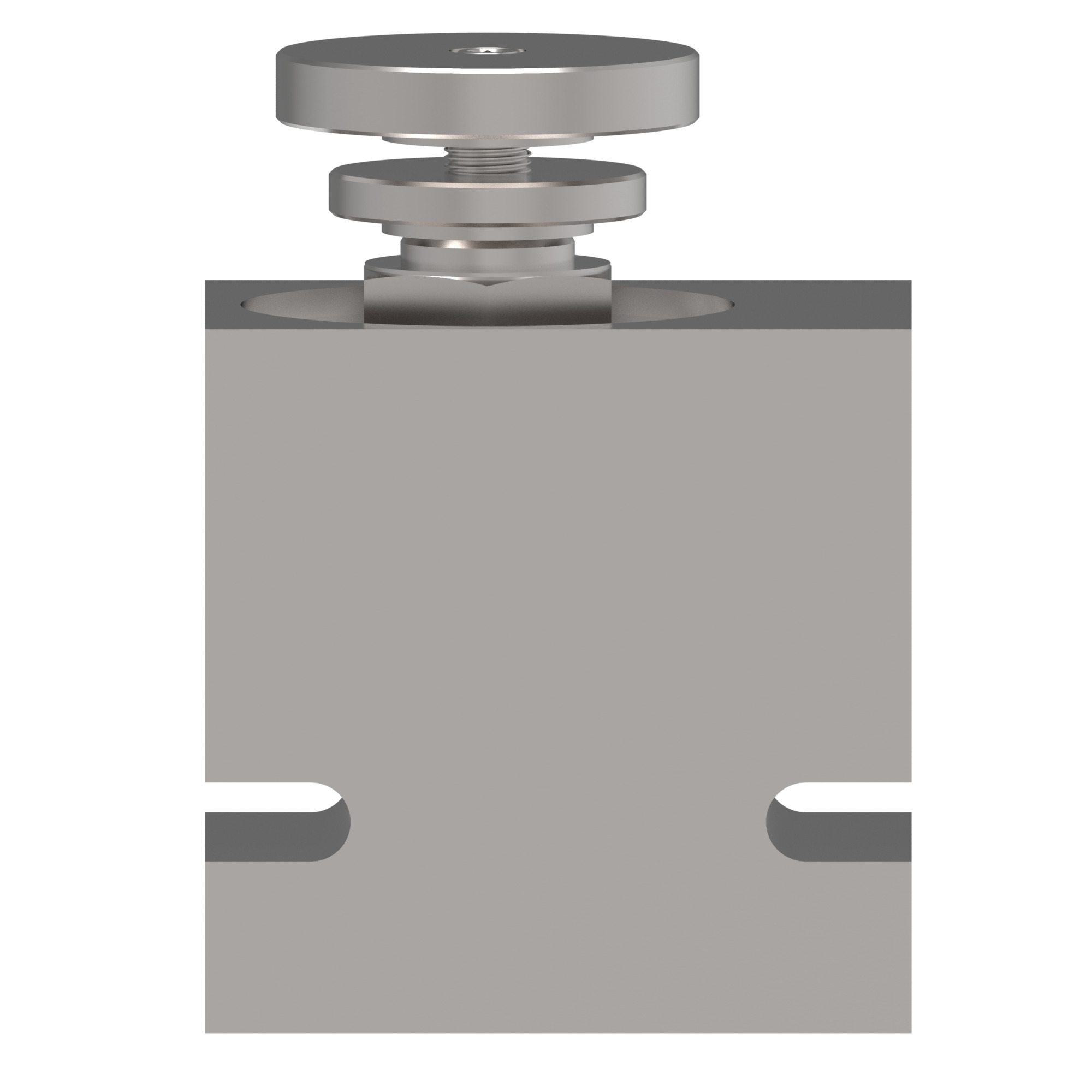

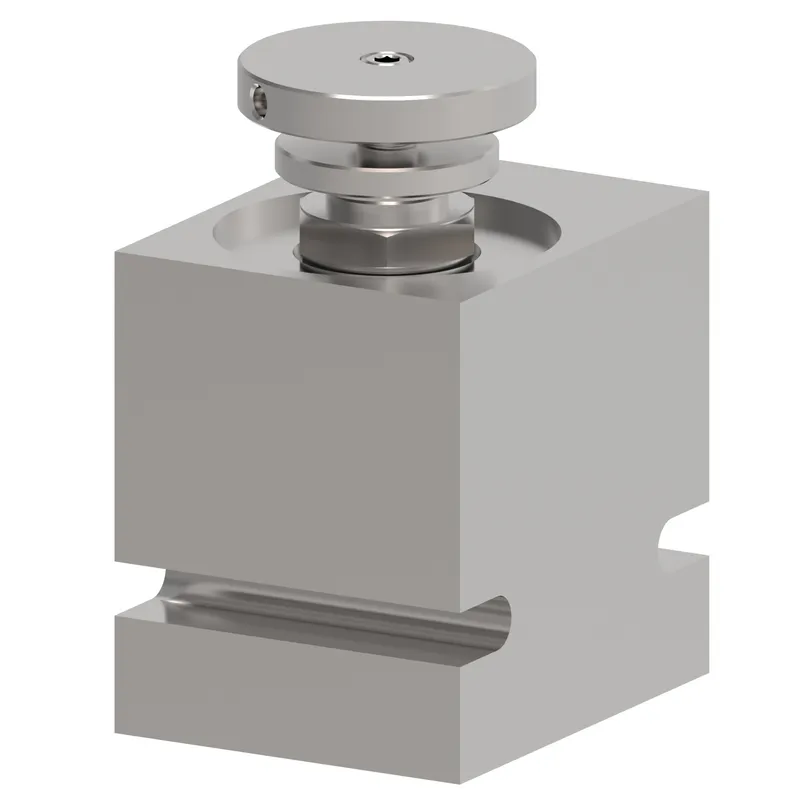

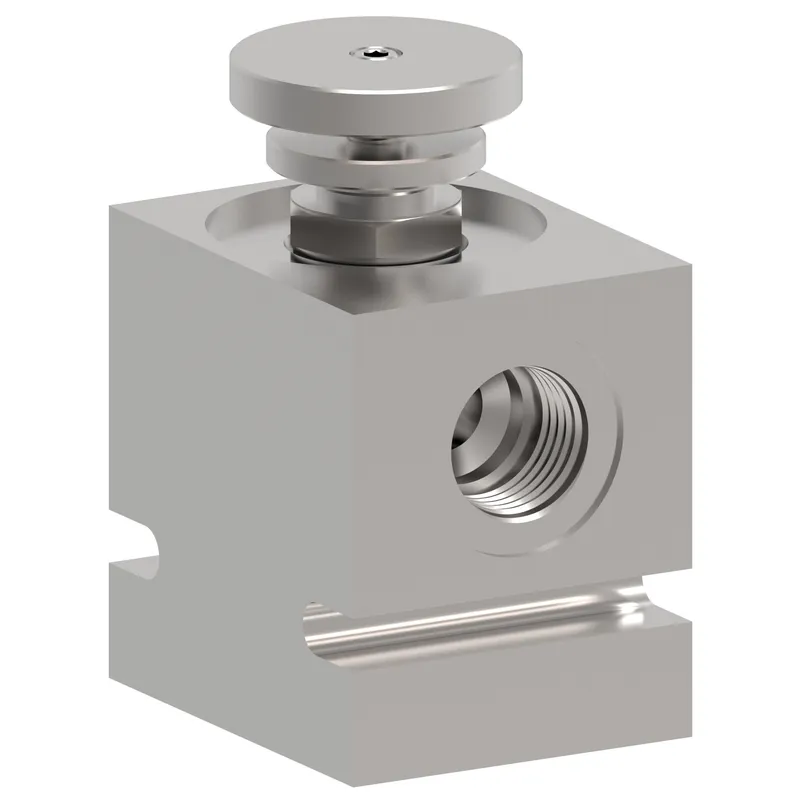

Danfoss NV1-10-K-6T, NV1-10-K-6T, manufacturer part number 02-163600. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Knob
Brand	Vickers by Danfoss
Cavity	C-10-2
Flow rate GPM	12.000
Flow rate LPM	45.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Needle Valve
Housing	Yes
Housing material	Aluminum
Installation type	Line Mounted
Leakage	0.3 cc/min
Maximum flow rate LPM	12.00
Minimum flow rate GPM	12.000
Minimum flow rate LPM	45.00
Model Code 1	NV1-10-K-6T
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port size	3/8"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.250
Product height mm	107.950
Product length in	2.500
Product length mm	63.500
Product width in	2.000
Product width mm	50.800 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm

02-163600: frequently asked questions

When can 02-163600 be shipped?

02-163600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-163600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-163600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-163600, subject to availability and destination.
