Home / Danfoss (Drives) / Cartridge valves / Danfoss 02-161796
Danfoss (Drives)

Danfoss 02-161796

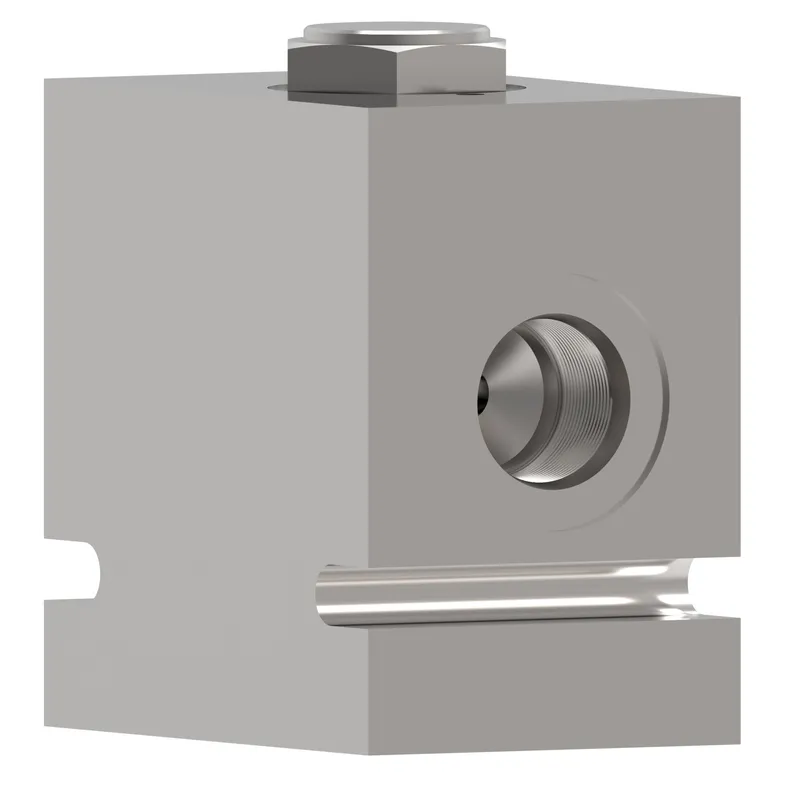

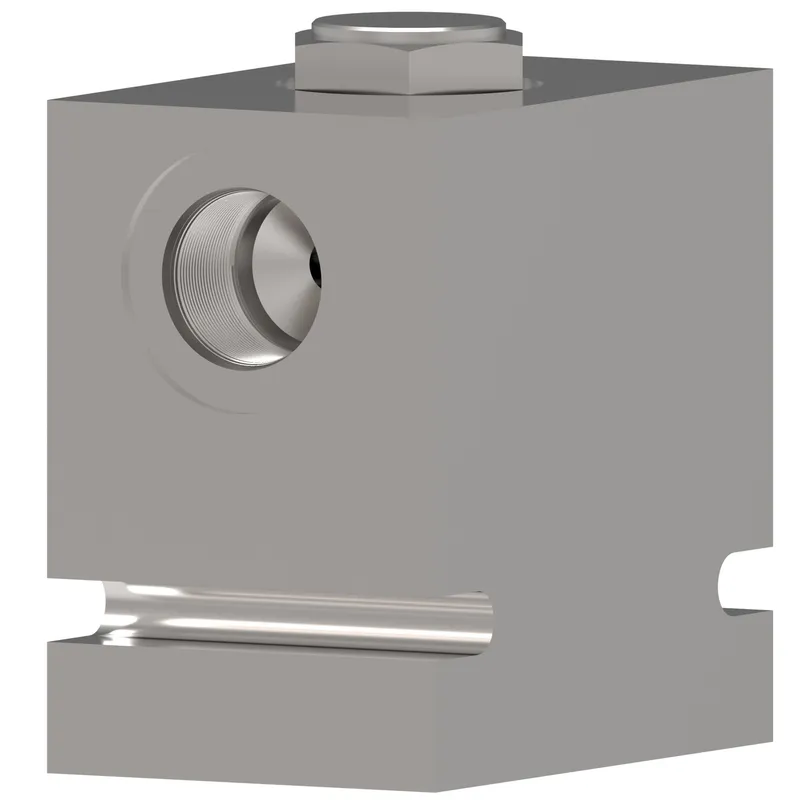

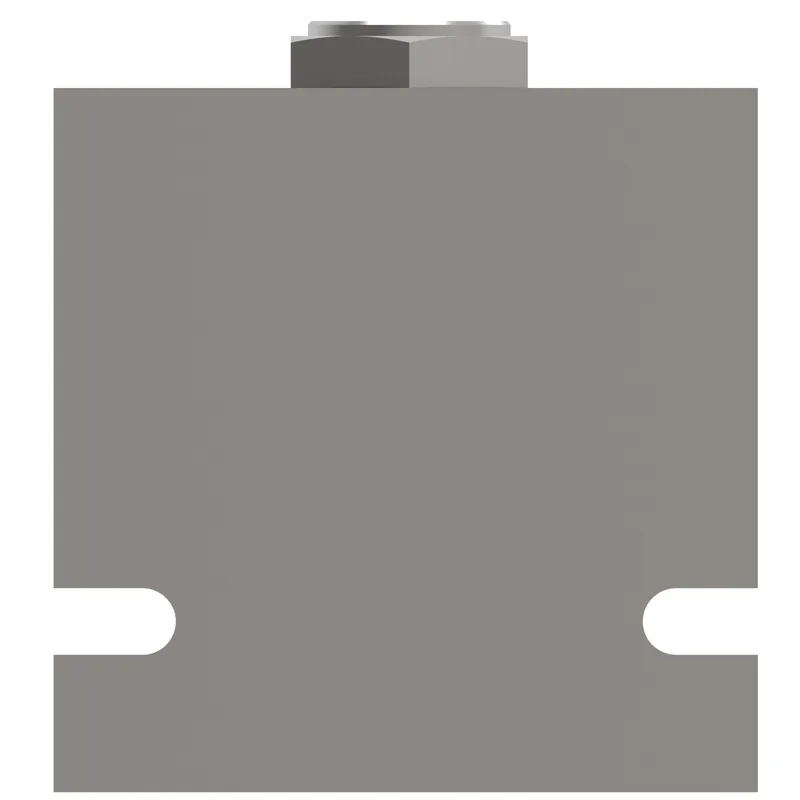

CV2-20-P-16T-100 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-100

MPN
02-161796
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-161796?

Danfoss CV2-20-P-16T-100 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-100, manufacturer part number 02-161796. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityC-20-2
Cracking pressure BAR2.10000000
Cracking pressure PSI27.00000000
Flow rate GPM59.70
Flow rate LPM227.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionCheck Valve
HousingYes
Housing materialAluminum
Installation typeScrew-in Cartridge
Leakage0.3 cc/min
Model Code 1CV2-20-P-A-16T-100
Number of housing ports2
Number of valve ports2
Operating temperature-40 C to 120 C (-40 to 248 F)
OperationDirect acting
Pilot piston sealNo
Port size3/8"
Port typeSAE
Pressure rating BAR210.00
Pressure rating PSI3000.00
Product height in4.550
Product height mm115.570
Product length in4.000
Product length mm101.600
Product width in1.870
Product width mm47.498 mm
Recommended filtration level18/13
Seal typeBuna-N
Special featuresNone
StylePoppet
