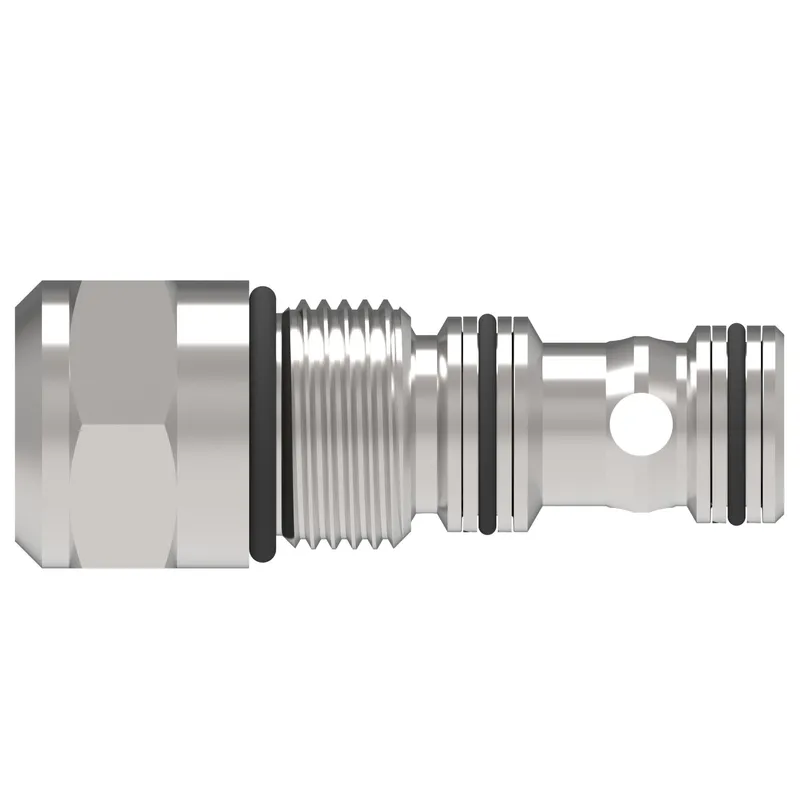

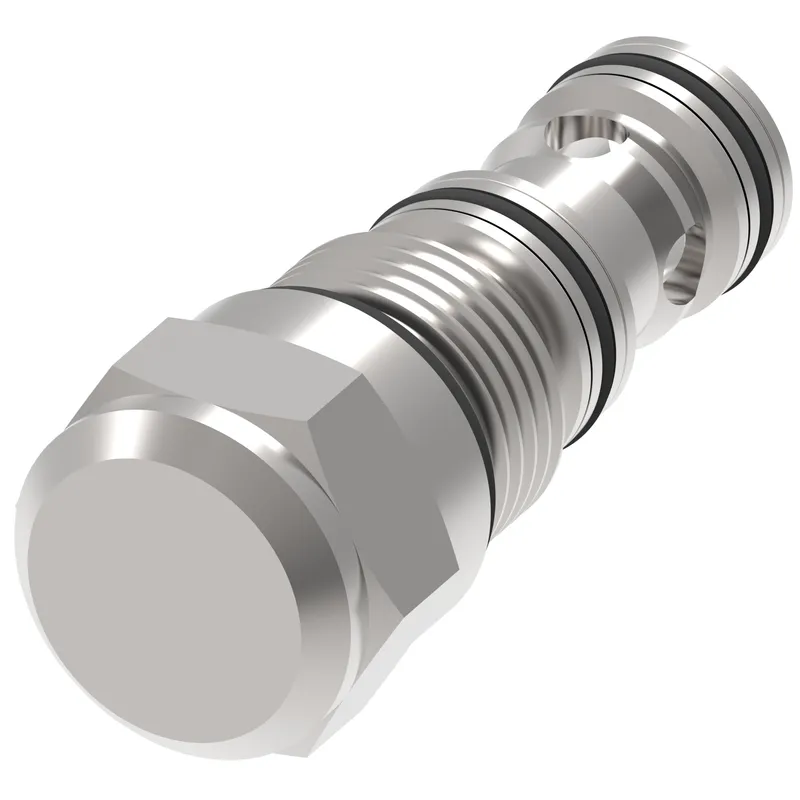

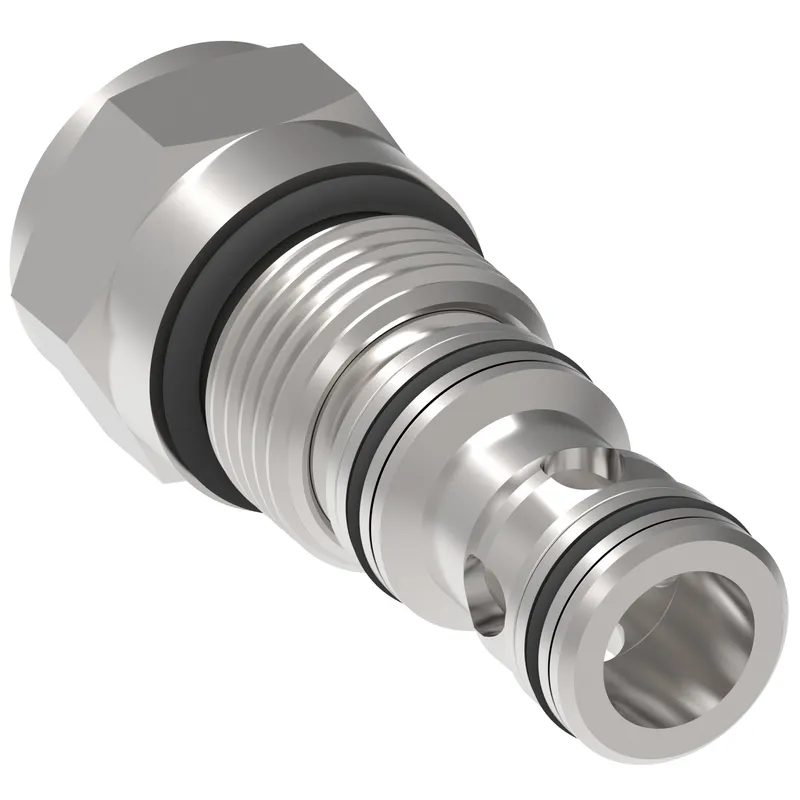

DPS2-16V-T-F-0-40 DIFF PRESS SENSINGCART, DPS2-16-V-T-F-0-040
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-161597 be shipped?
02-161597 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-161597 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-161597 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161597, subject to availability and destination.
Danfoss DPS2-16V-T-F-0-40 DIFF PRESS SENSINGCART, DPS2-16-V-T-F-0-040, manufacturer part number 02-161597. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-16-3S |
| Flow rate GPM | 50.000 |
| Flow rate LPM | 189.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Differential Pressure Sensing |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 0.6 cc/min |
| Model Code 1 | DPS2-16-V-T-F-0-040 |
| Normal function | Popp Bi-d Pilot to clos 2:1 NC |
| Number housing ports | 3 |
| Number of valve port | 3 |
| Operating temp | -40 C to 120 C (-40 to 248 F) |
| Pilot ratio | 2:1 |
| Port type | Cartridge Only |
| Pressure differential BAR | 2.75 |
| Pressure differential PSI | 40.00 |
| Pressure rating BAR | 350.00 |
| Pressure rating PSI | 5000.00 |
| Product height in | 1.500 |
| Product height mm | 38.100 |
| Product length in | 3.450 |
| Product length mm | 87.630 |
| Product width in | 1.500 |
| Product width mm | 38.100 mm |
| Rec filtration level | 18/16/13 |
| Seal type | Viton |
| Special features | None |
| Spring | 40 psi |
| Stroke adjustment | Fixed stroke |
| Style | Poppet |
