Danfoss 02-161421

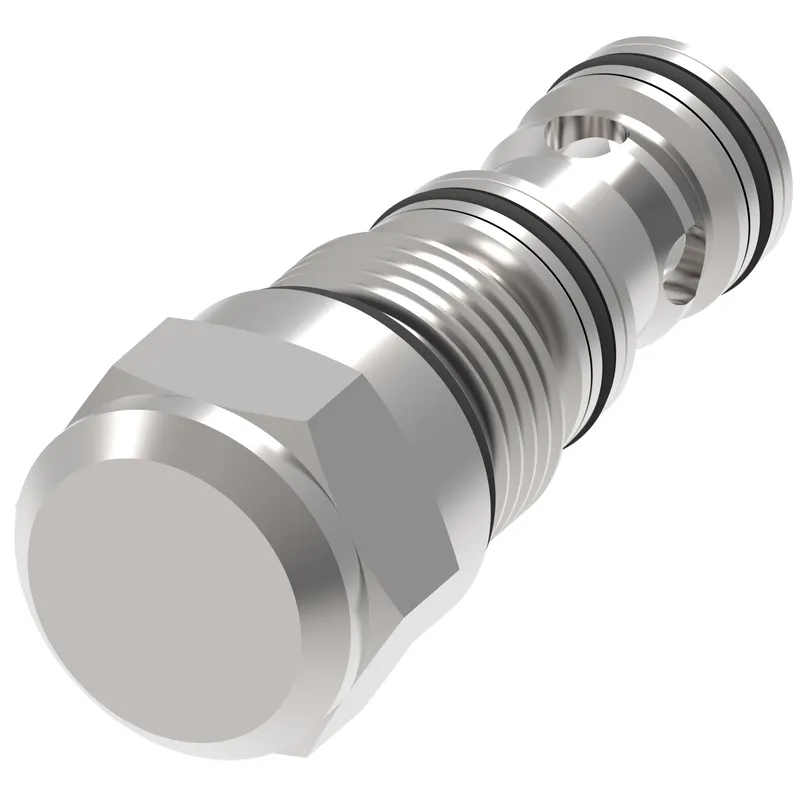

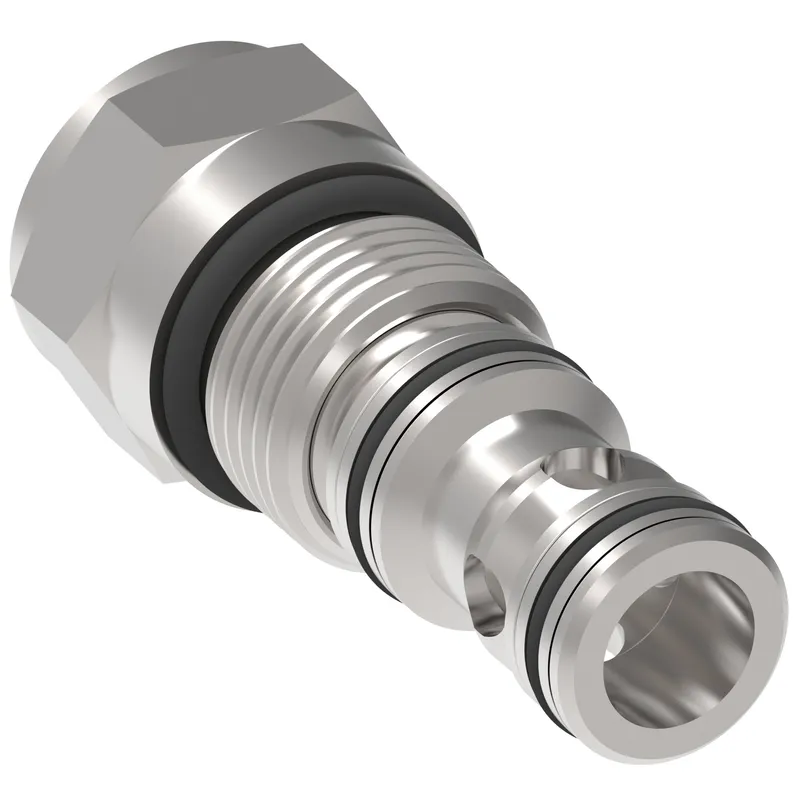

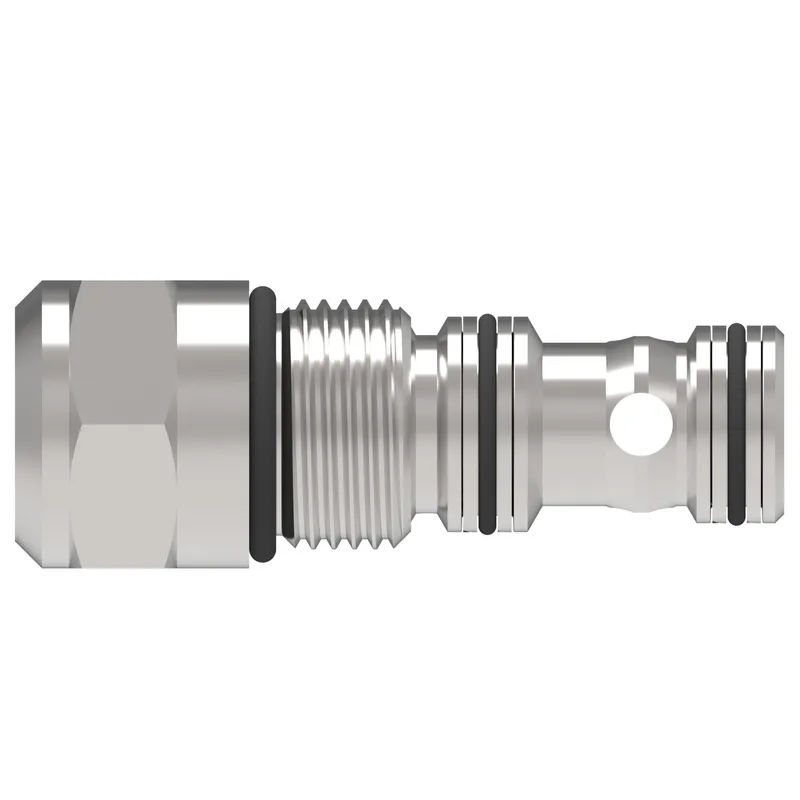

DPS2-20V-T-F-0-40 DIFF PRESS SENSINGCART, DPS2-20-V-T-F-0-040

MPN: 02-161421
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-161421?

Danfoss DPS2-20V-T-F-0-40 DIFF PRESS SENSINGCART, DPS2-20-V-T-F-0-040, manufacturer part number 02-161421. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-3S
Flow rate GPM	80.000
Flow rate LPM	303.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Differential Pressure Sensing
Housing	No
Installation type	Screw-in Cartridge
Leakage	0.6 cc/min
Model Code 1	DPS2-20-V-T-F-0-040
Normal function	Popp Bi-d Pilot to clos 2:1 NC
Number housing ports	3
Number of valve port	3
Operating temp	-40 C to 120 C (-40 to 248 F)
Pilot ratio	2:1
Port type	Cartridge Only
Pressure differential BAR	2.75
Pressure differential PSI	40.00
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	1.870
Product height mm	47.498
Product length in	4.340
Product length mm	110.236
Product width in	1.870
Product width mm	47.498 mm
Rec filtration level	18/16/13
Seal type	Viton
Special features	None
Spring	40 psi
Stroke adjustment	Fixed stroke
Style	Poppet
