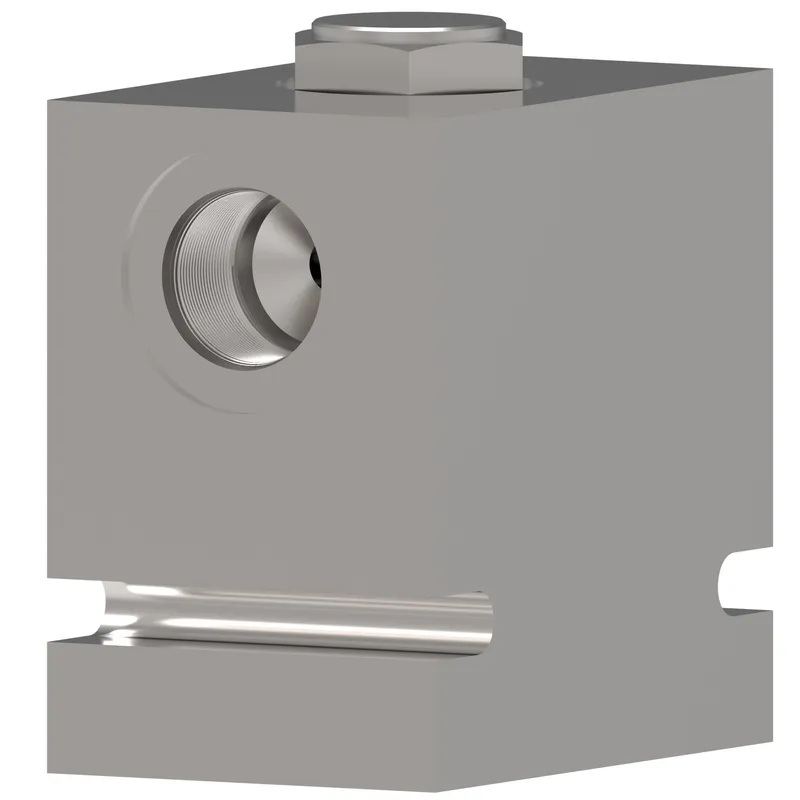

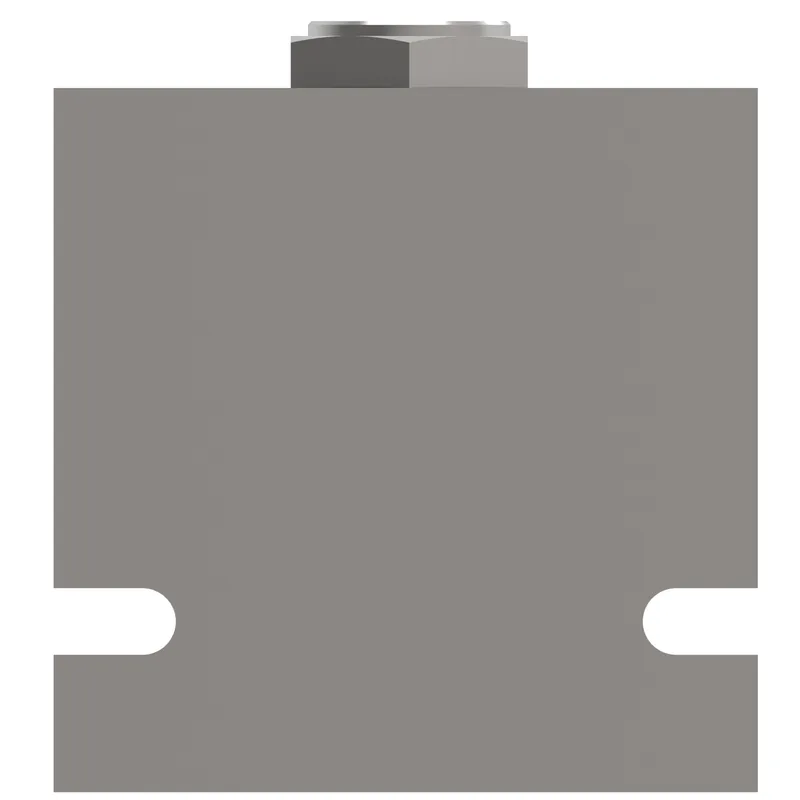

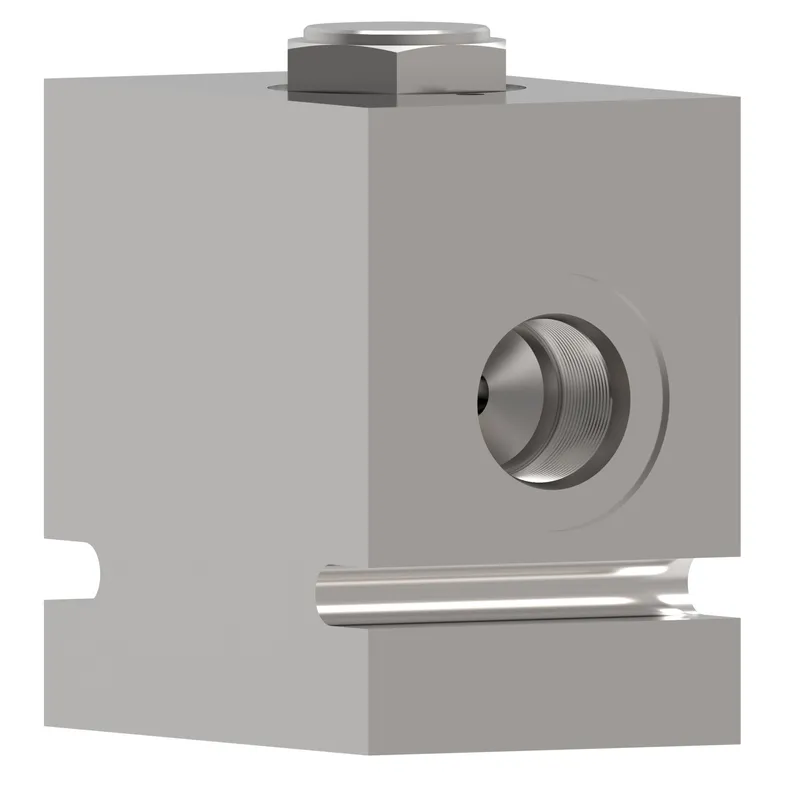

Danfoss 02-161296

CV2-20-P-16H-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16H-5

MPN: 02-161296
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-161296?

Danfoss CV2-20-P-16H-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16H-5, manufacturer part number 02-161296. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-2
Cracking pressure BAR	1.40000000
Cracking pressure PSI	18.00000000
Flow rate GPM	20.00
Flow rate LPM	76.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Check Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Model Code 1	CV2-20-P-A-16H-5
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Pilot piston seal	No
Port size	1"
Port type	SAE
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	4.550
Product height mm	115.570
Product length in	4.000
Product length mm	101.600
Product width in	1.870
Product width mm	47.498 mm
Recommended filtration level	18/13
Seal type	Buna-N
Special features	None
Style	Poppet
