Danfoss
02-161219
Danfoss 02-161254

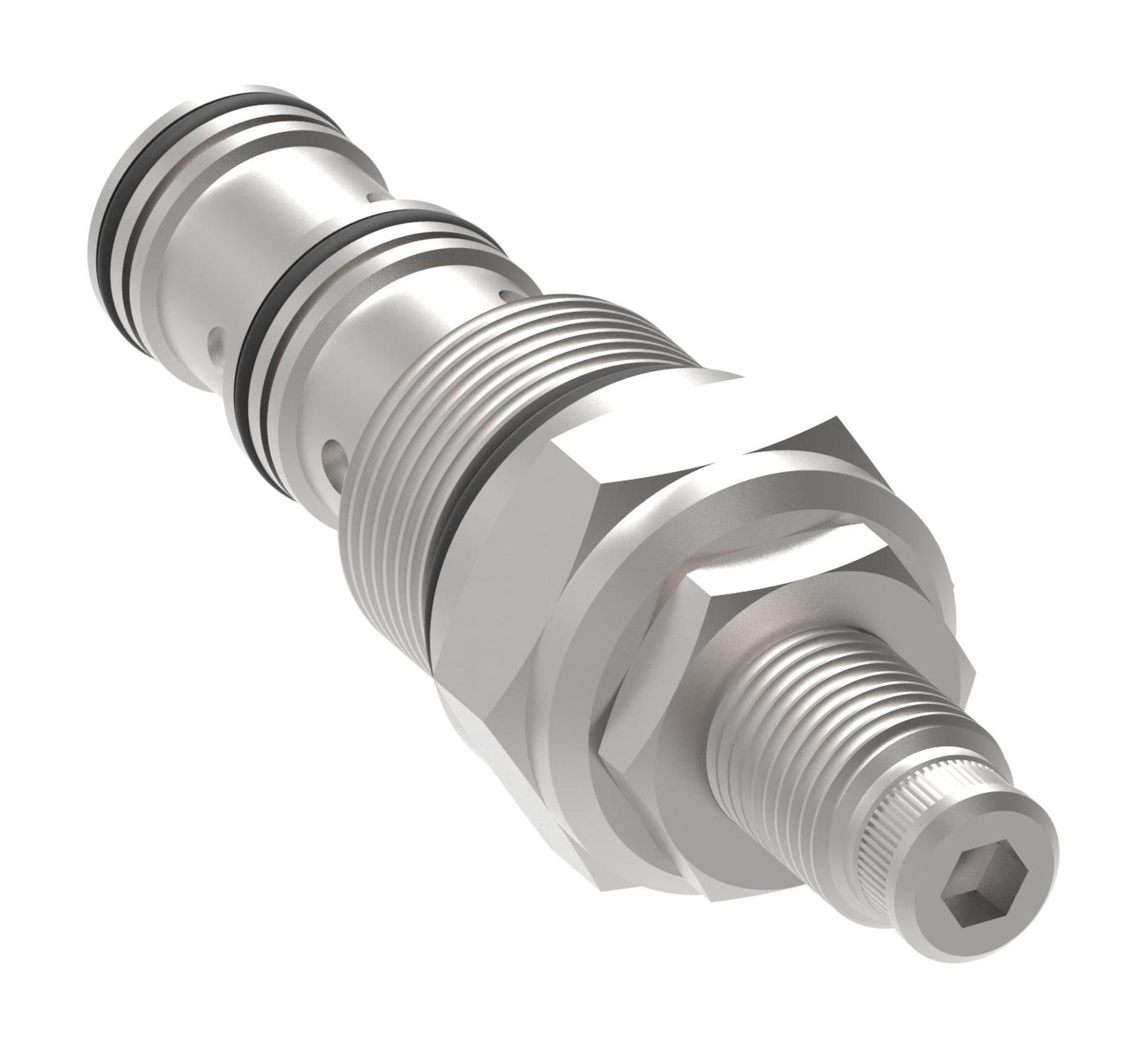

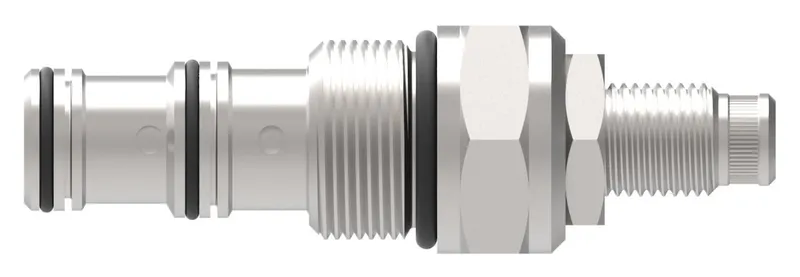

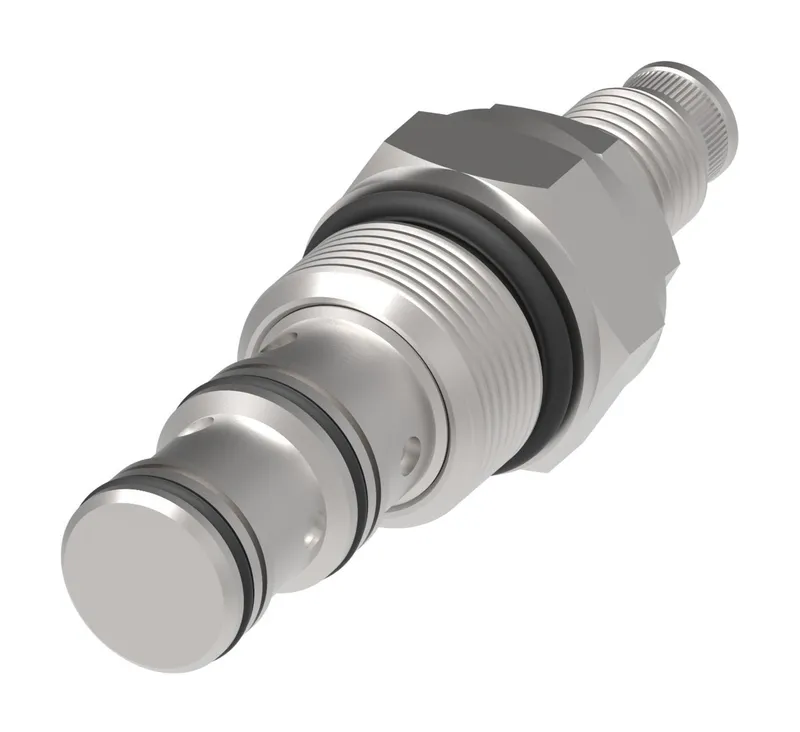

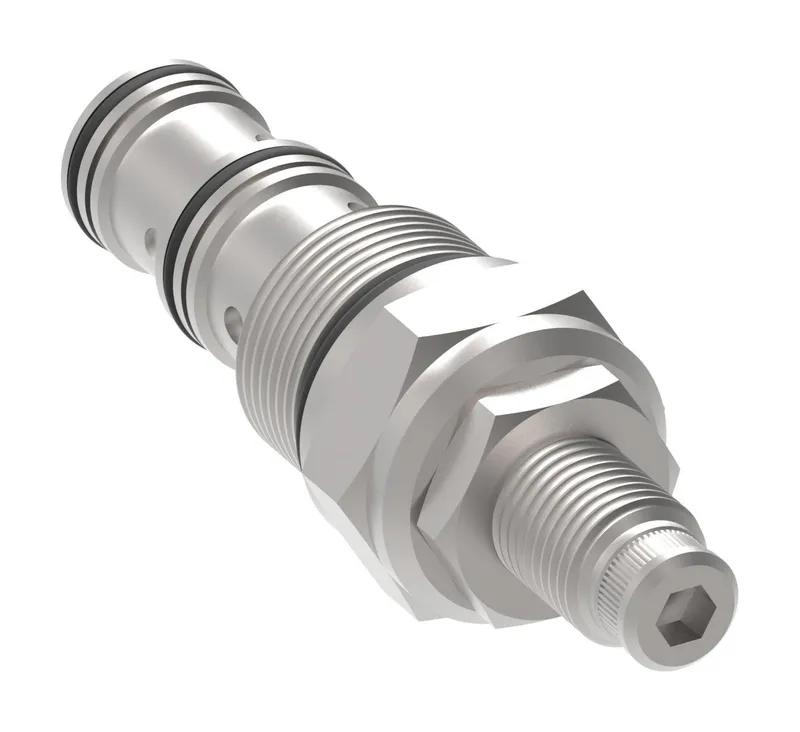

PUV3-10-S-6T-85-30/, PUV3-10-S-6T-85-30-XXX
- MPN
- 02-161254
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-161254?
Danfoss PUV3-10-S-6T-85-30/, PUV3-10-S-6T-85-30-XXX, manufacturer part number 02-161254. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory set pressrue BAR | 103.000 |
| Factory set pressrue PSI | 1504.000 |
| Flow rate GPM | 1.10 |
| Flow rate LPM | 4.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Unloading Valve |
| Housing | Yes |
| Housing material | Steel |
| Installation type | Screw-in Cartridge |
| Leakage | 82 cc/min |
| Max working pressure BAR | 210.000 |
| Max working pressure PSI | 3053.000 |
| Min working pressure BAR | 103.000 |
| Min working pressure PSI | 1498.000 |
| Model Code 1 | PUV3-10-S-6T-85-30-XXX |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port size | 3/8" |
| Port type | SAE |
| Product height in | 4.500 |
| Product height mm | 114.300 |
| Product length in | 2.970 |
| Product length mm | 75.438 |
| Product width in | 1.970 |
| Product width mm | 50.038 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Poppet |
02-161254: frequently asked questions
When can 02-161254 be shipped?
02-161254 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-161254 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-161254 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161254, subject to availability and destination.
