SV2-8-4-0-00 4/2 SOL/OP CART, SV2-8-4-0-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-160779 be shipped?
02-160779 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-160779 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-160779 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-160779, subject to availability and destination.

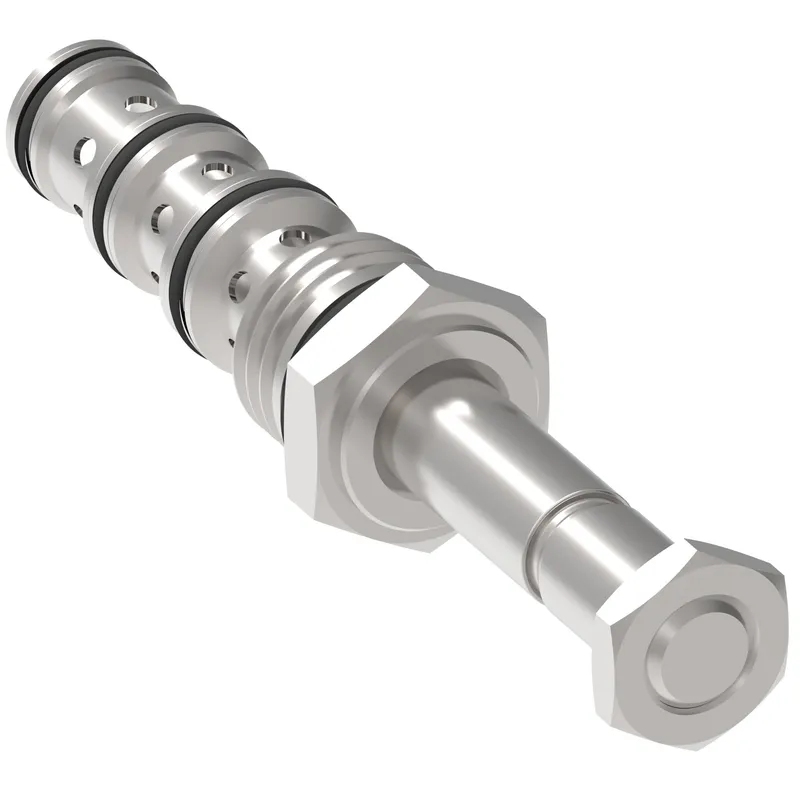

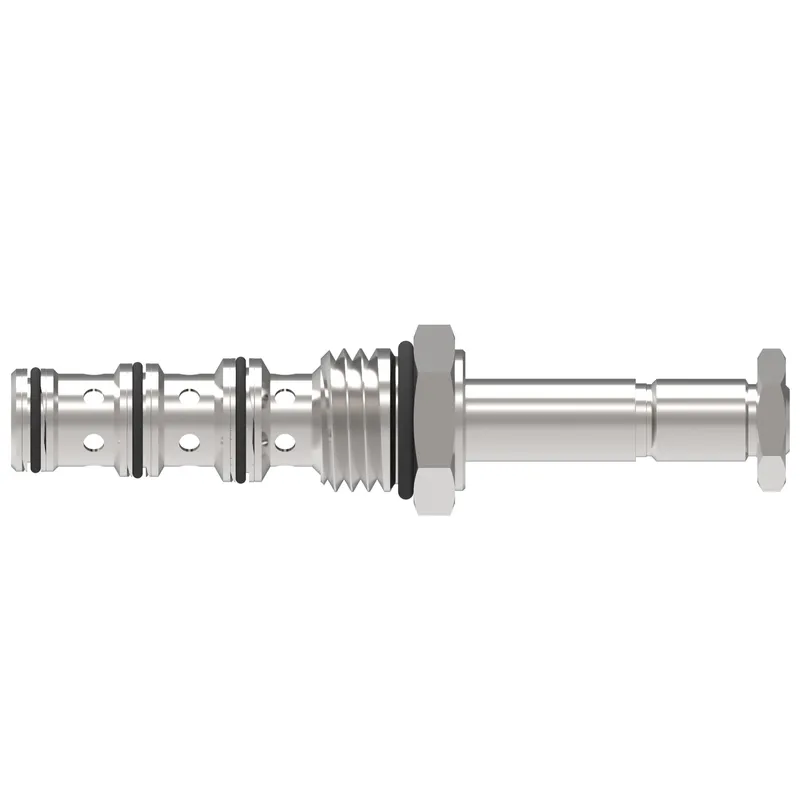

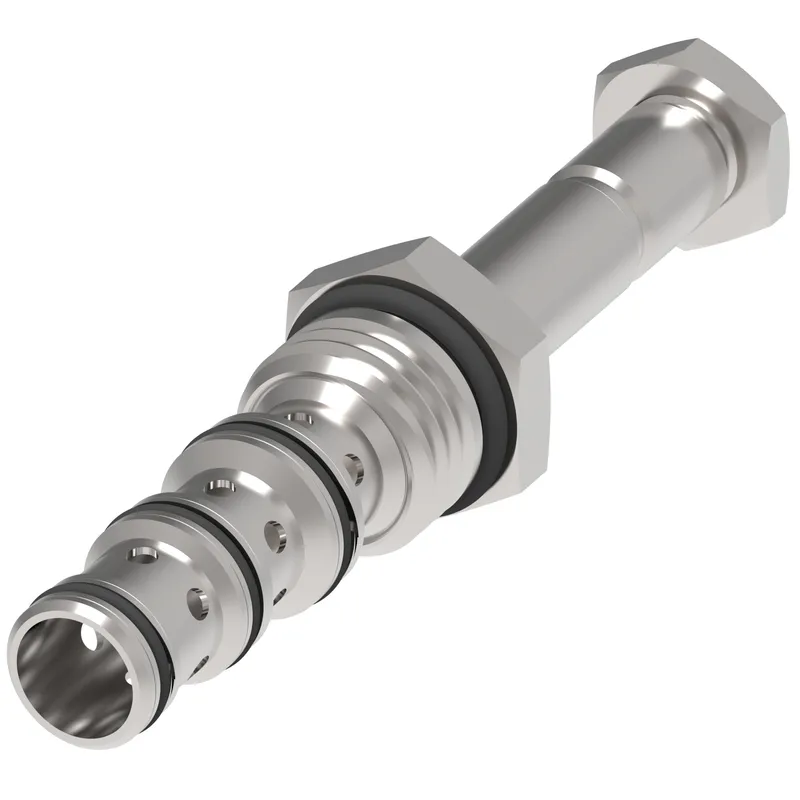

Danfoss SV2-8-4-0-00 4/2 SOL/OP CART, SV2-8-4-0-00, manufacturer part number 02-160779. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-8-4 |
| Flow rate GPM | 3.00 |
| Flow rate LPM | 13.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Solenoid Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 82 cm3/min (5 in3/min) max @ 210 bar |
| Model Code 1 | SV2-8-4-0-00 |
| Operating temperature | -40 C to 100 C (-40 to 212 F) |
| Operation | Electrically operated |
| Override type | None |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 1.640 |
| Product height mm | 41.656 |
| Product length in | 4.150 |
| Product length mm | 105.410 |
| Product width in | 1.250 |
| Product width mm | 31.750 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | 3-Way 2-Position, Spool |
