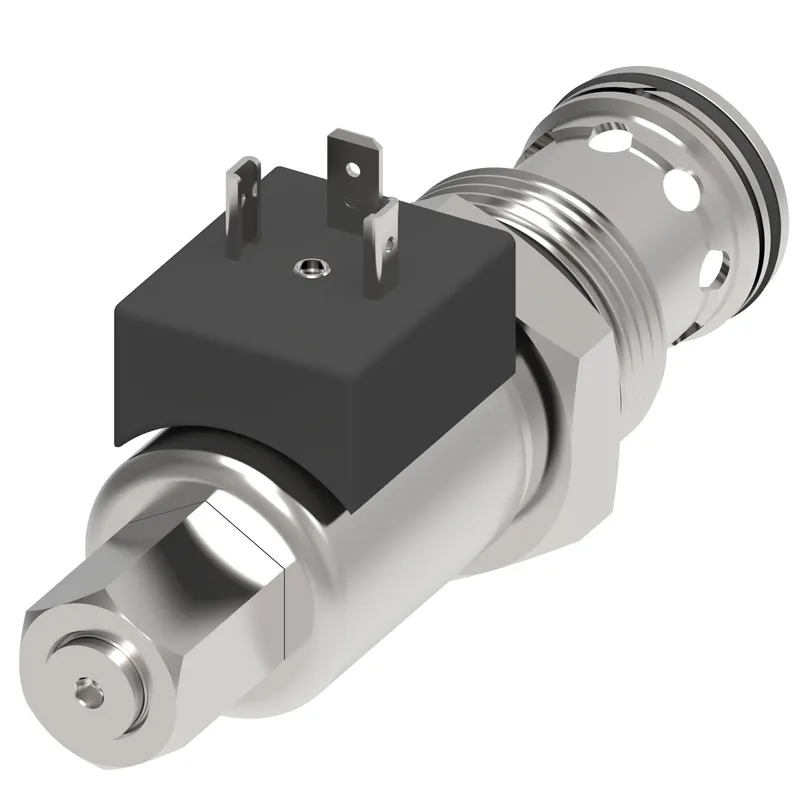

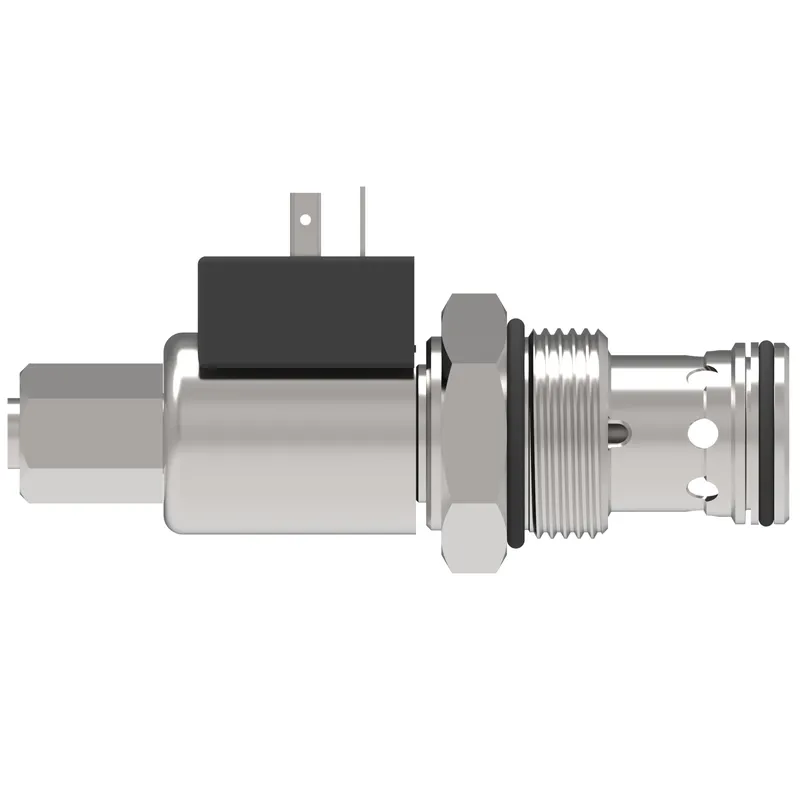

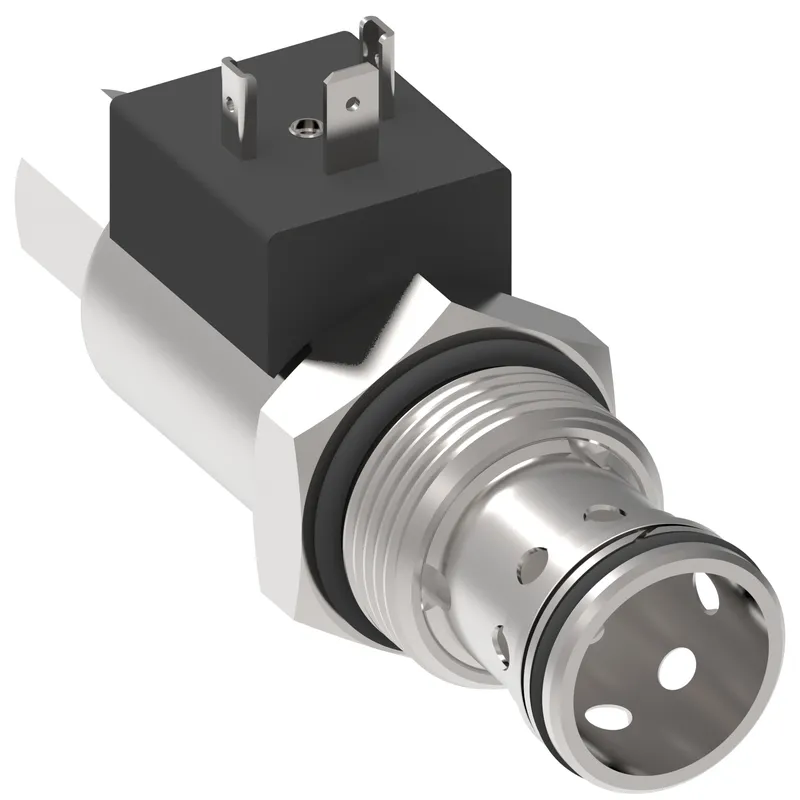

Danfoss 02-160627

ERV1-16-26.00-0-24DG, ERV1-16-26.00-0-24D-G

MPN: 02-160627
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-160627?

Danfoss ERV1-16-26.00-0-24DG, ERV1-16-26.00-0-24D-G, manufacturer part number 02-160627. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-16-2
Coil series	J Series
Coil termination	DIN43650-A
Diode	No
Factory set pressure BAR	179.140
Factory set pressure PSI	2605.00
Flow rate GPM	35.00
Flow rate LPM	132.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Proportional Pressure Relief
Housing	No
Installation type	Screw-in Cartridge
Minimum working pressure BAR	4.00
Minimum working pressure PSI	51.00
Model Code 1	ERV1-16-26.00-0-24D-G
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Elecronically Proportionally Controlled
Override type	None
Port size	None
Port type	Cartridge only
Pressure rating BAR	210.00
Pressure rating PSI	3053.00
Product height in	1.530
Product height mm	38.862
Product length in	4.850
Product length mm	123.190
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
Torque into aluminium cavity	108-122 Nm
Torque into steel cavity	136-149 Nm
Voltage	24 V
Voltage type	DC
Working pressure max BAR	210.00
Working pressure max PSI	3000.00

02-160627: frequently asked questions

When can 02-160627 be shipped?

02-160627 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-160627 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-160627 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-160627, subject to availability and destination.
