What is the Danfoss 02-157670?

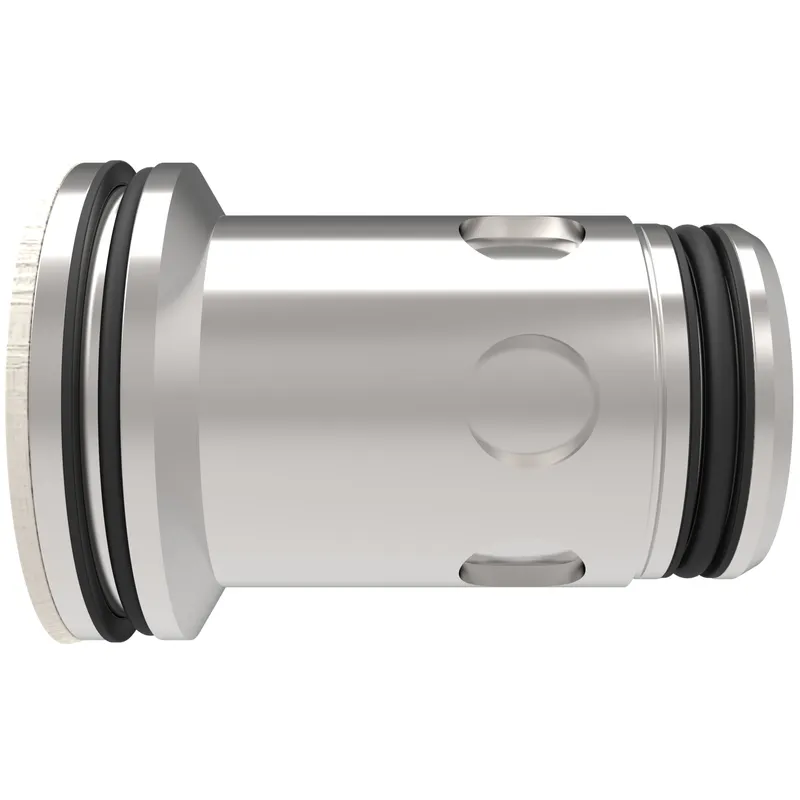

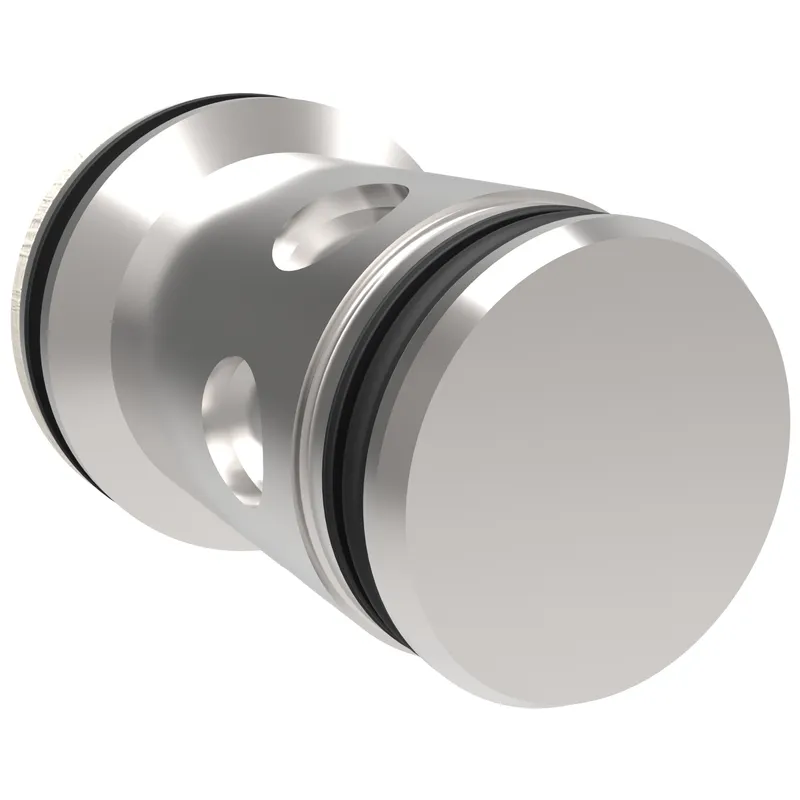

Danfoss CVI 25 HFV 20 A 43 10, CVI25HFV20A4310, manufacturer part number 02-157670. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	405
Flow rate USGPM	107.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:2
Insert type	Directional
Interface	No
Leakage	Standard
Model Code 1	CVI25HFV20A4310
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.360
Product height mm	59.944
Product length in	3.340
Product length mm	84.836
Product width in	2.360
Product width mm	59.944
Seal material	Buna-N
Size	NG 25
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	Yes
Valvistor type	Proportional Throttle Valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
