Danfoss 02-157433

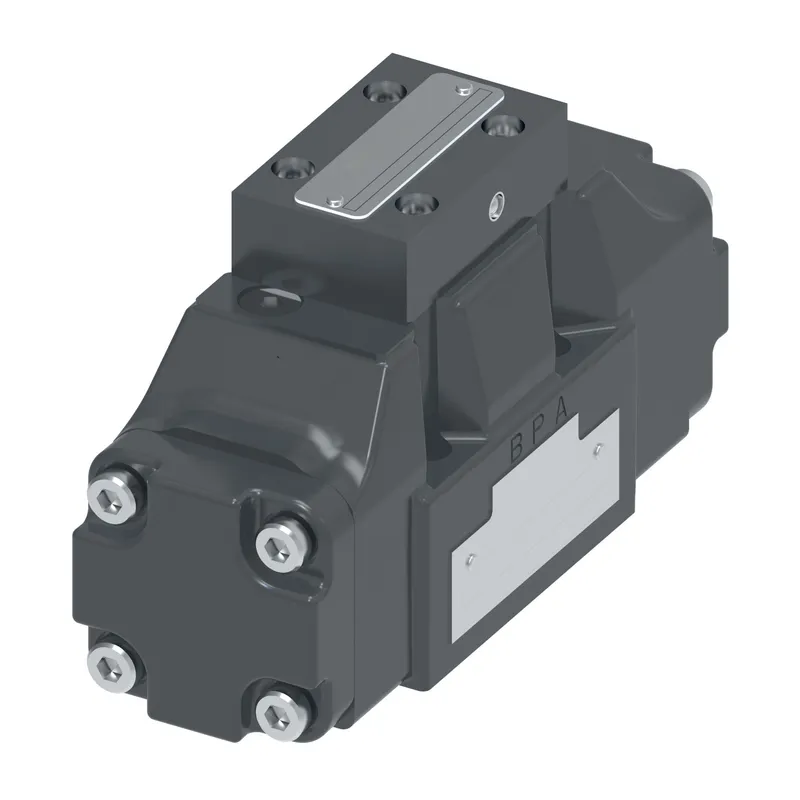

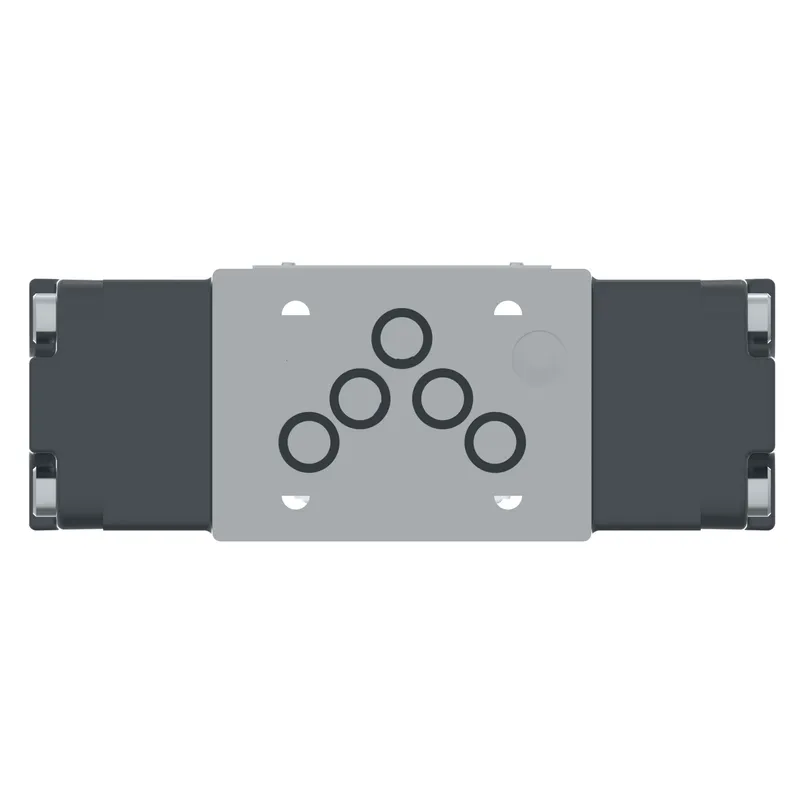

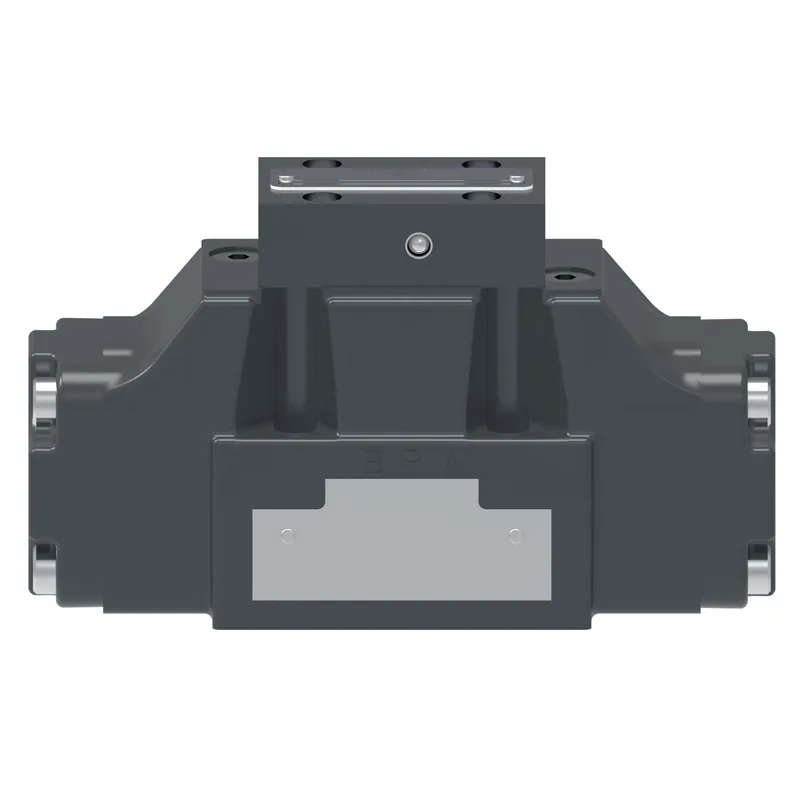

KDG3V 5 33C80N E 10 EN55, KDG3V533C80NE10EN55

MPN: 02-157433
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-157433?

Danfoss KDG3V 5 33C80N E 10 EN55, KDG3V533C80NE10EN55, manufacturer part number 02-157433. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	80.00
A Port flow USGPM	21.00
Actuation Type	Hydraulic pilot operated
B Port flow LPM	80.00
B Port flow USGPM	21.00
Brand	Vickers by Danfoss
Build orientation	None
Build type	Spring centered
Coil voltage	None
Command input	None
Communication protocol	None
Design Series	10 Series
Electrical Connection	None
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KDG3V533C80NE10EN55
On board electronics	No
Performance	Standard
Product height in	4.300
Product height mm	109.220
Product length in	8.500
Product length mm	215.900
Product width in	2.770
Product width mm	70.358
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	No pilot or reducer
Spool Type	Bleed A and B to T
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	70
Tank port rating PSI	1000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
