Danfoss 02-156893

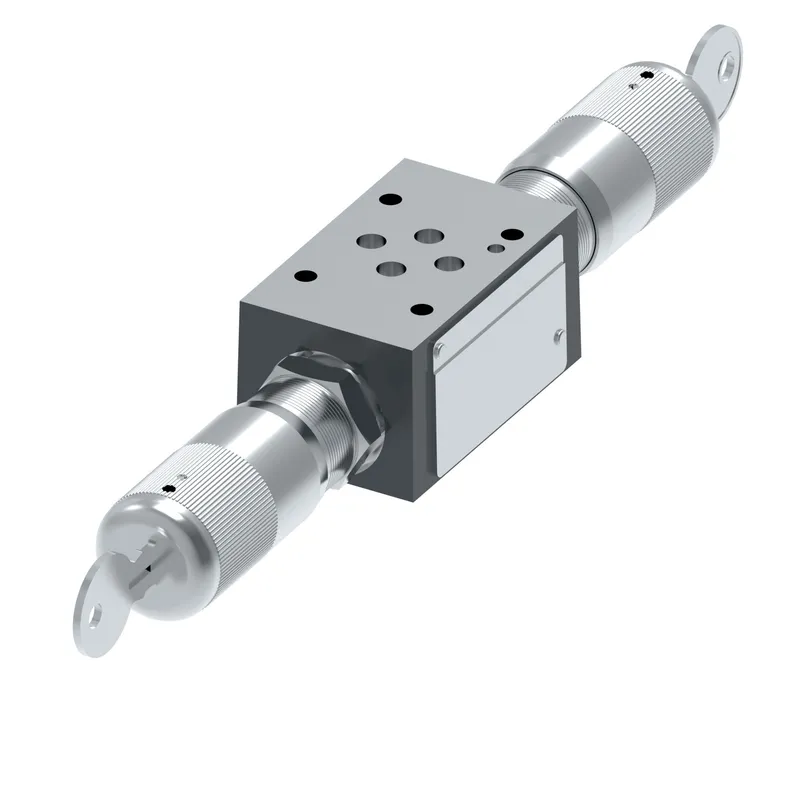

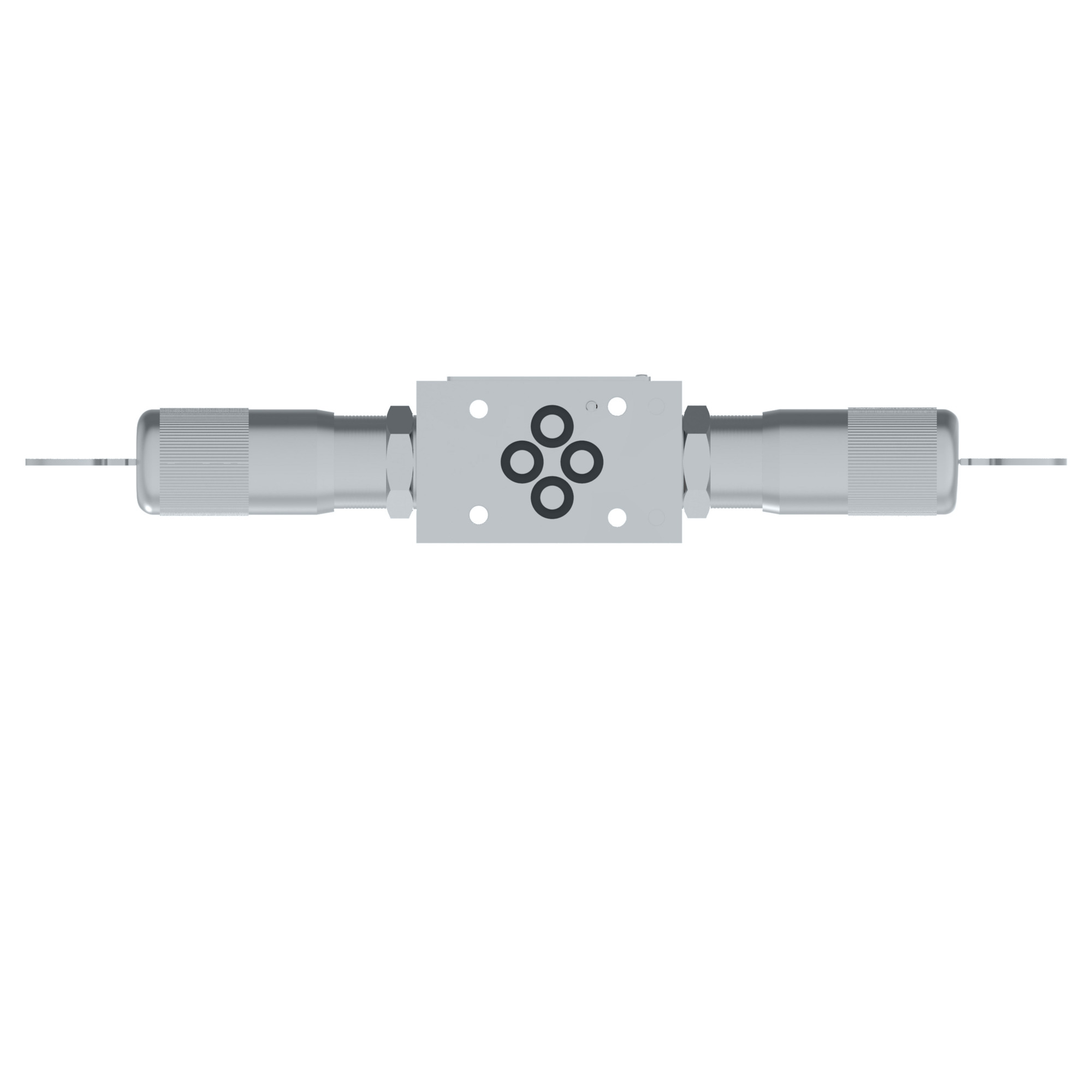

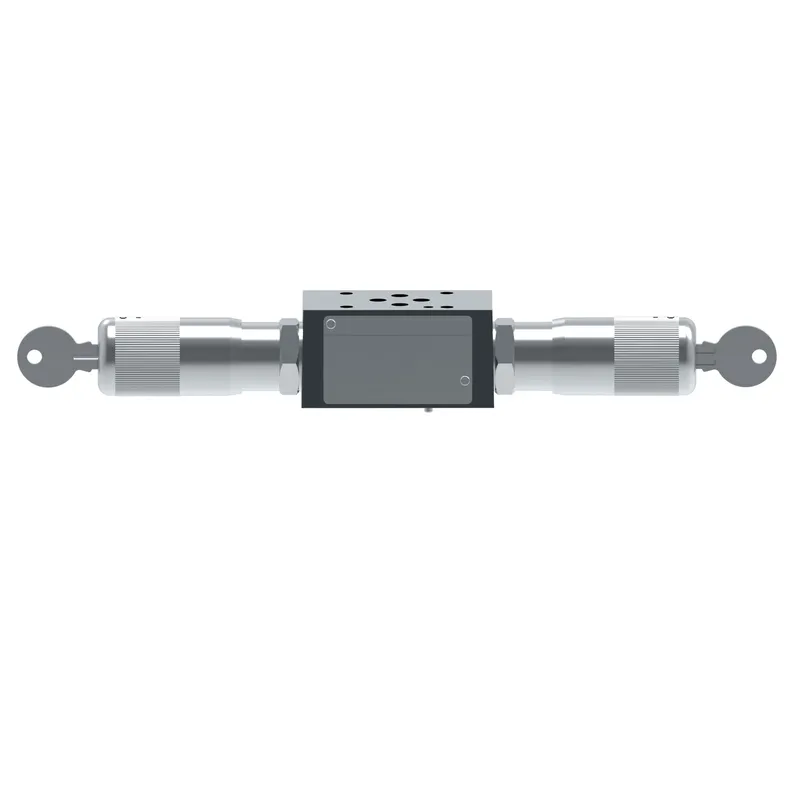

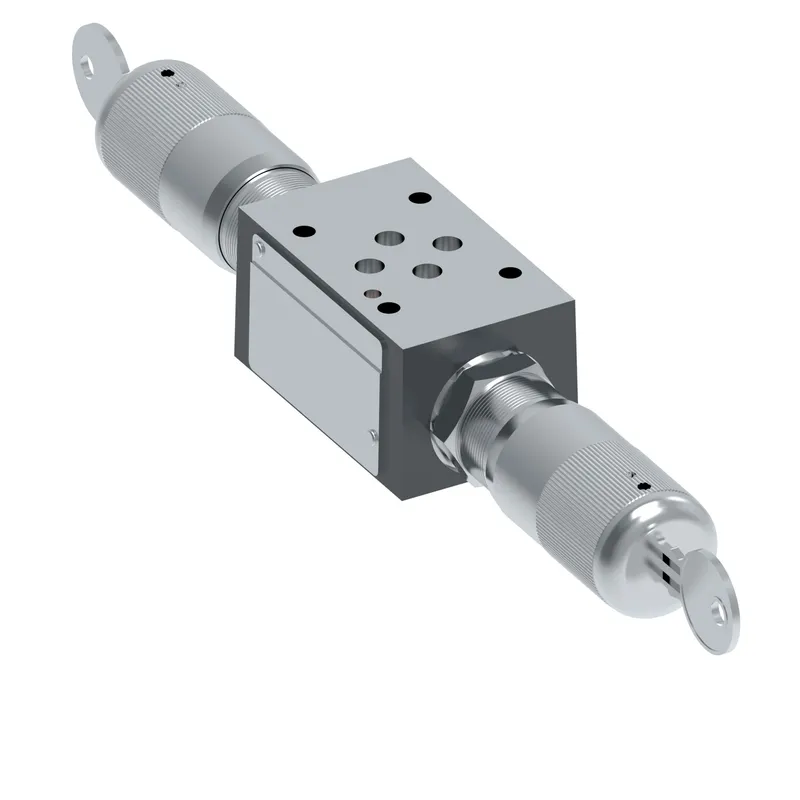

DGMFN 3 Y A2K B2K 41, DGMFN3YA2KB2K41

MPN: 02-156893
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156893?

Danfoss DGMFN 3 Y A2K B2K 41, DGMFN3YA2KB2K41, manufacturer part number 02-156893. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Micrometer with keylock
Brand	Vickers by Danfoss
Control type 1	Standard control
Control type 2	Standard control
Design Series	41 Series
Direction of flow	Meter-out control
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Location control function 1	Line A
Location control function 2	Line B
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN3YA2KB2K41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	14.000
Product length mm	355.600
Product width in	1.870
Product width mm	47.498
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
