Danfoss 02-156859

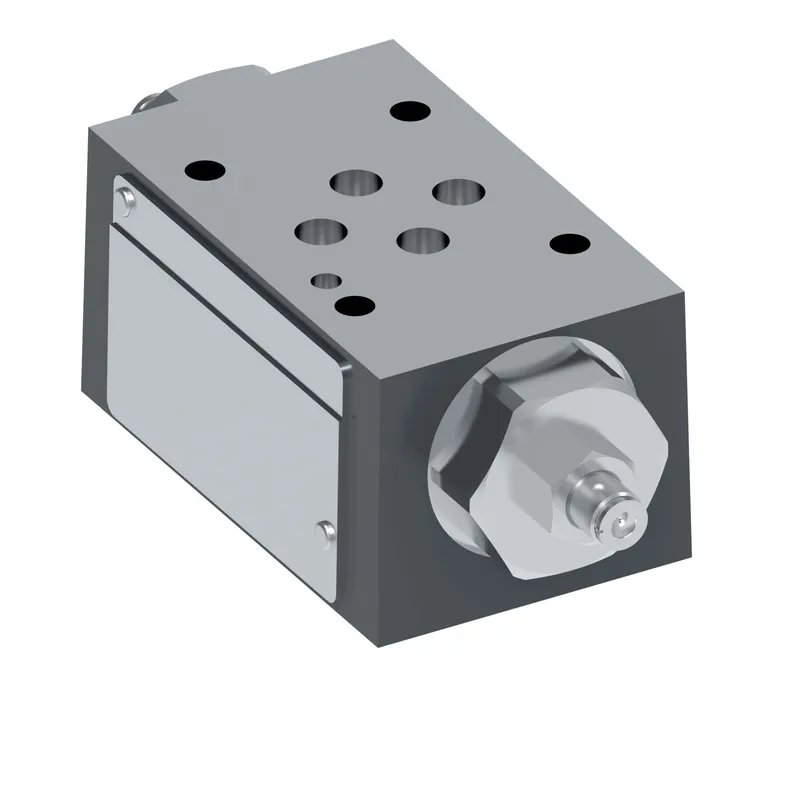

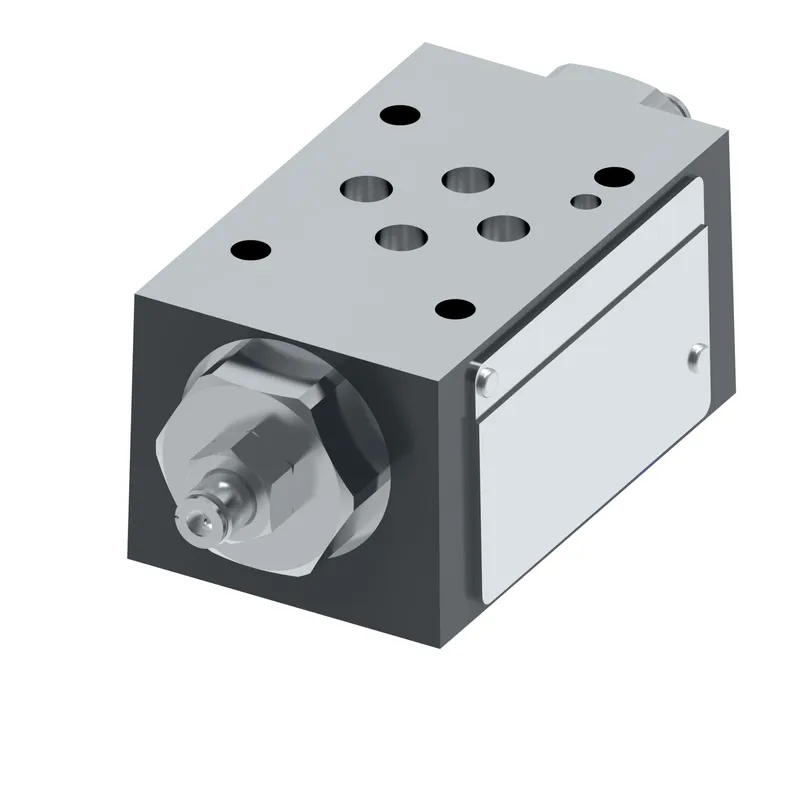

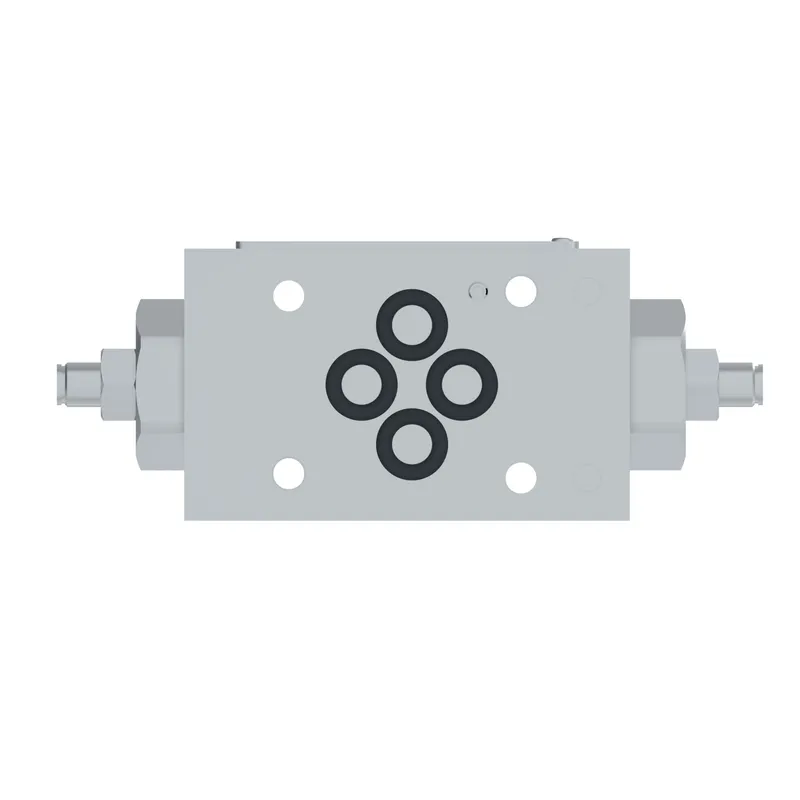

DGMC 2 PT FW 10, DGMC2PTFW10

MPN: 02-156859
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156859?

Danfoss DGMC 2 PT FW 10, DGMC2PTFW10, manufacturer part number 02-156859. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Discharge 1	Discharge into T
First function	Pressure limited in P
Flow rate upto LPM	30
Flow rate upto USGPM	7.9
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-02
Maximum pressure upto bar	250
Maximum pressure upto psi	3600
Model Code 1	DGMC2PTFW10
Performance	Standard
Pressure adjustment range	70-160 bar (1000-2300 psi)
Product height in	1.180
Product height mm	29.972
Product length in	5.220
Product length mm	132.588
Product width in	1.450
Product width mm	36.83
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Single relief valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
