Danfoss 02-156373

CVI 25 ZD105 M 10, CVI25ZD105M10

MPN: 02-156373
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156373?

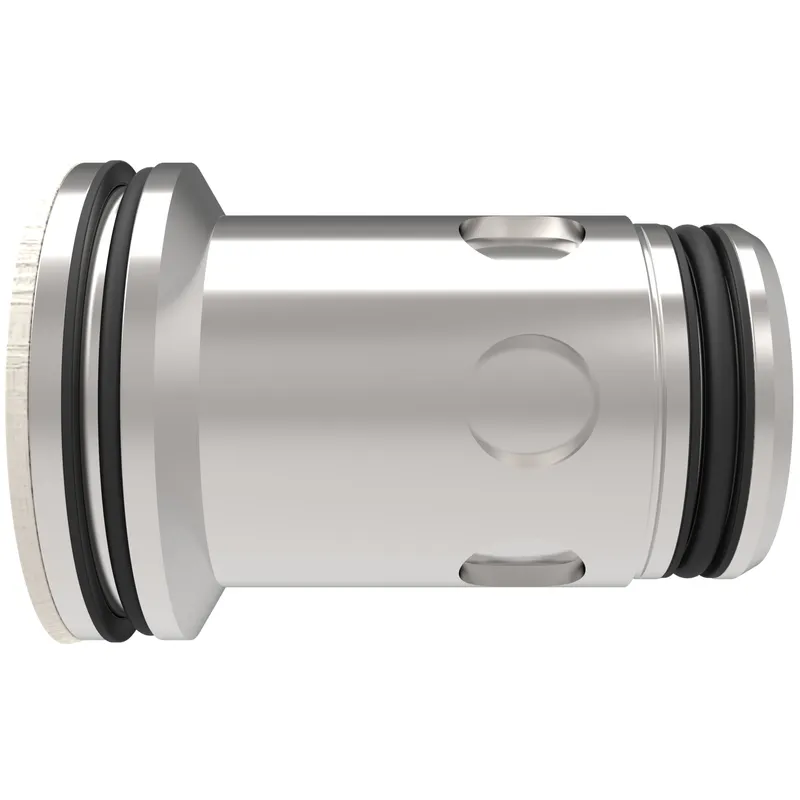

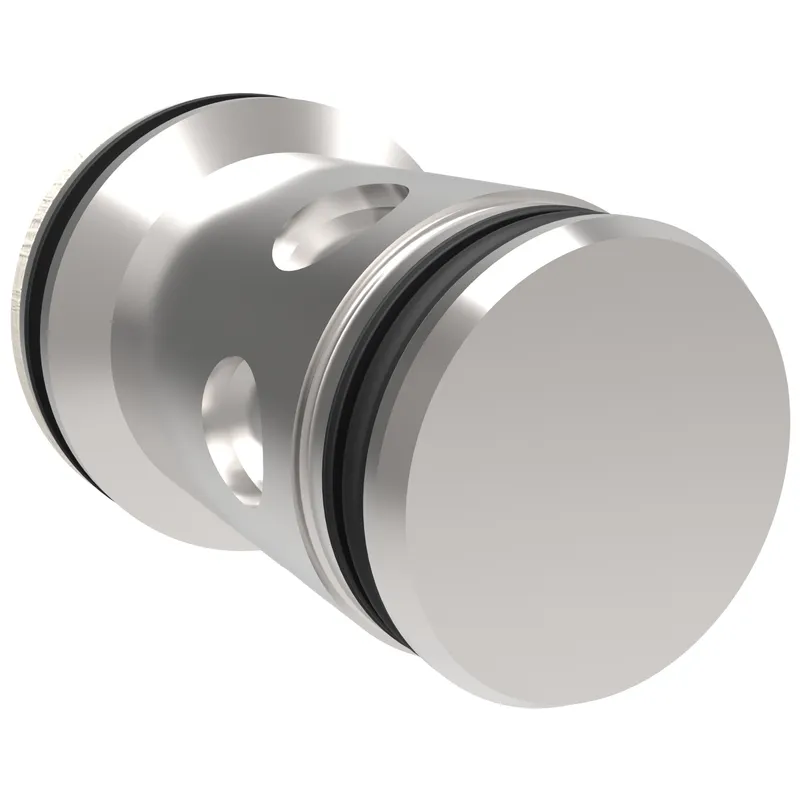

Danfoss CVI 25 ZD105 M 10, CVI25ZD105M10, manufacturer part number 02-156373. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	550
Flow rate USGPM	145.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1.05
Insert type	Dynamic, Zero Pilot Leakage
Interface	No
Leakage	Zero leakage
Model Code 1	CVI25ZD105M10
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.770
Product height mm	44.958
Product length in	2.440
Product length mm	61.976
Product width in	1.770
Product width mm	44.958
Seal material	Buna-N
Size	NG 25
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
