Danfoss 02-156295

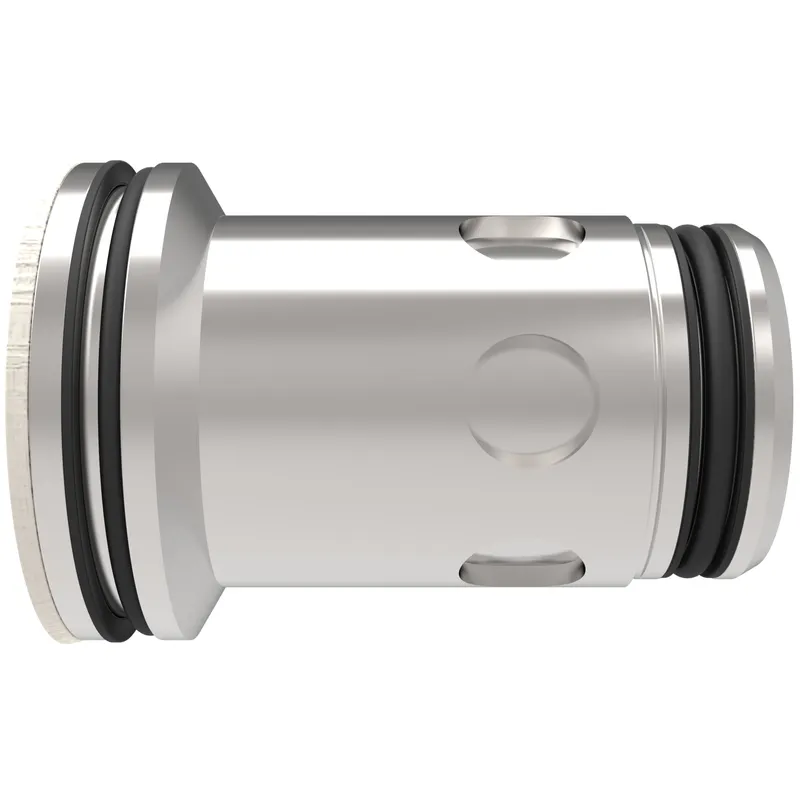

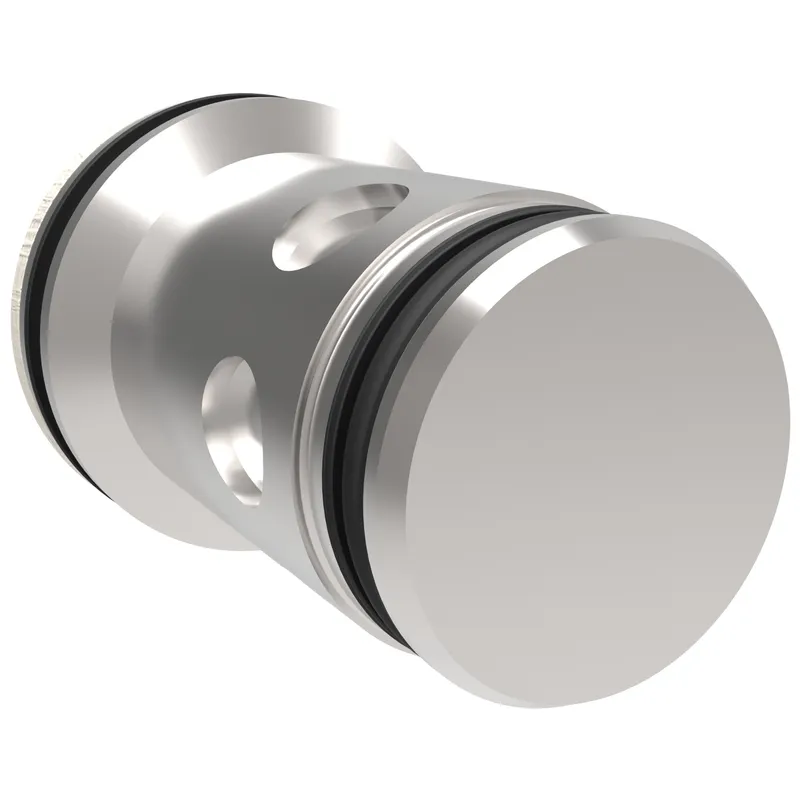

CVI-40-ZDN105-H-10, CVI40ZDN105H10

MPN: 02-156295
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156295?

Danfoss CVI-40-ZDN105-H-10, CVI40ZDN105H10, manufacturer part number 02-156295. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	1200
Flow rate USGPM	317.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1.05
Insert type	Dynamic, fast response, low hysteresis
Interface	No
Leakage	Zero leakage
Model Code 1	CVI40ZDN105H10
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.950
Product height mm	74.930
Product length in	3.540
Product length mm	89.916
Product width in	2.950
Product width mm	74.93
Seal material	Buna-N
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
