Danfoss 02-156243

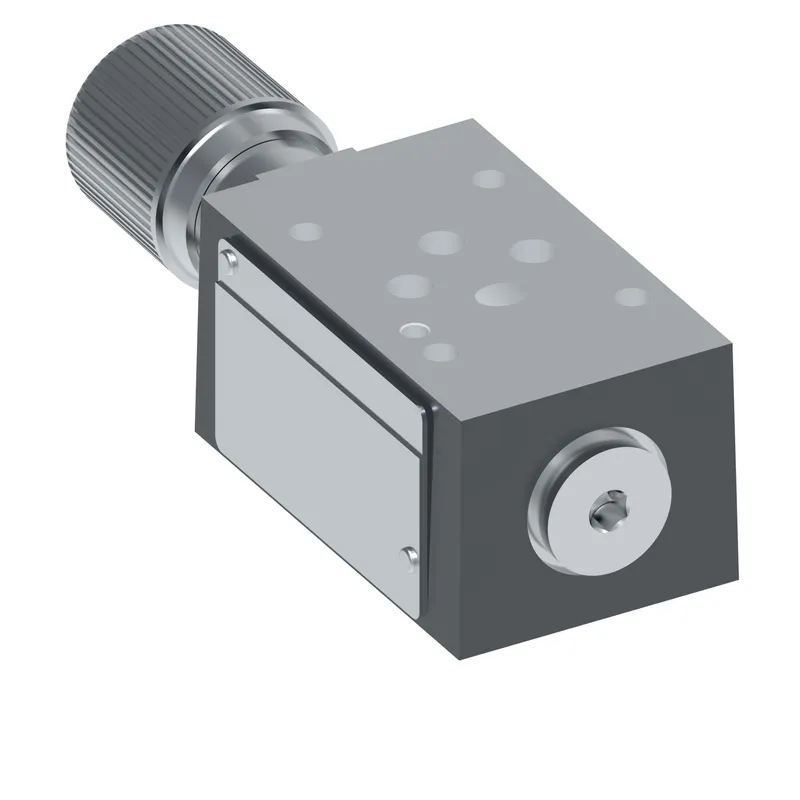

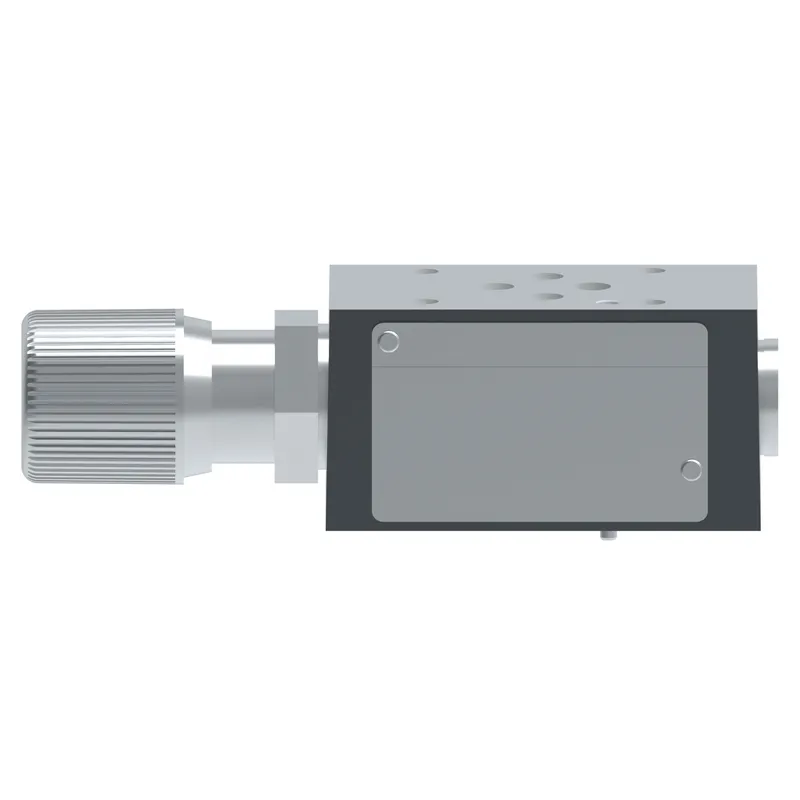

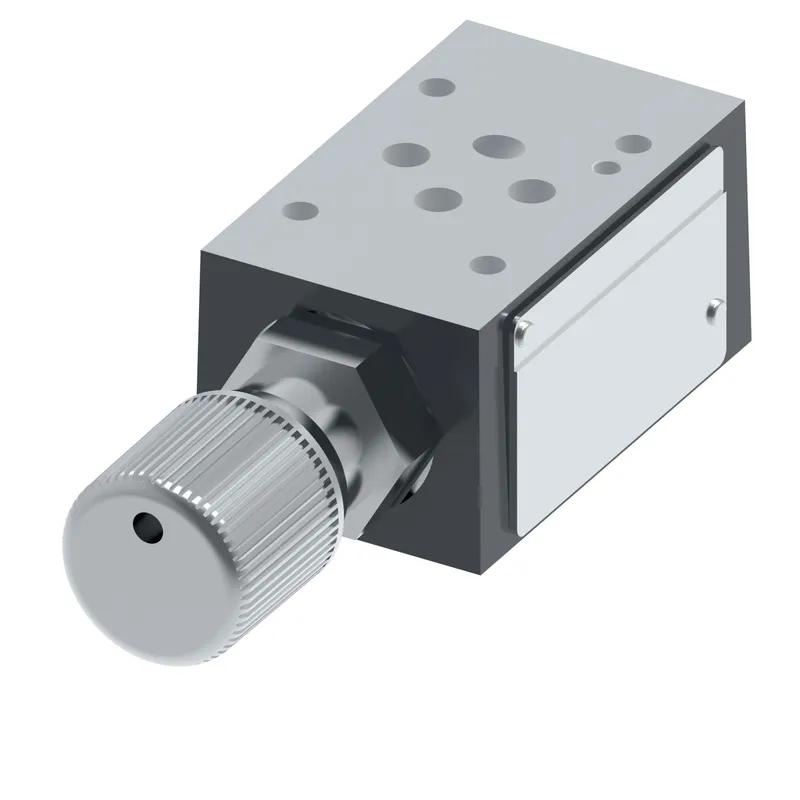

DGMC 3 PT CH S 41, DGMC3PTCHS41

MPN: 02-156243
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156243?

Danfoss DGMC 3 PT CH S 41, DGMC3PTCHS41, manufacturer part number 02-156243. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Handknob
Brand	Vickers by Danfoss
Design Series	41 Series
Discharge 1	Discharge into T
First function	Pressure limited in P
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	SAE 4 (7/16"-20 UNF-2B)
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMC3PTCHS41
Performance	Standard
Pressure adjustment range	10-200 bar (145-2900 psi)
Product height in	1.570
Product height mm	39.878
Product length in	6.500
Product length mm	165.100
Product width in	1.870
Product width mm	47.498
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Single relief valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
