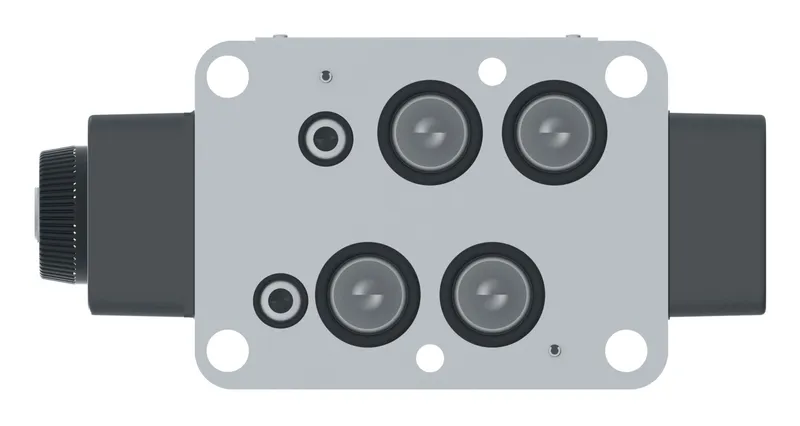

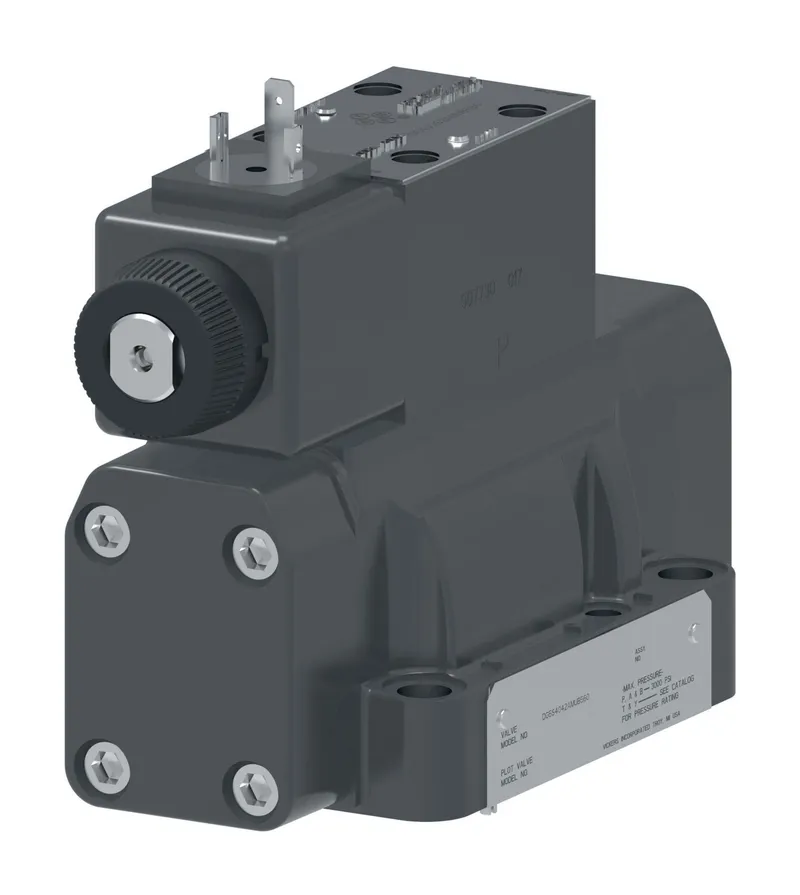

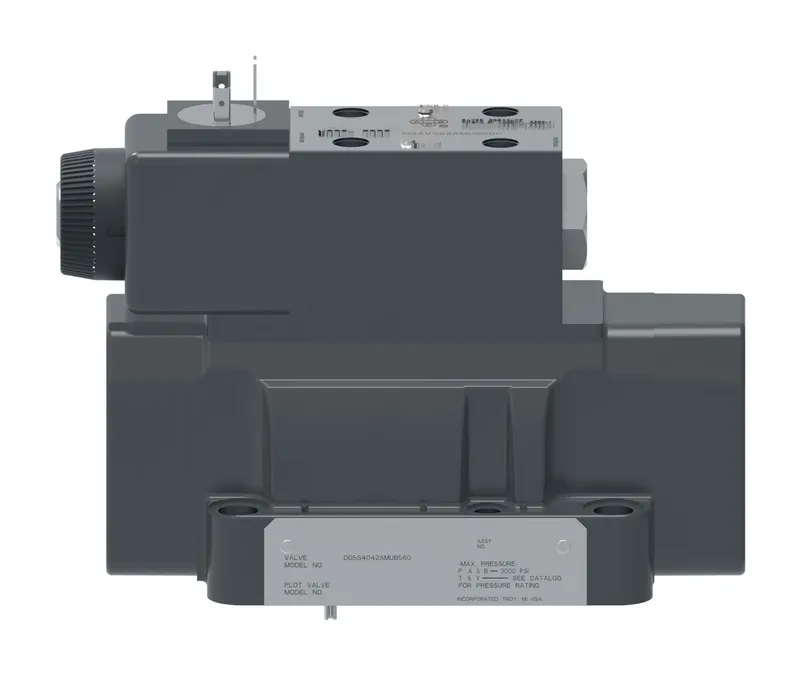

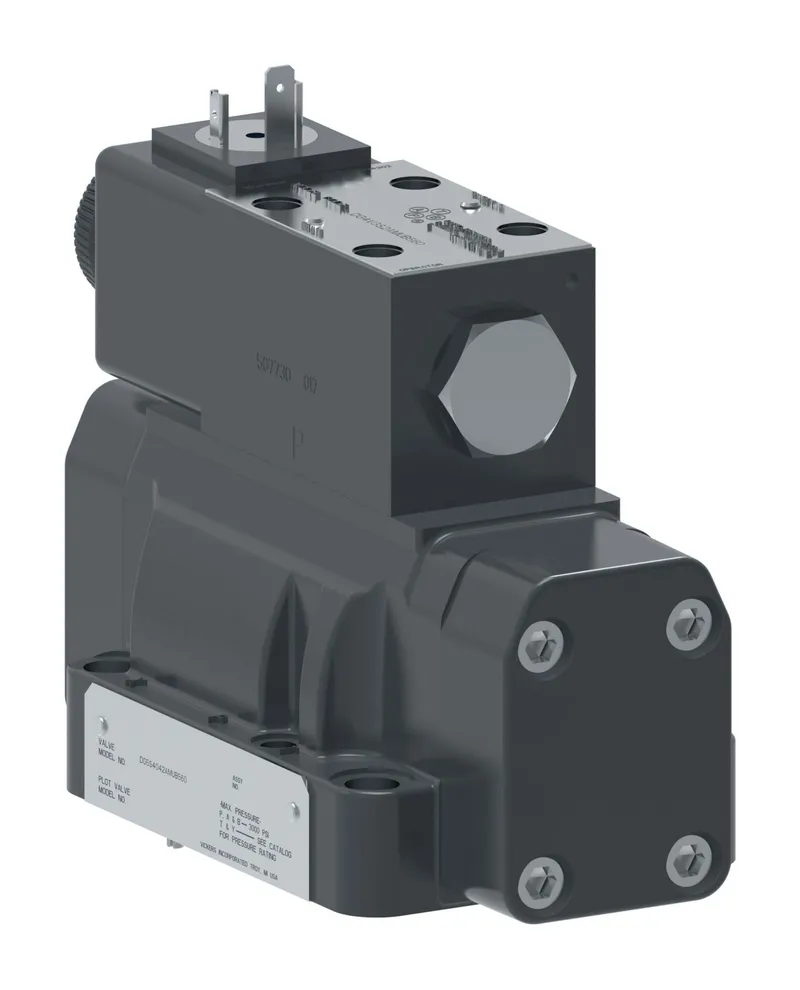

Danfoss 02-155617

DG5S4-02-2A-M-U-B5-20, DG5S4022AMUB520

MPN: 02-155617
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-155617?

Danfoss DG5S4-02-2A-M-U-B5-20, DG5S4022AMUB520, manufacturer part number 02-155617. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	30.0
Flow rate upto LPM	115.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	External
Interface	ISO4401-05
Manual override	Plain
Model Code 1	DG5S4022AMUB520
Performance	Standard performance
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	6.170
Product height mm	156.718
Product length in	7.870
Product length mm	199.898
Product width in	2.630
Product width mm	66.802
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset to A
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-18
Working temp min F	0
